Module Class Reference

Base class for all modules. More...

#include <Module.h>

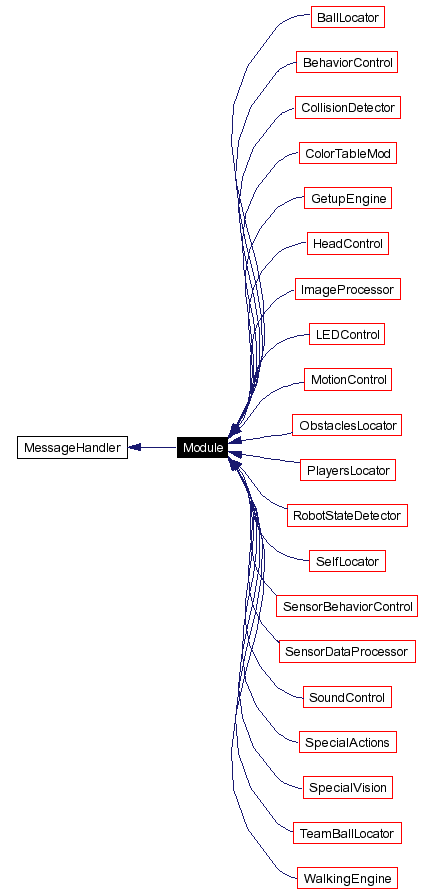

Inheritance diagram for Module:

Inheritance graph
[legend]
Collaboration diagram for Module:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual void execute ()=0
 executes the module

virtual bool handleMessage (InMessage &message)
 Called from a MessageQueue to distribute messages.

virtual ~Module ()

Detailed Description

Base class for all modules.

Author:
Matthias Jüngel

Martin Lötzsch

Definition at line 23 of file Module.h.


Constructor & Destructor Documentation

virtual Module::~Module  )  [inline, virtual]


Definition at line 39 of file Module.h.


Member Function Documentation

virtual void Module::execute  )  [pure virtual]


executes the module

Implemented in GT2004BallLocator, GT2004BehaviorControl, Xabsl2BehaviorControlAgentInterface, GT2004CollisionDetector, ColorTable32KMod, ColorTable64Mod, ColorTableTSLMod, GetupEngine, GT2004HeadControl, Xabsl2HeadControlAgentInterface, CheckerboardDetector, GT2004ImageProcessor, RasterImageProcessor, GT2004LEDControl, DebugMotionControl, GT2004MotionControl, GT2004ObstaclesLocator, GT2004PlayersLocator, GT2004RobotStateDetector, GT2004SelfLocator, NoOdometrySelfLocator, OdometrySelfLocator, SpecialPerceptSelfLocator, BB2004Calibrator, ImageSaver, MotionRecognition, ObstacleAvoiderOnGreenField, ObstacleAvoiderOnGreenFieldERS7, SimpleMotionRecognition, GT2004SensorDataProcessor, GT2004SoundControl, SpecialActions, AutoShutter, BarCodeReader, ChallengeSpecialVision, DefaultSpecialVision, GT2004TeamBallLocator, and WalkingEngine.

Referenced by ModuleSelector::execute(), and Cognition::main().

virtual bool Module::handleMessage InMessage message  )  [inline, virtual]


Called from a MessageQueue to distribute messages.

Use message.getMessageID to decide if the message is relavant for the MesssageHandler derivate. Use message.bin, message.text or message.config as In streams to get the data from.

Parameters:
message The message that can be read.
Returns:
true if the message was read (handled).

Implements MessageHandler.

Reimplemented in GT2004BallLocator, GT2004BehaviorControl, Xabsl2BehaviorControl, Xabsl2BehaviorControlAgentInterface, GT2004HeadControl, Xabsl2HeadControl, Xabsl2HeadControlAgentInterface, GT2004ImageProcessor, RasterImageProcessor, DebugMotionControl, GT2004MotionControl, GT2004ObstaclesLocator, GT2004SelfLocator, NoOdometrySelfLocator, BB2004Calibrator, ImageSaver, MotionRecognition, ObstacleAvoiderOnGreenField, ObstacleAvoiderOnGreenFieldERS7, SimpleMotionRecognition, GT2003MotionNetSpecialActions, BB2004InvKinWalkingEngine, GT2004WalkingEngine, InvKinWalkingEngine, ParamInvKinWalkingEngine, ParamRearOnlyInvKinWalkingEngine, MSH2004InvKinWalkingEngine, and WalkingEngineSelector.

Definition at line 37 of file Module.h.

Referenced by ModuleSelector::handleMessage(), and GT2004MotionControl::handleMessage().


The documentation for this class was generated from the following file:
