Xabsl2BehaviorControl Class Reference

Base class for all BehaviorControl solutions that use a Xabsl2Engine. More...

#include <Xabsl2BehaviorControl.h>

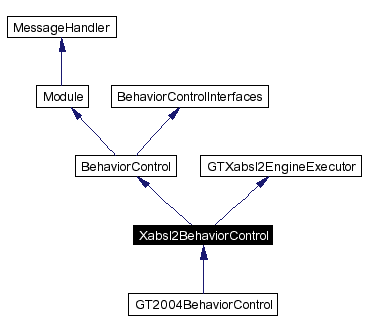

Inheritance diagram for Xabsl2BehaviorControl:

Inheritance graph
[legend]
Collaboration diagram for Xabsl2BehaviorControl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Xabsl2BehaviorControl (const BehaviorControlInterfaces &interfaces, SolutionRequest::xabsl2EngineID id)
 Constructor.

 ~Xabsl2BehaviorControl ()
 destructor

virtual bool handleMessage (InMessage &message)
 Is called for every incoming debug message.


Protected Member Functions

virtual void executeIfEngineCouldNotBeCreated ()
 Is called if the engine could not be created.

virtual void printGeneratedMainActionToString (char *buf)
 Prints the main action that was generated by the execution of the engine to a string.


Detailed Description

Base class for all BehaviorControl solutions that use a Xabsl2Engine.

Author:
Matthias Jüngel

Martin Lötzsch

Definition at line 25 of file Xabsl2BehaviorControl.h.


Constructor & Destructor Documentation

Xabsl2BehaviorControl::Xabsl2BehaviorControl const BehaviorControlInterfaces interfaces,
SolutionRequest::xabsl2EngineID  id


Constructor.

Parameters:
interfaces The paramters of the BehaviorControl module.
id The id of the Xabsl2Engine.

Definition at line 16 of file Xabsl2BehaviorControl.cpp.

Xabsl2BehaviorControl::~Xabsl2BehaviorControl  )  [inline]


destructor

Definition at line 37 of file Xabsl2BehaviorControl.h.


Member Function Documentation

bool Xabsl2BehaviorControl::handleMessage InMessage message  )  [virtual]


Is called for every incoming debug message.

Parameters:
message An interface to read the message from the queue
Returns:
if the messag was read

Reimplemented from GTXabsl2EngineExecutor.

Reimplemented in GT2004BehaviorControl.

Definition at line 35 of file Xabsl2BehaviorControl.cpp.

References GTXabsl2EngineExecutor::handleMessage().

Referenced by GT2004BehaviorControl::handleMessage().

Here is the call graph for this function:

void Xabsl2BehaviorControl::executeIfEngineCouldNotBeCreated  )  [protected, virtual]


Is called if the engine could not be created.

Implements GTXabsl2EngineExecutor.

Definition at line 24 of file Xabsl2BehaviorControl.cpp.

References MotionRequest::motionType, MotionRequest::specialActionRequest, and SpecialActionRequest::specialActionType.

void Xabsl2BehaviorControl::printGeneratedMainActionToString char *  buf  )  [protected, virtual]


Prints the main action that was generated by the execution of the engine to a string.

Parameters:
buf the string where to print the action

Implements GTXabsl2EngineExecutor.

Definition at line 30 of file Xabsl2BehaviorControl.cpp.

References MotionRequest::printOut().

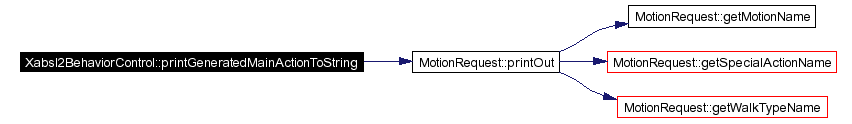

Here is the call graph for this function:


The documentation for this class was generated from the following files:
