GTXabsl2EngineExecutor Class Reference

Executes an Xabsl2Engine in the GT - architecture. More...

#include <GTXabsl2EngineExecutor.h>

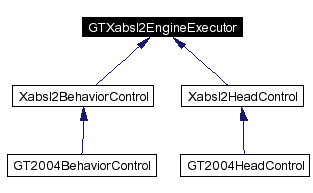

Inheritance diagram for GTXabsl2EngineExecutor:

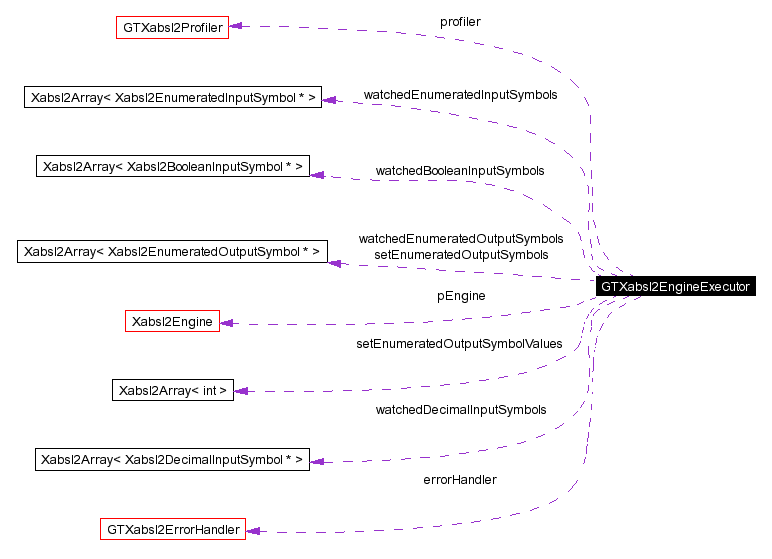

[legend]Collaboration diagram for GTXabsl2EngineExecutor:

[legend]List of all members.

Debug interface to the Xabsl2 Dialog
enum	Xabsl2DebugMode { executeRootOption, executeOption, executeBasicBehavior }
	The requested debug mode. More...
void	sendDebugMessage ()
	Sends a debug message to the Xabsl2 dialog depending on the last request.
enum GTXabsl2EngineExecutor::Xabsl2DebugMode	debugMode
	The requested debug mode.
Xabsl2Array< Xabsl2DecimalInputSymbol * >	watchedDecimalInputSymbols
	The decimal input symbols that are watched by the Xabsl2 Dialog.
Xabsl2Array< Xabsl2BooleanInputSymbol * >	watchedBooleanInputSymbols
	The boolean input symbols that are watched by the Xabsl2 Dialog.
Xabsl2Array< Xabsl2EnumeratedInputSymbol * >	watchedEnumeratedInputSymbols
	The enumerated input symbols that are watched by the Xabsl2 Dialog.
Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >	watchedEnumeratedOutputSymbols
	The enumerated output symbols that are watched by the Xabsl2 Dialog.
Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >	setEnumeratedOutputSymbols
	The output symbols that are set from the Xabsl2 Dialog.
Xabsl2Array< int >	setEnumeratedOutputSymbolValues
	The values for the set output symbols.
Public Member Functions
	GTXabsl2EngineExecutor (SolutionRequest::xabsl2EngineID id, SolutionRequest::ModuleID module, const unsigned long &frameNumber)
	Constructor.
	~GTXabsl2EngineExecutor ()
	destructor
void	init (Xabsl2InputSource &input)
	Creates a new engine.
void	executeEngine ()
	Executes the engine.
virtual void	registerSymbolsAndBasicBehaviors ()=0
	Registers symbols and basic behaviors at the engine.
void	setSelectedAgent (const char *name)
	Sets the selected Agent.
virtual bool	handleMessage (InMessage &message)
	Is called for every incoming debug message.
Protected Member Functions
virtual void	executeIfEngineCouldNotBeCreated ()=0
	Is called if the engine could not be created.
virtual void	printGeneratedMainActionToString (char *buf)=0
	Prints the main action that was generated by the execution of the engine to a string.
Protected Attributes
Xabsl2Engine *	pEngine
	An engine that executes the XML formalized behaviors.
GTXabsl2ErrorHandler	errorHandler
	Is invoked when errors occur.
GTXabsl2Profiler	profiler
	The profiler.
Private Types
Private Attributes
SolutionRequest::xabsl2EngineID	id
	The id of the Xabsl2Engine derivate.
SolutionRequest::ModuleID	module
	The id of the module (not the solution) that embeds the engine.

---

Detailed Description

Executes an Xabsl2Engine in the GT - architecture.

Author:

Martin Lötzsch

Definition at line 122 of file GTXabsl2EngineExecutor.h.

---

Member Enumeration Documentation

enum GTXabsl2EngineExecutor::Xabsl2DebugMode [private]

The requested debug mode. Enumeration values: executeRootOption  executeOption  executeBasicBehavior  Definition at line 196 of file GTXabsl2EngineExecutor.h.

---

Constructor & Destructor Documentation

GTXabsl2EngineExecutor::GTXabsl2EngineExecutor (  SolutionRequest::xabsl2EngineID  id, SolutionRequest::ModuleID  module, const unsigned long &  frameNumber )

Constructor. Parameters: id  The id of the Xabsl2Engine derivate. module  The id of the module (not the solution) that embeds the engine frameNumber  A reference to a variable containing the current frame number Definition at line 14 of file GTXabsl2EngineExecutor.cpp.

GTXabsl2EngineExecutor::~GTXabsl2EngineExecutor (   )

destructor Definition at line 22 of file GTXabsl2EngineExecutor.cpp. References pEngine.

---

Member Function Documentation

void GTXabsl2EngineExecutor::init (  Xabsl2InputSource &  input  )

Creates a new engine. Parameters: input  An input source to read to intermediate code from Definition at line 27 of file GTXabsl2EngineExecutor.cpp. References Xabsl2Array< int >::clear(), Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::clear(), Xabsl2Array< Xabsl2EnumeratedInputSymbol * >::clear(), Xabsl2Array< Xabsl2DecimalInputSymbol * >::clear(), Xabsl2Array< Xabsl2BooleanInputSymbol * >::clear(), Xabsl2Engine::createOptionGraph(), debugMode, errorHandler, Xabsl2ErrorHandler::errorsOccurred, executeRootOption, SystemCall::getCurrentSystemTime(), SystemCall::getFreeMem(), GTXabsl2Profiler::init(), Xabsl2ErrorHandler::message(), pEngine, profiler, GTXabsl2Profiler::registerSymbols(), registerSymbolsAndBasicBehaviors(), setEnumeratedOutputSymbols, setEnumeratedOutputSymbolValues, watchedBooleanInputSymbols, watchedDecimalInputSymbols, watchedEnumeratedInputSymbols, and watchedEnumeratedOutputSymbols. Referenced by GT2004BehaviorControl::GT2004BehaviorControl(), GT2004HeadControl::GT2004HeadControl(), and handleMessage().

Here is the call graph for this function:

void GTXabsl2EngineExecutor::executeEngine (   )

Executes the engine. Definition at line 61 of file GTXabsl2EngineExecutor.cpp. References ASSERT, debugMode, GTXabsl2Profiler::doProfiling(), errorHandler, Xabsl2ErrorHandler::errorsOccurred, Xabsl2Engine::execute(), executeBasicBehavior, executeIfEngineCouldNotBeCreated(), executeOption, executeRootOption, Xabsl2Engine::executeSelectedBasicBehavior(), getDebugKeyTable(), Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::getSize(), DebugKeyTable::isActive(), module, pEngine, profiler, GTXabsl2Profiler::profilerCollectMode, GTXabsl2Profiler::profilerWriteMode, GTXabsl2Profiler::recordCollectedLogs(), GTXabsl2Profiler::recordCompleteLog(), sendDebugMessage(), setEnumeratedOutputSymbols, setEnumeratedOutputSymbolValues, Xabsl2Symbols::setOutputSymbols(), Xabsl2Engine::setRootOption(), and GTXabsl2Profiler::size(). Referenced by GT2004HeadControl::execute(), and GT2004BehaviorControl::execute().

Here is the call graph for this function:

virtual void GTXabsl2EngineExecutor::registerSymbolsAndBasicBehaviors (   )  [pure virtual]

Registers symbols and basic behaviors at the engine. Implemented in GT2004BehaviorControl, and GT2004HeadControl. Referenced by init().

void GTXabsl2EngineExecutor::setSelectedAgent (  const char *  name  )

Sets the selected Agent. If the last selected agent was different from the new one, the root option is changed depending on the new agent. Parameters: name  The name of the agent Definition at line 407 of file GTXabsl2EngineExecutor.cpp. References pEngine, and Xabsl2Engine::setSelectedAgent().

Here is the call graph for this function:

bool GTXabsl2EngineExecutor::handleMessage (  InMessage &  message  )  [virtual]

Is called for every incoming debug message. Parameters: message  An interface to read the message from the queue Returns: if the messag was read Reimplemented in GT2004BehaviorControl, Xabsl2BehaviorControl, GT2004HeadControl, and Xabsl2HeadControl. Definition at line 251 of file GTXabsl2EngineExecutor.cpp. References Xabsl2Array< int >::append(), Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::append(), Xabsl2Array< Xabsl2EnumeratedInputSymbol * >::append(), Xabsl2Array< Xabsl2BooleanInputSymbol * >::append(), Xabsl2Array< Xabsl2DecimalInputSymbol * >::append(), InMessage::bin, Xabsl2Array< int >::clear(), Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::clear(), Xabsl2Array< Xabsl2EnumeratedInputSymbol * >::clear(), Xabsl2Array< Xabsl2BooleanInputSymbol * >::clear(), Xabsl2Array< Xabsl2DecimalInputSymbol * >::clear(), InMessage::config, debugMode, Xabsl2EnumeratedOutputSymbol::enumElements, executeBasicBehavior, executeOption, executeRootOption, Xabsl2Array< Xabsl2EnumElement * >::exists(), Xabsl2Symbols::existsBooleanInputSymbol(), Xabsl2Symbols::existsDecimalInputSymbol(), Xabsl2Symbols::existsEnumeratedInputSymbol(), Xabsl2Symbols::existsEnumeratedOutputSymbol(), Xabsl2Symbols::getBooleanInputSymbol(), Xabsl2Symbols::getDecimalInputSymbol(), Xabsl2Array< Xabsl2EnumElement * >::getElement(), Xabsl2Symbols::getEnumeratedInputSymbol(), Xabsl2Symbols::getEnumeratedOutputSymbol(), InMessage::getMessageID(), idText, idXabsl2DebugRequest, idXabsl2IntermediateCode, init(), OUTPUT, pEngine, Xabsl2Engine::setBasicBehaviorParameter(), setEnumeratedOutputSymbols, setEnumeratedOutputSymbolValues, Xabsl2Engine::setOptionParameter(), Xabsl2Engine::setRootOption(), Xabsl2Engine::setSelectedBasicBehavior(), Xabsl2EnumElement::v, watchedBooleanInputSymbols, watchedDecimalInputSymbols, watchedEnumeratedInputSymbols, and watchedEnumeratedOutputSymbols. Referenced by Xabsl2HeadControl::handleMessage(), and Xabsl2BehaviorControl::handleMessage().

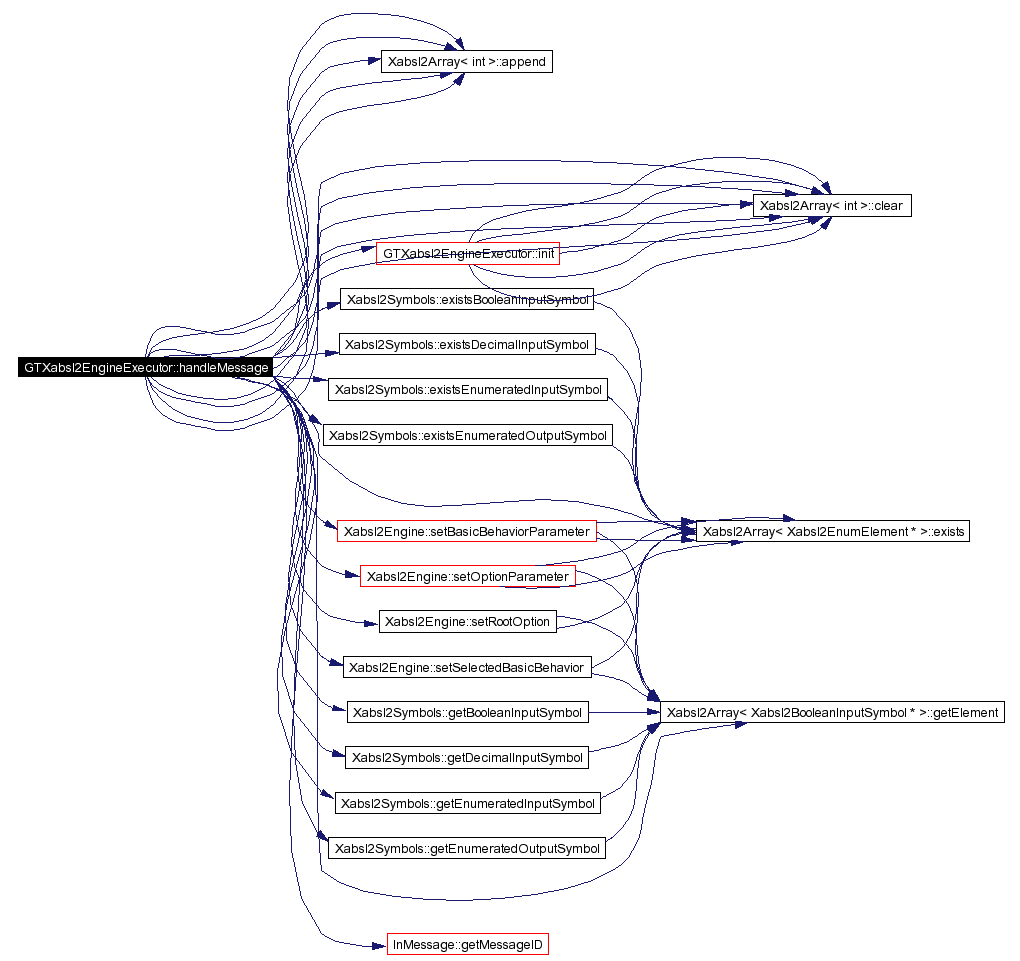

Here is the call graph for this function:

virtual void GTXabsl2EngineExecutor::executeIfEngineCouldNotBeCreated (   )  [protected, pure virtual]

Is called if the engine could not be created. Implemented in Xabsl2BehaviorControl, and Xabsl2HeadControl. Referenced by executeEngine().

virtual void GTXabsl2EngineExecutor::printGeneratedMainActionToString (  char *  buf  )  [protected, pure virtual]

Prints the main action that was generated by the execution of the engine to a string. Parameters: buf  the string where to print the action Implemented in Xabsl2BehaviorControl, and Xabsl2HeadControl. Referenced by sendDebugMessage().

void GTXabsl2EngineExecutor::sendDebugMessage (   )  [private]

Sends a debug message to the Xabsl2 dialog depending on the last request. Definition at line 124 of file GTXabsl2EngineExecutor.cpp. References Xabsl2Option::activeState, Xabsl2EnumeratedOutputSymbol::activeValue, OutMessage::bin, debugMode, Xabsl2EnumeratedOutputSymbol::enumElements, Xabsl2EnumeratedInputSymbol::enumElements, executeOption, executeRootOption, OutMessage::finishMessage(), getDebugOut(), Xabsl2Array< double & >::getName(), Xabsl2Array< double >::getName(), Xabsl2Engine::getRootOption(), Xabsl2Engine::getSelectedAgentName(), Xabsl2Engine::getSelectedBasicBehavior(), Xabsl2Array< double & >::getSize(), Xabsl2Array< double >::getSize(), Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::getSize(), Xabsl2Array< Xabsl2EnumElement * >::getSize(), Xabsl2Array< Xabsl2EnumeratedInputSymbol * >::getSize(), Xabsl2Array< Xabsl2BooleanInputSymbol * >::getSize(), Xabsl2Array< Xabsl2DecimalInputSymbol * >::getSize(), Xabsl2InputSymbol< int >::getValue(), idXabsl2DebugMessage, Xabsl2NamedItem::n, Xabsl2BasicBehavior::parameters, Xabsl2Option::parameters, pEngine, printGeneratedMainActionToString(), Xabsl2State::subsequentOption, Xabsl2Option::timeOfOptionExecution, Xabsl2State::timeOfStateExecution, watchedBooleanInputSymbols, watchedDecimalInputSymbols, watchedEnumeratedInputSymbols, and watchedEnumeratedOutputSymbols. Referenced by executeEngine().

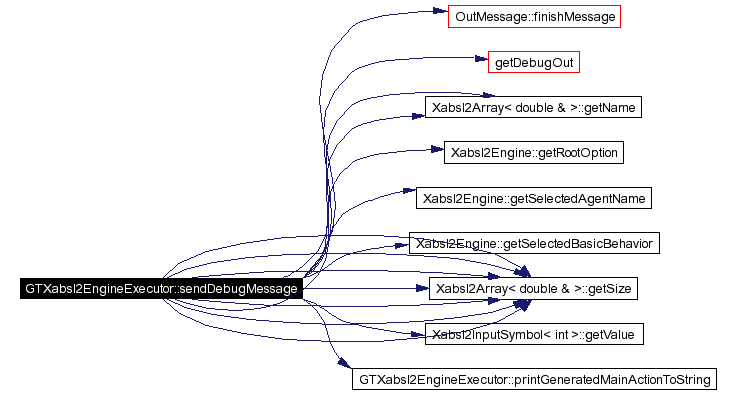

Here is the call graph for this function:

---

Member Data Documentation

Xabsl2Engine* GTXabsl2EngineExecutor::pEngine [protected]

An engine that executes the XML formalized behaviors. Definition at line 167 of file GTXabsl2EngineExecutor.h. Referenced by executeEngine(), handleMessage(), init(), sendDebugMessage(), setSelectedAgent(), and ~GTXabsl2EngineExecutor().

GTXabsl2ErrorHandler GTXabsl2EngineExecutor::errorHandler [protected]

Is invoked when errors occur. Definition at line 170 of file GTXabsl2EngineExecutor.h. Referenced by executeEngine(), and init().

GTXabsl2Profiler GTXabsl2EngineExecutor::profiler [protected]

The profiler. Definition at line 182 of file GTXabsl2EngineExecutor.h. Referenced by executeEngine(), and init().

SolutionRequest::xabsl2EngineID GTXabsl2EngineExecutor::id [private]

The id of the Xabsl2Engine derivate. Definition at line 187 of file GTXabsl2EngineExecutor.h.

SolutionRequest::ModuleID GTXabsl2EngineExecutor::module [private]

The id of the module (not the solution) that embeds the engine. Definition at line 190 of file GTXabsl2EngineExecutor.h. Referenced by executeEngine().

enum GTXabsl2EngineExecutor::Xabsl2DebugMode GTXabsl2EngineExecutor::debugMode [private]

The requested debug mode. Referenced by executeEngine(), handleMessage(), init(), and sendDebugMessage().

Xabsl2Array<Xabsl2DecimalInputSymbol*> GTXabsl2EngineExecutor::watchedDecimalInputSymbols [private]

The decimal input symbols that are watched by the Xabsl2 Dialog. Definition at line 202 of file GTXabsl2EngineExecutor.h. Referenced by handleMessage(), init(), and sendDebugMessage().

Xabsl2Array<Xabsl2BooleanInputSymbol*> GTXabsl2EngineExecutor::watchedBooleanInputSymbols [private]

The boolean input symbols that are watched by the Xabsl2 Dialog. Definition at line 205 of file GTXabsl2EngineExecutor.h. Referenced by handleMessage(), init(), and sendDebugMessage().

Xabsl2Array<Xabsl2EnumeratedInputSymbol*> GTXabsl2EngineExecutor::watchedEnumeratedInputSymbols [private]

The enumerated input symbols that are watched by the Xabsl2 Dialog. Definition at line 208 of file GTXabsl2EngineExecutor.h. Referenced by handleMessage(), init(), and sendDebugMessage().

Xabsl2Array<Xabsl2EnumeratedOutputSymbol*> GTXabsl2EngineExecutor::watchedEnumeratedOutputSymbols [private]

The enumerated output symbols that are watched by the Xabsl2 Dialog. Definition at line 211 of file GTXabsl2EngineExecutor.h. Referenced by handleMessage(), init(), and sendDebugMessage().

Xabsl2Array<Xabsl2EnumeratedOutputSymbol*> GTXabsl2EngineExecutor::setEnumeratedOutputSymbols [private]

The output symbols that are set from the Xabsl2 Dialog. Definition at line 214 of file GTXabsl2EngineExecutor.h. Referenced by executeEngine(), handleMessage(), and init().

Xabsl2Array<int> GTXabsl2EngineExecutor::setEnumeratedOutputSymbolValues [private]

The values for the set output symbols. Definition at line 217 of file GTXabsl2EngineExecutor.h. Referenced by executeEngine(), handleMessage(), and init().

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/GT/GTXabsl2EngineExecutor.h
• Tools/Xabsl2/GT/GTXabsl2EngineExecutor.cpp

---
