Xabsl2EnumeratedInputSymbol Class Reference

Represents a enumerated input symbol of the Xabsl2Engine. More...

#include <Xabsl2Symbols.h>

Inheritance diagram for Xabsl2EnumeratedInputSymbol:

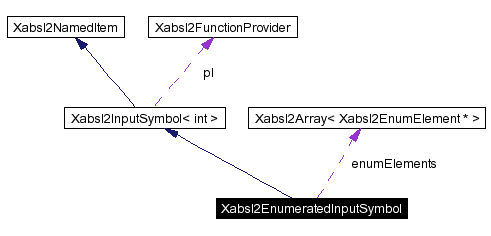

[legend]Collaboration diagram for Xabsl2EnumeratedInputSymbol:

[legend]List of all members.

Public Member Functions
	Xabsl2EnumeratedInputSymbol (const char *name, const int *pVariable)
	Constructor.
	Xabsl2EnumeratedInputSymbol (const char *name, Xabsl2FunctionProvider *pInstance, int(Xabsl2FunctionProvider::*pFunction)())
	Constructor.
	~Xabsl2EnumeratedInputSymbol ()
	Destructor.
Public Attributes
Xabsl2Array< Xabsl2EnumElement * >	enumElements
	Assignes a enum value from a function or variable in the software environment to the enum-element string in the XML formalization.

---

Detailed Description

Represents a enumerated input symbol of the Xabsl2Engine.

Author:

Martin Lötzsch

Definition at line 195 of file Xabsl2Symbols.h.

---

Constructor & Destructor Documentation

Xabsl2EnumeratedInputSymbol::Xabsl2EnumeratedInputSymbol (  const char *  name, const int *  pVariable )  [inline]

Constructor. Parameters: name  The name of the symbol, for debugging purposes pVariable  A pointer to the variable that the symbol stands for Definition at line 203 of file Xabsl2Symbols.h.

Xabsl2EnumeratedInputSymbol::Xabsl2EnumeratedInputSymbol (  const char *  name, Xabsl2FunctionProvider *  pInstance, int(Xabsl2FunctionProvider::*  pFunction)() )  [inline]

Constructor. Parameters: name  The name of the symbol, for debugging purposes pFunction  A pointer to an int returning function in the software environment pInstance  A pointer to the instance that contains the function Definition at line 213 of file Xabsl2Symbols.h.

Xabsl2EnumeratedInputSymbol::~Xabsl2EnumeratedInputSymbol (   )

Destructor. Deletes the enum elements Definition at line 11 of file Xabsl2Symbols.cpp. References enumElements, and Xabsl2Array< Xabsl2EnumElement * >::getSize().

Here is the call graph for this function:

---

Member Data Documentation

Xabsl2Array<Xabsl2EnumElement*> Xabsl2EnumeratedInputSymbol::enumElements

Assignes a enum value from a function or variable in the software environment to the enum-element string in the XML formalization. Definition at line 224 of file Xabsl2Symbols.h. Referenced by Xabsl2Symbols::registerEnumeratedInputSymbolEnumElement(), GTXabsl2EngineExecutor::sendDebugMessage(), Xabsl2EnumeratedInputSymbolComparison::Xabsl2EnumeratedInputSymbolComparison(), and ~Xabsl2EnumeratedInputSymbol().

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2Symbols.h
• Tools/Xabsl2/Xabsl2Engine/Xabsl2Symbols.cpp

---
