SolutionRequest Class Reference

Manages runtime exhangeable modules. More...

#include <SolutionRequest.h>

List of all members.

Public Types

enum  ModuleID {
  colorTableMod, sensorDataProcessor, imageProcessor,
  ballLocator, teamBallLocator, obstaclesLocator,
  playersLocator, selfLocator, robotStateDetector,
  collisionDetector, behaviorControl, motionControl,
  walkingEngineNormal, headControl, ledControl,
  getupEngine, soundControl, sensorBehaviorControl,
  numOfModules
}
 Enumerator for exchange modules Add new exchangeable module here. More...

enum  ModuleSolutionID {
  disabled = -1, colorTable32KMod = 0, colorTable64Mod,
  colorTableTSLMod, numOfColorTableModSolutions, gt2004SelfLocator = 0,
  odometrySelfLocator, specialPerceptSelfLocator, noOdometrySelfLocator,
  numOfSelfLocatorSolutions, gt2004ImageProcessor = 0, checkerboardDetector,
  rasterImageProcessor, numOfImageProcessorSolutions, gt2004BehaviorControlAgentSoccer = 0,
  gt2004BehaviorControlAgentPenaltyShooter, gt2004BehaviorControlAgentJoystickControlled, gt2004BehaviorControlAgentOpenChallenge,
  numOfBehaviorControlSolutions, gt2004CollisionDetector = 0, numOfCollisionDetectorSolutions,
  gt2004WalkingEngine = 0, invKinMSH2004WalkingEngine, invKinBB2004WalkingEngine,
  invKinUpsideDownWalkingEngine, invKinTurnWithBallWalkingEngine, invKinTurnKickWalkingEngine,
  invKinERS7EvolveWalkingEngine, numOfWalkingEngineSolutions, gt2004BallLocator = 0,
  numOfBallLocatorSolutions, gt2004TeamBallLocator = 0, numOfTeamBallLocatorSolutions,
  gt2004PlayersLocator = 0, numOfPlayersLocatorSolutions, gt2004ObstaclesLocator = 0,
  numOfObstaclesLocatorSolutions, gt2004HeadControl = 0, numOfHeadControlSolutions,
  gt2004LEDControl = 0, numOfLEDControlSolutions, gt2004SensorDataProcessor = 0,
  numOfSensorDataProcessorSolutions, gt2004RobotStateDetector = 0, numOfRobotStateDetectorSolutions,
  obstacleAvoiderOnGreenField = 0, obstacleAvoiderOnGreenFieldERS7, motionrecognition,
  simpleMotionRecognition, bb2004Calibrator, imageSaver,
  numOfSensorBehaviorControlSolutions, gt2004MotionControl = 0, debugMotionControl,
  numOfMotionControlSolutions, gt2004GetupEngine = 0, numOfGetupEngineSolutions,
  gt2004SoundControl = 0, numOfSoundControlSolutions
}
 enumerator for available solutions for all exchangeable modules
Attention:
add new solutions here

dont forget to edit selector module too

More...

enum  xabsl2EngineID {
  gt2004, numOfXabslBehaviors, hc_gt2004 = numOfXabslBehaviors,
  undefined
}
 IDs for the module solutions using a Xabsl2Engine. More...


Public Member Functions

 SolutionRequest (bool setDefault=false)
 Constructor.

void setDefaultSolutions ()
 Sets all modules to default solutions.

bool operator== (const SolutionRequest &other)
 the == operator

bool operator!= (const SolutionRequest &other)
 the == operator


Static Public Member Functions

const char * getModuleName (ModuleID id)
 returns names for module ids Add new exchangeable module here

int getNumOfSolutions (ModuleID id)
 Returns number of solutions in module id
Attention:
add new exchangeable module here.


const char * getModuleSolutionName (ModuleID module, ModuleSolutionID solution)
 Returns names for module solution ids.

ModuleSolutionID getDefaultSolution (ModuleID id)
 Returns default solution for module.

const char * getXabsl2EngineIDName (xabsl2EngineID id)
 returns the name of a xabsl2EngineID

const char * getXabsl2EngineFileID (xabsl2EngineID id)
 returns the beginning of the file name of a config file for a xabsl2Engine


Public Attributes

ModuleSolutionID solutions [numOfModules]
 an array containing the selected solution for each module

bool errorWhileReading
 ErrorWhileReading is set to true when an error occurred while reading the SolutionRequest eg when an module was missing or a solution was not recognized.


Detailed Description

Manages runtime exhangeable modules.

Definition at line 19 of file SolutionRequest.h.


Member Enumeration Documentation

enum SolutionRequest::ModuleID


Enumerator for exchange modules Add new exchangeable module here.

Create new selector module for new exchangeable modules

Enumeration values:
colorTableMod
sensorDataProcessor  See class SensorDataProcessorSelector
imageProcessor  See class ImageProcessorSelector
ballLocator  See class BallLocatorSelector
teamBallLocator  See class TeamBallLocatorSelector
obstaclesLocator  See class ObstaclesLocatorSelector
playersLocator  See class PlayersLocatorSelector
selfLocator  See class SelfLocatorSelector
robotStateDetector  See class RobotStateDetectorSelector
collisionDetector  See class CollisionDetectorSelector
behaviorControl  See class BehaviorControlSelector
motionControl  See class MotionControlSelector
walkingEngineNormal  See class WalkingEngineNormalSelector
headControl  See class HeadControlSelector
ledControl  See class LEDControlSelector
getupEngine  See class GetupEngineSelector
soundControl  See class SoundControlSelector
sensorBehaviorControl  See class SensorBehaviorControlSelector
numOfModules  Number of exchangeable modules

Definition at line 27 of file SolutionRequest.h.

enum SolutionRequest::ModuleSolutionID


enumerator for available solutions for all exchangeable modules

Attention:
add new solutions here

dont forget to edit selector module too

Enumeration values:
disabled
colorTable32KMod
colorTable64Mod
colorTableTSLMod
numOfColorTableModSolutions
gt2004SelfLocator
odometrySelfLocator
specialPerceptSelfLocator
noOdometrySelfLocator
numOfSelfLocatorSolutions
gt2004ImageProcessor
checkerboardDetector
rasterImageProcessor
numOfImageProcessorSolutions
gt2004BehaviorControlAgentSoccer
gt2004BehaviorControlAgentPenaltyShooter
gt2004BehaviorControlAgentJoystickControlled
gt2004BehaviorControlAgentOpenChallenge
numOfBehaviorControlSolutions
gt2004CollisionDetector
numOfCollisionDetectorSolutions
gt2004WalkingEngine
invKinMSH2004WalkingEngine
invKinBB2004WalkingEngine
invKinUpsideDownWalkingEngine
invKinTurnWithBallWalkingEngine
invKinTurnKickWalkingEngine
invKinERS7EvolveWalkingEngine
numOfWalkingEngineSolutions
gt2004BallLocator
numOfBallLocatorSolutions
gt2004TeamBallLocator
numOfTeamBallLocatorSolutions
gt2004PlayersLocator
numOfPlayersLocatorSolutions
gt2004ObstaclesLocator
numOfObstaclesLocatorSolutions
gt2004HeadControl
numOfHeadControlSolutions
gt2004LEDControl
numOfLEDControlSolutions
gt2004SensorDataProcessor
numOfSensorDataProcessorSolutions
gt2004RobotStateDetector
numOfRobotStateDetectorSolutions
obstacleAvoiderOnGreenField
obstacleAvoiderOnGreenFieldERS7
motionrecognition
simpleMotionRecognition
bb2004Calibrator
imageSaver
numOfSensorBehaviorControlSolutions
gt2004MotionControl
debugMotionControl
numOfMotionControlSolutions
gt2004GetupEngine
numOfGetupEngineSolutions
gt2004SoundControl
numOfSoundControlSolutions

Definition at line 54 of file SolutionRequest.h.

Referenced by getDefaultSolution().

enum SolutionRequest::xabsl2EngineID


IDs for the module solutions using a Xabsl2Engine.

Enumeration values:
gt2004
numOfXabslBehaviors
hc_gt2004
undefined

Definition at line 363 of file SolutionRequest.h.


Constructor & Destructor Documentation

SolutionRequest::SolutionRequest bool  setDefault = false  )


Constructor.

Parameters:
setDefault if true default modules will be selected else all modules are disabled

Definition at line 16 of file SolutionRequest.cpp.

References errorWhileReading, numOfModules, setDefaultSolutions(), and solutions.

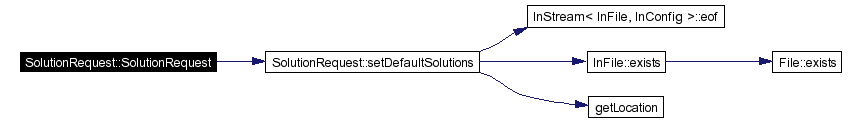

Here is the call graph for this function:


Member Function Documentation

const char* SolutionRequest::getModuleName ModuleID  id  )  [inline, static]


returns names for module ids Add new exchangeable module here

Definition at line 158 of file SolutionRequest.h.

References colorTableMod, getupEngine, ledControl, and walkingEngineNormal.

Referenced by operator<<().

int SolutionRequest::getNumOfSolutions ModuleID  id  )  [inline, static]


Returns number of solutions in module id

Attention:
add new exchangeable module here.

Definition at line 188 of file SolutionRequest.h.

References colorTableMod, getupEngine, ledControl, numOfBallLocatorSolutions, numOfBehaviorControlSolutions, numOfCollisionDetectorSolutions, numOfColorTableModSolutions, numOfGetupEngineSolutions, numOfHeadControlSolutions, numOfImageProcessorSolutions, numOfLEDControlSolutions, numOfMotionControlSolutions, numOfObstaclesLocatorSolutions, numOfPlayersLocatorSolutions, numOfRobotStateDetectorSolutions, numOfSelfLocatorSolutions, numOfSensorBehaviorControlSolutions, numOfSensorDataProcessorSolutions, numOfSoundControlSolutions, numOfTeamBallLocatorSolutions, numOfWalkingEngineSolutions, and walkingEngineNormal.

Referenced by operator<<(), and operator>>().

const char* SolutionRequest::getModuleSolutionName ModuleID  module,
ModuleSolutionID  solution
[inline, static]


Returns names for module solution ids.

Add new solutions here.

Definition at line 219 of file SolutionRequest.h.

References bb2004Calibrator, checkerboardDetector, colorTable32KMod, colorTable64Mod, colorTableMod, colorTableTSLMod, debugMotionControl, getupEngine, gt2004BallLocator, gt2004BehaviorControlAgentJoystickControlled, gt2004BehaviorControlAgentOpenChallenge, gt2004BehaviorControlAgentPenaltyShooter, gt2004BehaviorControlAgentSoccer, gt2004CollisionDetector, gt2004GetupEngine, gt2004HeadControl, gt2004ImageProcessor, gt2004LEDControl, gt2004MotionControl, gt2004ObstaclesLocator, gt2004PlayersLocator, gt2004RobotStateDetector, gt2004SelfLocator, gt2004SensorDataProcessor, gt2004SoundControl, gt2004TeamBallLocator, gt2004WalkingEngine, imageSaver, invKinBB2004WalkingEngine, invKinERS7EvolveWalkingEngine, invKinMSH2004WalkingEngine, invKinTurnKickWalkingEngine, invKinTurnWithBallWalkingEngine, invKinUpsideDownWalkingEngine, ledControl, motionrecognition, obstacleAvoiderOnGreenField, obstacleAvoiderOnGreenFieldERS7, odometrySelfLocator, rasterImageProcessor, simpleMotionRecognition, specialPerceptSelfLocator, and walkingEngineNormal.

Referenced by operator<<().

ModuleSolutionID SolutionRequest::getDefaultSolution ModuleID  id  )  [inline, static]


Returns default solution for module.

Definition at line 337 of file SolutionRequest.h.

References ModuleSolutionID, and solutions.

Referenced by ModuleSelector::ModuleSelector().

void SolutionRequest::setDefaultSolutions  )


Sets all modules to default solutions.

Definition at line 30 of file SolutionRequest.cpp.

References InStream< InFile, InConfig >::eof(), errorWhileReading, InFile::exists(), getLocation(), numOfModules, and solutions.

Referenced by SolutionRequest().

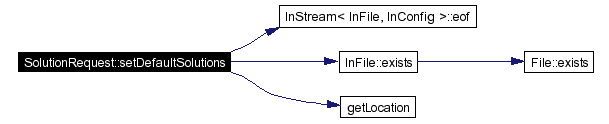

Here is the call graph for this function:

bool SolutionRequest::operator== const SolutionRequest other  )


the == operator

Definition at line 48 of file SolutionRequest.cpp.

References numOfModules, and solutions.

bool SolutionRequest::operator!= const SolutionRequest other  )  [inline]


the == operator

Definition at line 352 of file SolutionRequest.h.

const char* SolutionRequest::getXabsl2EngineIDName xabsl2EngineID  id  )  [inline, static]


returns the name of a xabsl2EngineID

Definition at line 372 of file SolutionRequest.h.

References gt2004, and hc_gt2004.

const char* SolutionRequest::getXabsl2EngineFileID xabsl2EngineID  id  )  [inline, static]


returns the beginning of the file name of a config file for a xabsl2Engine

Definition at line 385 of file SolutionRequest.h.

References gt2004, and hc_gt2004.


Member Data Documentation

ModuleSolutionID SolutionRequest::solutions[numOfModules]


an array containing the selected solution for each module

Definition at line 327 of file SolutionRequest.h.

Referenced by getDefaultSolution(), operator<<(), operator==(), operator>>(), ModuleHandler::selectSolutions(), setDefaultSolutions(), and SolutionRequest().

bool SolutionRequest::errorWhileReading


ErrorWhileReading is set to true when an error occurred while reading the SolutionRequest eg when an module was missing or a solution was not recognized.

Definition at line 360 of file SolutionRequest.h.

Referenced by operator>>(), setDefaultSolutions(), and SolutionRequest().


The documentation for this class was generated from the following files:
Generated on Thu Sep 23 20:11:50 2004 for GT2004 by doxygen 1.3.6
