InMessage Class Reference

An Interface for reading single messages from a MessageQueue that is used by MessageHandler derivates. More...

#include <InMessage.h>

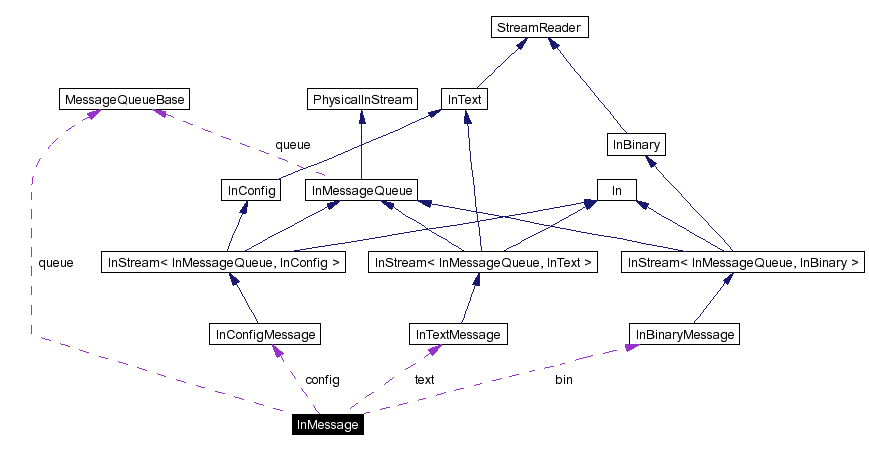

Collaboration diagram for InMessage:

[legend]List of all members.

Public Member Functions
	InMessage (MessageQueueBase &queue)
	Constructor.
unsigned long	getTimeStamp () const
	returns the time stamp of the current message
MessageID	getMessageID () const
	returns the message id of the current message
int	getMessageSize () const
	returns the message size of the current message
Player::teamColor	getTeamColor () const
	returns the team color of the robot that sent this message.
Player::playerNumber	getPlayerNumber () const
	returns the player number of the robot that sent this message.
int	getRobotNumber () const
	returns the robot number of the robot that sent this message.
bool	getMessageWasSentFromAPhysicalRobot () const
	returns whether the message was sent from a physical robot.
void	resetReadPosition ()
	sets the read position to 0 so that the message can be read again
Public Attributes
InBinaryMessage	bin
	An interface for reading binary messages from the queue.
InTextMessage	text
	An interface for reading text messages from the queue.
InConfigMessage	config
	An interface for reading config-file-style text messages from the queue.
Protected Member Functions
const char *	getData () const
	Gives a direct read access to the message.
Private Attributes
MessageQueueBase &	queue
	The message queue where the messages are read from.
Friends
class	MessageQueue
	gives the class MessageQueue access to protected members
void	operator>> (InMessage &message, MessageQueue &queue)
	gives the operator that copies a InMessage to another queue access to protected members
Out &	operator<< (Out &stream, const MessageQueue &messageQueue)
	Gives the stream operator access to protected members.

---

Detailed Description

An Interface for reading single messages from a MessageQueue that is used by MessageHandler derivates.

Use the bin, text or config member for formated reading from a message queue.

Definition at line 124 of file InMessage.h.

---

Constructor & Destructor Documentation

InMessage::InMessage (  MessageQueueBase &  queue  )

Constructor. Parameters: queue  A reference to a MessageQueueBase Definition at line 66 of file InMessage.cpp.

---

Member Function Documentation

unsigned long InMessage::getTimeStamp (   )  const

returns the time stamp of the current message Definition at line 71 of file InMessage.cpp. References MessageQueueBase::getTimeStamp(). Referenced by operator<<(), and operator>>().

Here is the call graph for this function:

MessageID InMessage::getMessageID (   )  const

returns the message id of the current message Definition at line 76 of file InMessage.cpp. References MessageQueueBase::getMessageID(), and MessageID. Referenced by GTXabsl2EngineExecutor::handleMessage(), RobotConfiguration::handleMessage(), Process::handleMessage(), Motion::handleMessage(), Logger::handleMessage(), Debug::handleMessage(), Cognition::handleMessage(), ParamRearOnlyInvKinWalkingEngine::handleMessage(), ParamInvKinWalkingEngine::handleMessage(), InvKinWalkingEngine::handleMessage(), GT2004WalkingEngine::handleMessage(), BB2004InvKinWalkingEngine::handleMessage(), GT2003MotionNetSpecialActions::handleMessage(), ObstacleAvoiderOnGreenFieldERS7::handleMessage(), ObstacleAvoiderOnGreenField::handleMessage(), NoOdometrySelfLocator::handleMessage(), GT2004SelfLocator::handleMessage(), GT2004ObstaclesLocator::handleMessage(), GT2004MotionControl::handleMessage(), DebugMotionControl::handleMessage(), GT2004ImageProcessor::handleMessage(), DefaultTacticChooser::handleMessage(), GT2004BehaviorControl::handleMessage(), KickSelectionSymbols::handleMessage(), GT2004BallLocator::handleMessage(), MessageQueue::handleSpecificMessages(), operator<<(), and operator>>().

Here is the call graph for this function:

int InMessage::getMessageSize (   )  const

returns the message size of the current message Definition at line 81 of file InMessage.cpp. References MessageQueueBase::getMessageSize(). Referenced by MessageQueue::getStreamedSize(), operator<<(), and operator>>().

Here is the call graph for this function:

Player::teamColor InMessage::getTeamColor (   )  const

returns the team color of the robot that sent this message. Can be undefined. Definition at line 86 of file InMessage.cpp. References MessageQueueBase::getTeamColor(). Referenced by operator<<(), and operator>>().

Here is the call graph for this function:

Player::playerNumber InMessage::getPlayerNumber (   )  const

returns the player number of the robot that sent this message. Can be undefined. Definition at line 91 of file InMessage.cpp. References MessageQueueBase::getPlayerNumber(). Referenced by operator<<(), and operator>>().

Here is the call graph for this function:

int InMessage::getRobotNumber (   )  const

returns the robot number of the robot that sent this message. Returns: 0: red1, 3:red4, 4:blue1, 7:blue4, 8:undefined Definition at line 96 of file InMessage.cpp. References MessageQueueBase::getPlayerNumber(), and MessageQueueBase::getTeamColor().

Here is the call graph for this function:

bool InMessage::getMessageWasSentFromAPhysicalRobot (   )  const

returns whether the message was sent from a physical robot. This is true, when the message was sent from the Aperios/OpenR platform, otherwise false. Definition at line 102 of file InMessage.cpp. References MessageQueueBase::getMessageWasSentFromAPhysicalRobot(). Referenced by operator<<(), and operator>>().

Here is the call graph for this function:

void InMessage::resetReadPosition (   )

sets the read position to 0 so that the message can be read again Definition at line 107 of file InMessage.cpp. References config, InText::reset(), MessageQueueBase::resetReadPosition(), and text. Referenced by ModuleHandler::handleMessage(), and GT2004BallLocator::handleMessage().

Here is the call graph for this function:

const char * InMessage::getData (   )  const [protected]

Gives a direct read access to the message. Returns: The adress of the first byte of the message. Definition at line 114 of file InMessage.cpp. References MessageQueueBase::getData(). Referenced by operator<<(), and operator>>().

Here is the call graph for this function:

---

Friends And Related Function Documentation

friend class MessageQueue [friend]

gives the class MessageQueue access to protected members Definition at line 187 of file InMessage.h.

void operator>> (  InMessage &  message, MessageQueue &  queue )  [friend]

gives the operator that copies a InMessage to another queue access to protected members Parameters: message  The InMessage to write. queue  The MessageQueue object. Definition at line 180 of file MessageQueue.cpp.

Out& operator<< (  Out &  stream, const MessageQueue &  messageQueue )  [friend]

Gives the stream operator access to protected members. Parameters: stream  The stream to write on. messageQueue  The MessageQueue object. Returns: The stream. Definition at line 153 of file MessageQueue.cpp.

---

Member Data Documentation

MessageQueueBase& InMessage::queue [private]

The message queue where the messages are read from. Note that the selection which message is read is not done by InMessageQueue but by MessageQueue itself. Definition at line 131 of file InMessage.h.

InBinaryMessage InMessage::bin

An interface for reading binary messages from the queue. Definition at line 135 of file InMessage.h. Referenced by GTXabsl2EngineExecutor::handleMessage(), RobotConfiguration::handleMessage(), Process::handleMessage(), Motion::handleMessage(), Logger::handleMessage(), Debug::handleMessage(), Cognition::handleMessage(), ParamRearOnlyInvKinWalkingEngine::handleMessage(), ParamInvKinWalkingEngine::handleMessage(), InvKinWalkingEngine::handleMessage(), GT2004WalkingEngine::handleMessage(), BB2004InvKinWalkingEngine::handleMessage(), ObstacleAvoiderOnGreenFieldERS7::handleMessage(), ObstacleAvoiderOnGreenField::handleMessage(), NoOdometrySelfLocator::handleMessage(), GT2004SelfLocator::handleMessage(), GT2004ObstaclesLocator::handleMessage(), GT2004MotionControl::handleMessage(), DebugMotionControl::handleMessage(), DefaultTacticChooser::handleMessage(), GT2004BehaviorControl::handleMessage(), GT2004BallLocator::handleMessage(), LogPlayer::saveAMV(), LogPlayer::saveCSV(), and LogPlayer::saveImages().

InTextMessage InMessage::text

An interface for reading text messages from the queue. Definition at line 138 of file InMessage.h. Referenced by MessageQueue::handleAllMessages(), KickSelectionSymbols::handleMessage(), MessageQueue::handleSpecificMessages(), and resetReadPosition().

InConfigMessage InMessage::config

An interface for reading config-file-style text messages from the queue. Definition at line 141 of file InMessage.h. Referenced by MessageQueue::handleAllMessages(), GTXabsl2EngineExecutor::handleMessage(), GT2003MotionNetSpecialActions::handleMessage(), MessageQueue::handleSpecificMessages(), and resetReadPosition().

---

The documentation for this class was generated from the following files:

• Tools/MessageQueue/InMessage.h
• Tools/MessageQueue/InMessage.cpp

---
