Out Class Reference

The class Out is the abstract base class for all classes that implement writing into streams. More...

#include <InOut.h>

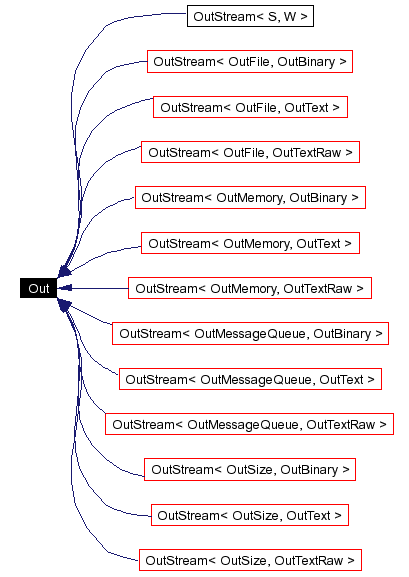

Inheritance diagram for Out:

Inheritance graph
[legend]
List of all members.

Public Member Functions

Out & operator<< (const char value)
 Operator that writes a char into a stream.

Out & operator<< (const unsigned char value)
 Operator that writes an unsigned char into a stream.

Out & operator<< (const short value)
 Operator that writes a short int into a stream.

Out & operator<< (const unsigned short value)
 Operator that writes an unsigned short int into a stream.

Out & operator<< (const int value)
 Operator that writes an int into a stream.

Out & operator<< (const unsigned int value)
 Operator that writes an unsigned int into a stream.

Out & operator<< (const long value)
 Operator that writes a long int into a stream.

Out & operator<< (const unsigned long value)
 Operator that writes an unsigned long int into a stream.

Out & operator<< (const float value)
 Operator that writes a float into a stream.

Out & operator<< (const double value)
 Operator that writes a double into a stream.

Out & operator<< (const char *value)
 Operator that writes a string into a stream.

Out & operator<< (Out &(*f)(Out &))
 Operator that writes the endl-symbol into a stream.

virtual void write (const void *p, int size)=0
 The function writes a number of bytes into a stream.


Protected Member Functions

virtual void outChar (char)=0
 Virtual redirection for operator<<(const char& value).

virtual void outUChar (unsigned char)=0
 Virtual redirection for operator<<(const unsigned char& value).

virtual void outShort (short)=0
 Virtual redirection for operator<<(const short& value).

virtual void outUShort (unsigned short)=0
 Virtual redirection for operator<<(const unsigned short& value).

virtual void outInt (int)=0
 Virtual redirection for operator<<(const int& value).

virtual void outUInt (unsigned int)=0
 Virtual redirection for operator<<(const unsigned& value).

virtual void outLong (long)=0
 Virtual redirection for operator<<(const long& value).

virtual void outULong (unsigned long)=0
 Virtual redirection for operator<<(const unsigned long& value).

virtual void outFloat (float)=0
 Virtual redirection for operator<<(const float& value).

virtual void outDouble (double)=0
 Virtual redirection for operator<<(const double& value).

virtual void outString (const char *)=0
 Virtual redirection for operator<<(const char* value).

virtual void outEndL ()=0
 Virtual redirection for operator<<(Out& (*f)(Out&)) that writes the symbol "endl";.

Detailed Description

The class Out is the abstract base class for all classes that implement writing into streams.

Definition at line 18 of file InOut.h.

Member Function Documentation

virtual void Out::outChar (  char   )  [protected, pure virtual]


Virtual redirection for operator<<(const char& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outUChar (  unsigned  char  )  [protected, pure virtual]


Virtual redirection for operator<<(const unsigned char& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outShort (  short   )  [protected, pure virtual]


Virtual redirection for operator<<(const short& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outUShort (  unsigned  short  )  [protected, pure virtual]


Virtual redirection for operator<<(const unsigned short& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outInt (  int   )  [protected, pure virtual]


Virtual redirection for operator<<(const int& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outUInt (  unsigned  int  )  [protected, pure virtual]


Virtual redirection for operator<<(const unsigned& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outLong (  long   )  [protected, pure virtual]


Virtual redirection for operator<<(const long& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outULong (  unsigned  long  )  [protected, pure virtual]


Virtual redirection for operator<<(const unsigned long& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outFloat (  float   )  [protected, pure virtual]


Virtual redirection for operator<<(const float& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outDouble (  double   )  [protected, pure virtual]


Virtual redirection for operator<<(const double& value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outString (  const char *   )  [protected, pure virtual]


Virtual redirection for operator<<(const char* value).

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

virtual void Out::outEndL (   )  [protected, pure virtual]


Virtual redirection for operator<<(Out& (*f)(Out&)) that writes the symbol "endl";.

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<().

Out& Out::operator<< (  const char  value  )  [inline]


Operator that writes a char into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 88 of file InOut.h.

References outChar().

Here is the call graph for this function:

Out& Out::operator<< (  const unsigned char  value  )  [inline]


Operator that writes an unsigned char into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 95 of file InOut.h.

References outUChar().

Here is the call graph for this function:

Out& Out::operator<< (  const short  value  )  [inline]


Operator that writes a short int into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 102 of file InOut.h.

References outShort().

Here is the call graph for this function:

Out& Out::operator<< (  const unsigned short  value  )  [inline]


Operator that writes an unsigned short int into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 109 of file InOut.h.

References outUShort().

Here is the call graph for this function:

Out& Out::operator<< (  const int  value  )  [inline]


Operator that writes an int into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 116 of file InOut.h.

References outInt().

Here is the call graph for this function:

Out& Out::operator<< (  const unsigned int  value  )  [inline]


Operator that writes an unsigned int into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 123 of file InOut.h.

References outUInt().

Here is the call graph for this function:

Out& Out::operator<< (  const long  value  )  [inline]


Operator that writes a long int into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 130 of file InOut.h.

References outLong().

Here is the call graph for this function:

Out& Out::operator<< (  const unsigned long  value  )  [inline]


Operator that writes an unsigned long int into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 137 of file InOut.h.

References outULong().

Here is the call graph for this function:

Out& Out::operator<< (  const float  value  )  [inline]


Operator that writes a float into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 144 of file InOut.h.

References outFloat().

Here is the call graph for this function:

Out& Out::operator<< (  const double  value  )  [inline]


Operator that writes a double into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 151 of file InOut.h.

References outDouble().

Here is the call graph for this function:

Out& Out::operator<< (  const char *  value  )  [inline]


Operator that writes a string into a stream.

Parameters:
value The value that is written.
Returns:
The stream.

Definition at line 158 of file InOut.h.

References outString().

Here is the call graph for this function:

Out& Out::operator<< (  Out &(*  f)(Out &)  )  [inline]


Operator that writes the endl-symbol into a stream.

Parameters:
f A function that is normally endl.
Returns:
The stream.

Definition at line 165 of file InOut.h.

References outEndL().

Here is the call graph for this function:

virtual void Out::write (  const void *  p,
int  size
)  [pure virtual]


The function writes a number of bytes into a stream.

Parameters:
p The address the data is located at.
size The number of bytes to be written.

Implemented in OutStream< S, W >, OutStream< OutMemory, OutText >, OutStream< OutMemory, OutTextRaw >, OutStream< OutSize, OutText >, OutStream< OutFile, OutTextRaw >, OutStream< OutSize, OutTextRaw >, OutStream< OutFile, OutBinary >, OutStream< OutSize, OutBinary >, OutStream< OutMemory, OutBinary >, OutStream< OutMessageQueue, OutBinary >, OutStream< OutFile, OutText >, OutStream< OutMessageQueue, OutText >, and OutStream< OutMessageQueue, OutTextRaw >.

Referenced by operator<<(), TemplateTable< 50000 >::write(), and ObservationTable< 280, 200, 25 >::write().
