MessageQueue Class Reference

A queue for size varying, time stamped and type safe messages. More...

#include <MessageQueue.h>

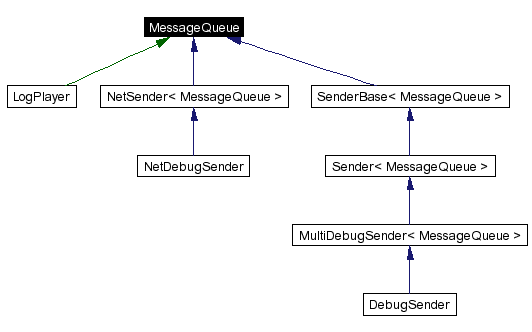

Inheritance diagram for MessageQueue:

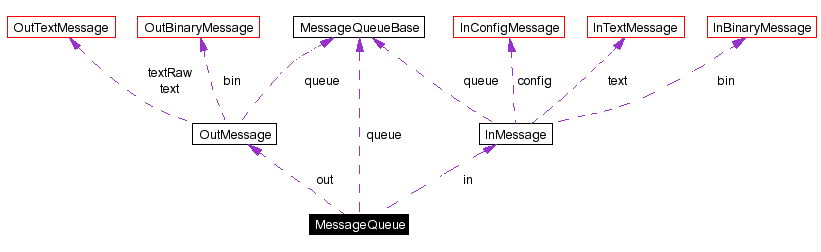

[legend]Collaboration diagram for MessageQueue:

[legend]List of all members.

Public Member Functions
	MessageQueue ()
	Default constructor.
void	setSize (int size)
	Sets the size of memory which is allocated for the queue.
int	getStreamedSize ()
	Returns the size of memory which is needed to write the queue to a stream.
void	setPlayerForNewMessages (const Player &player)
	Specifies a team color and a player number that is atached to every new message.
void	handleSpecificMessages (MessageID id, MessageHandler &handler)
	Calls a given MessageHandler for all messages of a kind in the queue.
void	handleAllMessages (MessageHandler &handler)
	Calls a given MessageHandler for all messages in the queue.
void	copyAllMessages (MessageQueue &other)
	Copies all messages from this queue to another queue.
void	moveAllMessages (MessageQueue &other)
	Moves all messages from this queue to another queue.
void	removeRepetitions ()
	Deletes all older messages from the queue if a newer message of same type is already in the queue.
void	clear ()
	Removes all messages from the queue.
bool	isEmpty () const
	Returns if the queue contains no messages.
Public Attributes
InMessage	in
	An interface for reading messages from the queue.
OutMessage	out
	An interface for writing messages to the queue.
Protected Member Functions
void	copyMessage (int message, MessageQueue &other)
	Copies a single message to another queue.
Protected Attributes
MessageQueueBase	queue
	the system dependend message queue base which is responsible for the data storage
Friends
In &	operator>> (In &stream, MessageQueue &messageQueue)
	Gives the stream operator access to protected members.
Out &	operator<< (Out &stream, const MessageQueue &messageQueue)
	Gives the stream operator access to protected members.

---

Detailed Description

A queue for size varying, time stamped and type safe messages.

It can be used to collect very different types of messages for exchange between different threads, processes or systems.

Author:

Martin Lötzsch

Usage:

 MessageQueue myQueue;
 myQueue.setSize(100000); // set the size of data that can be stored in the queue
 Image image1;
 myQueue.out.bin << image1; // write the binary message
 myQueue.out.finishMessage(idImage); // finish the message, set the type id of the message
 //
 // ... copy the queue between processes, systems
 //
 if (myQueue.in.getMessageID() == idImage) // check for the type of the next message
 {
   Image image2;
   myQueue.in.bin >> image2;  // read the image from the queue
 }


Definition at line 43 of file MessageQueue.h.

---

Constructor & Destructor Documentation

MessageQueue::MessageQueue (   )

Default constructor. Definition at line 12 of file MessageQueue.cpp. References ASSERT, and idJPEGImage.

---

Member Function Documentation

void MessageQueue::setSize (  int  size  )

Sets the size of memory which is allocated for the queue. Ignored on the Win32 platform (dynamic allocation). Parameters: size  The maximum size of the queue in Bytes. Definition at line 18 of file MessageQueue.cpp. References MessageQueueBase::setSize(). Referenced by Cognition::Cognition(), Debug::Debug(), Logger::Logger(), and Motion::Motion().

Here is the call graph for this function:

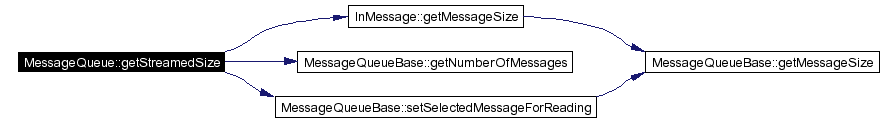

int MessageQueue::getStreamedSize (   )

Returns the size of memory which is needed to write the queue to a stream. Definition at line 141 of file MessageQueue.cpp. References InMessage::getMessageSize(), MessageQueueBase::getNumberOfMessages(), in, and MessageQueueBase::setSelectedMessageForReading().

Here is the call graph for this function:

void MessageQueue::setPlayerForNewMessages (  const Player &  player  )

Specifies a team color and a player number that is atached to every new message. If not set, Player::undefinedTeamColor and Player::undefinedPlayerNumber is used. Definition at line 23 of file MessageQueue.cpp. References Player::getPlayerNumber(), Player::getTeamColor(), out, OutMessage::playerNumberForNewMessages, and OutMessage::teamColorForNewMessages. Referenced by Process::processMain().

Here is the call graph for this function:

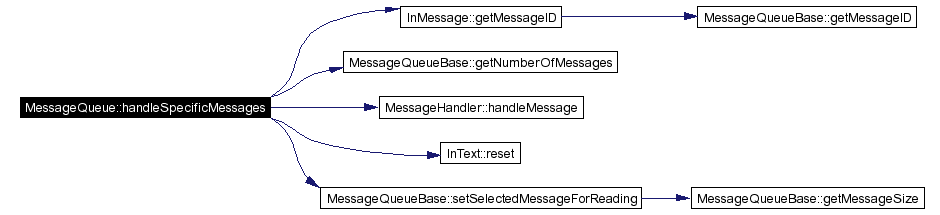

void MessageQueue::handleSpecificMessages (  MessageID  id, MessageHandler &  handler )

Calls a given MessageHandler for all messages of a kind in the queue. Note that the messages still remain in the queue and have to be removed manually with clear(). Parameters: id  handle only messages with this MessageID handler  a reference to a MessageHandler derivate Definition at line 29 of file MessageQueue.cpp. References InMessage::config, InMessage::getMessageID(), MessageQueueBase::getNumberOfMessages(), MessageHandler::handleMessage(), in, InText::reset(), MessageQueueBase::setSelectedMessageForReading(), and InMessage::text.

Here is the call graph for this function:

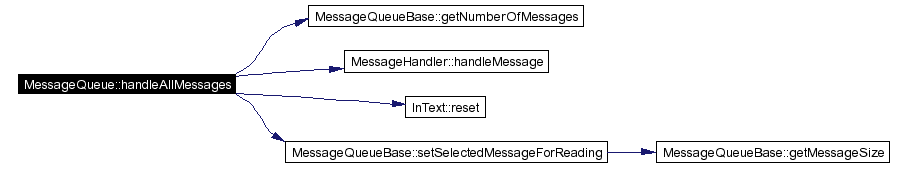

void MessageQueue::handleAllMessages (  MessageHandler &  handler  )

Calls a given MessageHandler for all messages in the queue. Note that the messages still remain in the queue and have to be removed manually with clear(). Parameters: handler  a reference to a MessageHandler derivate Definition at line 43 of file MessageQueue.cpp. References InMessage::config, MessageQueueBase::getNumberOfMessages(), MessageHandler::handleMessage(), in, InText::reset(), MessageQueueBase::setSelectedMessageForReading(), and InMessage::text. Referenced by Logger::init(), Debug::init(), Logger::main(), and Process::processMain().

Here is the call graph for this function:

void MessageQueue::copyAllMessages (  MessageQueue &  other  )

Copies all messages from this queue to another queue. Parameters: other  the destination queue. Definition at line 54 of file MessageQueue.cpp. References copyMessage(), and MessageQueueBase::getNumberOfMessages(). Referenced by moveAllMessages().

Here is the call graph for this function:

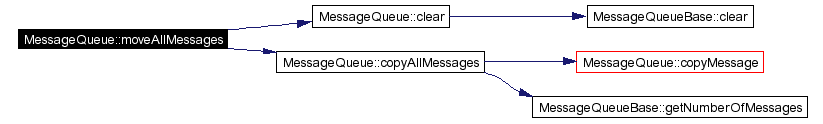

void MessageQueue::moveAllMessages (  MessageQueue &  other  )

Moves all messages from this queue to another queue. Parameters: other  the destination queue. Definition at line 62 of file MessageQueue.cpp. References clear(), and copyAllMessages().

Here is the call graph for this function:

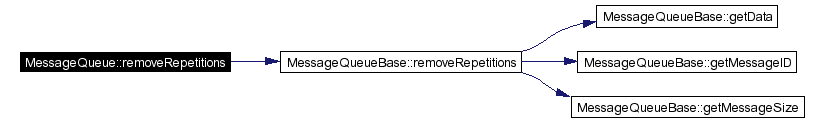

void MessageQueue::removeRepetitions (   )  [inline]

Deletes all older messages from the queue if a newer message of same type is already in the queue. This method should not be called during message handling. Definition at line 106 of file MessageQueue.h. References MessageQueueBase::removeRepetitions(). Referenced by Logger::main(), and Debug::main().

Here is the call graph for this function:

void MessageQueue::clear (   )

Removes all messages from the queue. Definition at line 68 of file MessageQueue.cpp. References MessageQueueBase::clear(). Referenced by LogPlayer::_new(), Logger::init(), Logger::main(), Debug::main(), moveAllMessages(), LogPlayer::open(), and Process::processMain().

Here is the call graph for this function:

bool MessageQueue::isEmpty (   )  const

Returns if the queue contains no messages. Definition at line 73 of file MessageQueue.cpp. References MessageQueueBase::getNumberOfMessages(). Referenced by Logger::main(), and Debug::main().

Here is the call graph for this function:

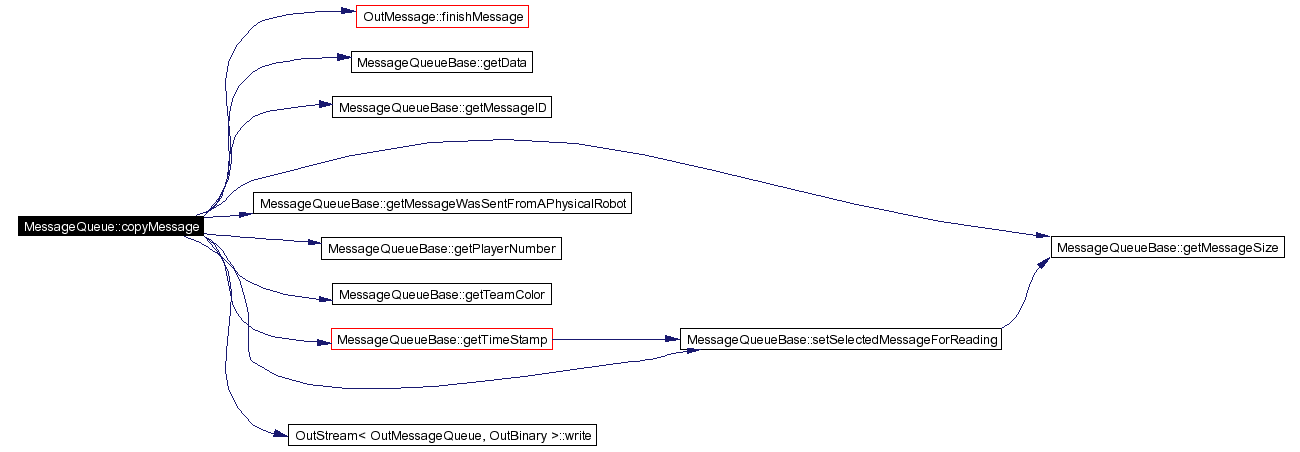

void MessageQueue::copyMessage (  int  message, MessageQueue &  other )  [protected]

Copies a single message to another queue. Parameters: message  The number of the message other  The other queue. Definition at line 78 of file MessageQueue.cpp. References OutMessage::bin, OutMessage::finishMessage(), MessageQueueBase::getData(), MessageQueueBase::getMessageID(), MessageQueueBase::getMessageSize(), MessageQueueBase::getMessageWasSentFromAPhysicalRobot(), MessageQueueBase::getPlayerNumber(), MessageQueueBase::getTeamColor(), MessageQueueBase::getTimeStamp(), out, MessageQueueBase::setSelectedMessageForReading(), and OutStream< OutMessageQueue, OutBinary >::write(). Referenced by copyAllMessages(), LogPlayer::jumpFrame(), LogPlayer::onIdle(), LogPlayer::stepBackward(), LogPlayer::stepForward(), and LogPlayer::stepRepeat().

Here is the call graph for this function:

---

Friends And Related Function Documentation

In& operator>> (  In &  stream, MessageQueue &  messageQueue )  [friend]

Gives the stream operator access to protected members. Parameters: stream  The stream from which is read. messageQueue  The MessageQueue object. Returns: The stream. Definition at line 104 of file MessageQueue.cpp.

Out& operator<< (  Out &  stream, const MessageQueue &  messageQueue )  [friend]

Gives the stream operator access to protected members. Parameters: stream  The stream to write on. messageQueue  The MessageQueue object. Returns: The stream. Definition at line 153 of file MessageQueue.cpp.

---

Member Data Documentation

MessageQueueBase MessageQueue::queue [protected]

the system dependend message queue base which is responsible for the data storage Definition at line 47 of file MessageQueue.h. Referenced by operator<<().

InMessage MessageQueue::in

An interface for reading messages from the queue. Definition at line 51 of file MessageQueue.h. Referenced by getStreamedSize(), handleAllMessages(), handleSpecificMessages(), and operator<<().

OutMessage MessageQueue::out

An interface for writing messages to the queue. Definition at line 54 of file MessageQueue.h. Referenced by copyMessage(), operator>>(), and setPlayerForNewMessages().

---

The documentation for this class was generated from the following files:

• Tools/MessageQueue/MessageQueue.h
• Tools/MessageQueue/MessageQueue.cpp

---
