OutMessage Class Reference

An Interface for writing messages into a MessageQueue. More...

#include <OutMessage.h>

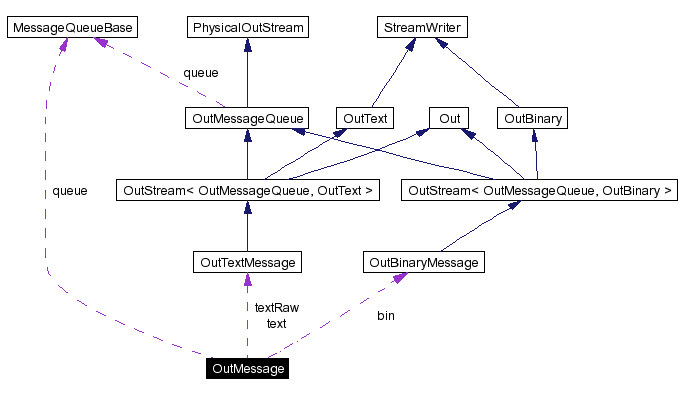

Collaboration diagram for OutMessage:

[legend]List of all members.

Public Member Functions
	OutMessage (MessageQueueBase &queue)
	Constructor.
void	finishMessage (MessageID id)
	Finishes the message and allows to write a new message.
Public Attributes
OutBinaryMessage	bin
	An interface for writing binary messages into the queue.
OutTextMessage	text
	An interface for writing text messages into the queue.
OutTextMessage	textRaw
	An interface for writing text messages in a raw style (see class OutTextRaw) into the queue.
Protected Member Functions
void	finishMessage (MessageID id, unsigned long timeStamp, Player::teamColor teamColor, Player::playerNumber playerNumber, bool messageWasSentFromAPhysicalRobot)
	Finishes the message and allows to write a new message.
Protected Attributes
Player::teamColor	teamColorForNewMessages
	The player's team color that is attached to new messages.
Player::playerNumber	playerNumberForNewMessages
	The player number that is attached to new messages.
Private Attributes
MessageQueueBase &	queue
	The message queue where the messages are written into.
Friends
class	MessageQueue
	gives the MessageQueue class access to protected members
class	InMessage
	gives the InMessage class access to protected members
void	operator>> (InMessage &message, MessageQueue &queue)
	gives the operator that copies a InMessage to another queue access to protected members
In &	operator>> (In &stream, MessageQueue &messageQueue)
	gives the In streaming opeator access to protected members

---

Detailed Description

An Interface for writing messages into a MessageQueue.

Use the bin or text member for formated writing into a message queue.

Definition at line 100 of file OutMessage.h.

---

Constructor & Destructor Documentation

OutMessage::OutMessage (  MessageQueueBase &  queue  )

Constructor. Parameters: queue  A reference to a MessageQueueBase Definition at line 43 of file OutMessage.cpp.

---

Member Function Documentation

void OutMessage::finishMessage (  MessageID  id  )

Finishes the message and allows to write a new message. Call that function after the writing of every message. Parameters: id  The type id of the message Definition at line 50 of file OutMessage.cpp. References MessageQueueBase::finishMessage(), playerNumberForNewMessages, and teamColorForNewMessages. Referenced by MessageQueue::copyMessage(), BBInvKinIndividual::dump(), CalibrationIndividual::dump(), BB2004Calibrator::evolve(), GT2004BallLocator::handleMessage(), BB2004InvKinWalkingEngine::learn(), operator>>(), GTXabsl2EngineExecutor::sendDebugMessage(), and GT2004BallLocator::sendProcessModelStates().

Here is the call graph for this function:

void OutMessage::finishMessage (  MessageID  id, unsigned long  timeStamp, Player::teamColor  teamColor, Player::playerNumber  playerNumber, bool  messageWasSentFromAPhysicalRobot )  [protected]

Finishes the message and allows to write a new message. Parameters: id  The type id of the message timeStamp  The time stamp of the message teamColor  the team color of the robot that sent the message playerNumber  the player number of the robot that sent the message messageWasSentFromAPhysicalRobot  If true, then the message was sent from a physical robot. Definition at line 56 of file OutMessage.cpp. References MessageQueueBase::finishMessage().

Here is the call graph for this function:

---

Friends And Related Function Documentation

friend class MessageQueue [friend]

gives the MessageQueue class access to protected members Definition at line 155 of file OutMessage.h.

friend class InMessage [friend]

gives the InMessage class access to protected members Definition at line 158 of file OutMessage.h.

void operator>> (  InMessage &  message, MessageQueue &  queue )  [friend]

gives the operator that copies a InMessage to another queue access to protected members Parameters: message  The InMessage to write. queue  The MessageQueue object. Definition at line 180 of file MessageQueue.cpp.

In& operator>> (  In &  stream, MessageQueue &  messageQueue )  [friend]

gives the In streaming opeator access to protected members Parameters: stream  The stream from which is read. messageQueue  The MessageQueue object. Returns: The stream. Definition at line 104 of file MessageQueue.cpp.

---

Member Data Documentation

MessageQueueBase& OutMessage::queue [private]

The message queue where the messages are written into. Definition at line 106 of file OutMessage.h.

OutBinaryMessage OutMessage::bin

An interface for writing binary messages into the queue. Definition at line 110 of file OutMessage.h. Referenced by MessageQueue::copyMessage(), GT2004BallLocator::handleMessage(), operator>>(), GTXabsl2EngineExecutor::sendDebugMessage(), and GT2004BallLocator::sendProcessModelStates().

OutTextMessage OutMessage::text

An interface for writing text messages into the queue. Definition at line 113 of file OutMessage.h. Referenced by BBInvKinIndividual::dump(), CalibrationIndividual::dump(), BB2004Calibrator::evolve(), and BB2004InvKinWalkingEngine::learn().

OutTextMessage OutMessage::textRaw

An interface for writing text messages in a raw style (see class OutTextRaw) into the queue. Definition at line 119 of file OutMessage.h.

Player::teamColor OutMessage::teamColorForNewMessages [protected]

The player's team color that is attached to new messages. Definition at line 149 of file OutMessage.h. Referenced by finishMessage(), and MessageQueue::setPlayerForNewMessages().

Player::playerNumber OutMessage::playerNumberForNewMessages [protected]

The player number that is attached to new messages. Definition at line 152 of file OutMessage.h. Referenced by finishMessage(), and MessageQueue::setPlayerForNewMessages().

---

The documentation for this class was generated from the following files:

• Tools/MessageQueue/OutMessage.h
• Tools/MessageQueue/OutMessage.cpp

---
