Xabsl2HeadControlAgentInterface Class Reference

Allows to register the same Xabsl2HeadControl instance more than once at a ModuleHandler to be able to switch between different agents using the GT Module mechanism. More...

#include <Xabsl2HeadControl.h>

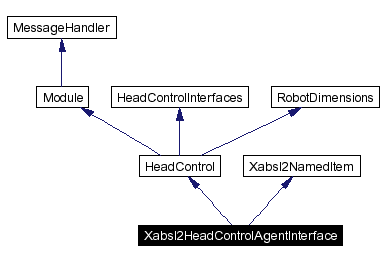

Inheritance diagram for Xabsl2HeadControlAgentInterface:

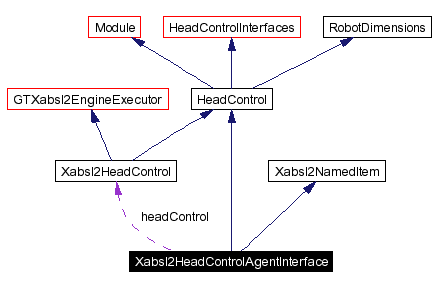

[legend]Collaboration diagram for Xabsl2HeadControlAgentInterface:

[legend]List of all members.

Public Member Functions
	Xabsl2HeadControlAgentInterface (const char *name, Xabsl2HeadControl *headControl, const HeadControlInterfaces &interfaces)
	Constructor.
	~Xabsl2HeadControlAgentInterface ()
	Destructor.
virtual void	execute ()
	Executes the agent.
virtual bool	handleMessage (InMessage &message)
	Is called for every incoming debug message.
Private Attributes
Xabsl2HeadControl *	headControl
	A pointer to the Xabsl2HeadControl can contains the agent.

---

Detailed Description

Allows to register the same Xabsl2HeadControl instance more than once at a ModuleHandler to be able to switch between different agents using the GT Module mechanism.

Definition at line 62 of file Xabsl2HeadControl.h.

---

Constructor & Destructor Documentation

Xabsl2HeadControlAgentInterface::Xabsl2HeadControlAgentInterface (  const char *  name, Xabsl2HeadControl *  headControl, const HeadControlInterfaces &  interfaces )

Constructor. Parameters: name  The name of the agent headControl  A newly created Xabsl2HeadControl can contains the agent. interfaces  The paramters of the HeadControl module. Definition at line 43 of file Xabsl2HeadControl.cpp. References ASSERT.

Xabsl2HeadControlAgentInterface::~Xabsl2HeadControlAgentInterface (   )

Destructor. Deletes the Xabsl2HeadControl Definition at line 52 of file Xabsl2HeadControl.cpp.

---

Member Function Documentation

void Xabsl2HeadControlAgentInterface::execute (   )  [virtual]

Executes the agent. Implements Module. Definition at line 57 of file Xabsl2HeadControl.cpp. References ASSERT.

bool Xabsl2HeadControlAgentInterface::handleMessage (  InMessage &  message  )  [virtual]

Is called for every incoming debug message. Parameters: message  An interface to read the message from the queue Returns: if the messag was read Reimplemented from Module. Definition at line 64 of file Xabsl2HeadControl.cpp. References ASSERT.

---

Member Data Documentation

Xabsl2HeadControl* Xabsl2HeadControlAgentInterface::headControl [private]

A pointer to the Xabsl2HeadControl can contains the agent. Definition at line 90 of file Xabsl2HeadControl.h.

---

The documentation for this class was generated from the following files:

• Modules/HeadControl/Xabsl2HeadControl.h
• Modules/HeadControl/Xabsl2HeadControl.cpp

---
