LogPlayer Class Reference

A message queue that can record and play logfiles. More...

#include <LogPlayer.h>

Inheritance diagram for LogPlayer:

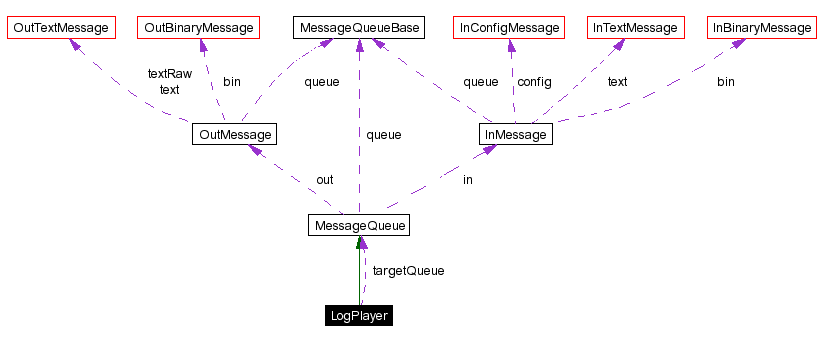

[legend]Collaboration diagram for LogPlayer:

[legend]List of all members.

Public Types
enum	LogPlayerState {   initial, recording, paused,   playing }
	different states of the logplayer More...
Public Member Functions
	LogPlayer (MessageQueue &targetQueue)
	Constructor.
LogPlayerState	getState ()
	Returns the state of the queue.
void	_new ()
	Deletes all messages from the queue.
bool	open (const char *fileName)
	Opens a log file and reads all messages into the queue.
void	play ()
	Playes the queue.
void	pause ()
	Pauses playing the queue.
void	stop ()
	Stops playing the queue, resets the position in the queue to the first message.
void	stepForward ()
	Plays the next message in the queue.
void	stepBackward ()
	Plays the previous message in the queue.
void	stepRepeat ()
	repeats the current message in the queue
void	jumpFrame (int frame)
	jumps to given message-number in the queue
void	record ()
	Starts / Stops recording.
void	smooth ()
	Activates/deactivates jpeg image smoothing.
bool	save (const char *fileName)
	Writes all messages in the log player queue to a log file.
bool	saveAMV (const char *fileName)
	Writes all messages in the log player queue to an AIBOVision compatibile movie file.
void	saveCSVrow (OutTextRawFile &file, double *row, unsigned int rowLen)
	Writes an row of doubles to an comma separated value file.
bool	saveCSV (const char *fileName)
	Writes a couple of message types in the log player queue to an comma separated value file with a common time line.
bool	saveImages (const char *fileName)
	Writes all images in the log player queue to a bunch of files (*.bmp or *.jpg).
void	setPlaySpeed (double speed)
	Sets the playing speed of the log player.
void	handleMessage (InMessage &message)
	Adds the message to the queue depending on isRecording.
void	onIdle ()
	If playing a log file, that function checks if it is time to release the next message dependend on the time stamp.
int	getNumberOfMessages () const
	Returns the number of stored messages.
int	getCurrentMessageNumber () const
	Returns the number of the current message.
MessageID	getCurrentMessageID () const
	Returns the type of the current message.
bool	isSmoothingEnabled () const
	Returns the status of the smoothing flag.
Protected Attributes
int	currentMessageNumber
	The number of the current message.
Private Member Functions
void	convertIntString (char *str, int value)
	little routine to convert an integer into C style string
unsigned long	getTimeStamp (int message)
	Returns the time stamp of a given message.
Private Attributes
LogPlayerState	state
	the state of the log player
MessageQueue &	targetQueue
double	playSpeed
	A factor, how fast the messages are played.
unsigned long	timeWhenFirstMessageWasPlayed
	The time when the first message was played.
unsigned long	timeOfFirstPlayedMessage
	The time stamp of the first played message.
bool	smoothingEnabled
	Flag which triggers smoothing of jpeg compressed images.

---

Detailed Description

A message queue that can record and play logfiles.

The messages are played in the same time sequence as they were recorded.

Author:

Martin Lötzsch

Definition at line 22 of file LogPlayer.h.

---

Member Enumeration Documentation

enum LogPlayer::LogPlayerState

different states of the logplayer Enumeration values: initial  recording  paused  playing  Definition at line 32 of file LogPlayer.h. Referenced by getState().

---

Constructor & Destructor Documentation

LogPlayer::LogPlayer (  MessageQueue &  targetQueue  )

Constructor. Parameters: targetQueue  The queue into that messages from played logfiles shall be stored. Definition at line 21 of file LogPlayer.cpp. References _new().

Here is the call graph for this function:

---

Member Function Documentation

LogPlayer::LogPlayerState LogPlayer::getState (   )

Returns the state of the queue. Definition at line 414 of file LogPlayer.cpp. References LogPlayerState, and state.

void LogPlayer::_new (   )

Deletes all messages from the queue. Definition at line 29 of file LogPlayer.cpp. References MessageQueue::clear(), initial, state, and stop(). Referenced by LogPlayer().

Here is the call graph for this function:

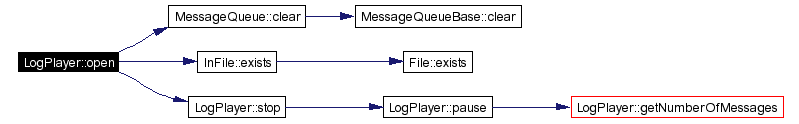

bool LogPlayer::open (  const char *  fileName  )

Opens a log file and reads all messages into the queue. Parameters: fileName  the name of the file to open Returns: if the reading was successful Definition at line 36 of file LogPlayer.cpp. References MessageQueue::clear(), InFile::exists(), and stop().

Here is the call graph for this function:

void LogPlayer::play (   )

Playes the queue. Note that you have to call onIdle() regularely if you want to use that function Definition at line 49 of file LogPlayer.cpp. References pause(), playing, and state.

Here is the call graph for this function:

void LogPlayer::pause (   )

Pauses playing the queue. Definition at line 61 of file LogPlayer.cpp. References getNumberOfMessages(), initial, paused, state, timeOfFirstPlayedMessage, and timeWhenFirstMessageWasPlayed. Referenced by jumpFrame(), play(), record(), stepBackward(), stepForward(), stepRepeat(), and stop().

Here is the call graph for this function:

void LogPlayer::stop (   )

Stops playing the queue, resets the position in the queue to the first message. Definition at line 55 of file LogPlayer.cpp. References currentMessageNumber, and pause(). Referenced by _new(), onIdle(), open(), saveAMV(), saveCSV(), and saveImages().

Here is the call graph for this function:

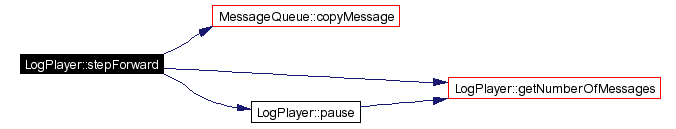

void LogPlayer::stepForward (   )

Plays the next message in the queue. Definition at line 78 of file LogPlayer.cpp. References MessageQueue::copyMessage(), currentMessageNumber, getNumberOfMessages(), pause(), paused, state, and targetQueue.

Here is the call graph for this function:

void LogPlayer::stepBackward (   )

Plays the previous message in the queue. Definition at line 70 of file LogPlayer.cpp. References MessageQueue::copyMessage(), currentMessageNumber, pause(), paused, state, and targetQueue.

Here is the call graph for this function:

void LogPlayer::stepRepeat (   )

repeats the current message in the queue Definition at line 86 of file LogPlayer.cpp. References MessageQueue::copyMessage(), currentMessageNumber, pause(), paused, state, and targetQueue.

Here is the call graph for this function:

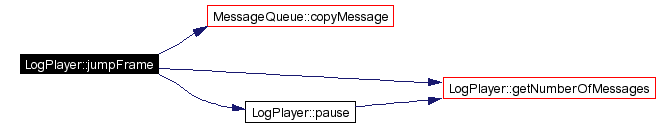

void LogPlayer::jumpFrame (  int  frame  )

jumps to given message-number in the queue Definition at line 94 of file LogPlayer.cpp. References MessageQueue::copyMessage(), currentMessageNumber, getNumberOfMessages(), pause(), paused, state, and targetQueue.

Here is the call graph for this function:

void LogPlayer::record (   )

Starts / Stops recording. Note that you have to notify the queue on new messages with handleMessage(). Definition at line 379 of file LogPlayer.cpp. References initial, pause(), paused, playing, recording, and state.

Here is the call graph for this function:

void LogPlayer::smooth (   )

Activates/deactivates jpeg image smoothing. Definition at line 394 of file LogPlayer.cpp. References smoothingEnabled.

bool LogPlayer::save (  const char *  fileName  )

Writes all messages in the log player queue to a log file. Parameters: fileName  the name of the file to write Returns: if the writing was successful Definition at line 102 of file LogPlayer.cpp. References OutFile::exists(), and getNumberOfMessages().

Here is the call graph for this function:

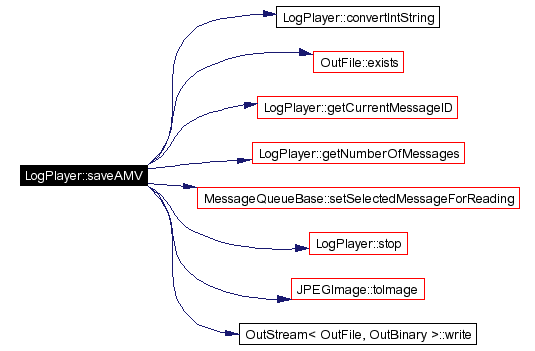

bool LogPlayer::saveAMV (  const char *  fileName  )

Writes all messages in the log player queue to an AIBOVision compatibile movie file. Images are encoded in a raw YUV format. Parameters: fileName  the name of the file to write Returns: if the writing was successful Definition at line 130 of file LogPlayer.cpp. References InMessage::bin, Image::cameraInfo, convertIntString(), currentMessageNumber, OutFile::exists(), getCurrentMessageID(), getNumberOfMessages(), idImage, idJPEGImage, Image::image, CameraInfo::resolutionHeight, CameraInfo::resolutionWidth, MessageQueueBase::setSelectedMessageForReading(), stop(), JPEGImage::toImage(), and OutStream< OutFile, OutBinary >::write().

Here is the call graph for this function:

void LogPlayer::saveCSVrow (  OutTextRawFile &  file, double *  row, unsigned int  rowLen )

Writes an row of doubles to an comma separated value file. Parameters: file  the open file to write to row  a row containing the doubles to be written rowLen  number of entries in row Definition at line 198 of file LogPlayer.cpp. Referenced by saveCSV().

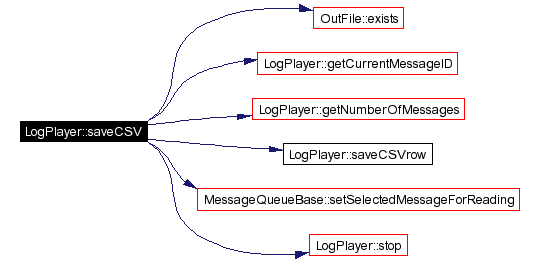

bool LogPlayer::saveCSV (  const char *  fileName  )

Writes a couple of message types in the log player queue to an comma separated value file with a common time line. Parameters: fileName  the name of the file to write Returns: if the writing was successful Definition at line 219 of file LogPlayer.cpp. References InMessage::bin, SpecialPercept::checkerPose, currentMessageNumber, OutFile::exists(), RobotPose::frameNumber, SpecialPercept::frameNumber, getCurrentMessageID(), getNumberOfMessages(), idSpecialPercept, idWorldState, RECEIVE_WORLDSTATE, Pose2D::rotation, saveCSVrow(), MessageQueueBase::setSelectedMessageForReading(), stop(), Pose2D::translation, SpecialPercept::type, Vector2< double >::x, and Vector2< double >::y.

Here is the call graph for this function:

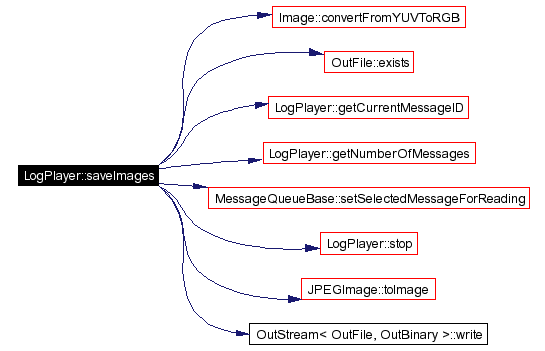

bool LogPlayer::saveImages (  const char *  fileName  )

Writes all images in the log player queue to a bunch of files (*.bmp or *.jpg). Parameters: fileName  the name of one file to write, all files will be enumerated by appending a 3 digit number to the filename. Returns: if the writing of all files was successful Definition at line 290 of file LogPlayer.cpp. References InMessage::bin, Image::cameraInfo, Image::convertFromYUVToRGB(), currentMessageNumber, OutFile::exists(), getCurrentMessageID(), getNumberOfMessages(), idImage, idJPEGImage, Image::image, CameraInfo::resolutionHeight, CameraInfo::resolutionWidth, MessageQueueBase::setSelectedMessageForReading(), stop(), JPEGImage::toImage(), and OutStream< OutFile, OutBinary >::write().

Here is the call graph for this function:

void LogPlayer::setPlaySpeed (  double  speed  )

Sets the playing speed of the log player. "2" playes the messages double as fast as they were recorded, "0.5" plays the messages with the half speed. Definition at line 402 of file LogPlayer.cpp. References playSpeed, and timeWhenFirstMessageWasPlayed.

void LogPlayer::handleMessage (  InMessage &  message  )

Adds the message to the queue depending on isRecording. That function should be called for every message in the queue that the log player shall work on. Definition at line 408 of file LogPlayer.cpp. References recording, and state.

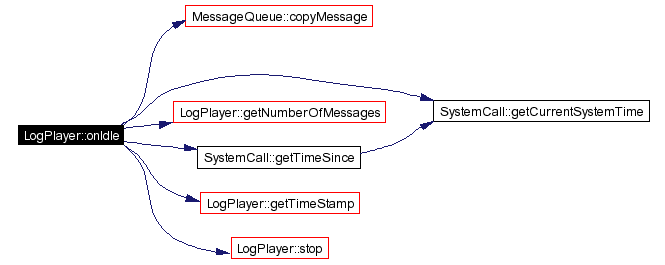

void LogPlayer::onIdle (   )

If playing a log file, that function checks if it is time to release the next message dependend on the time stamp. Call that function whenever there is some processing time left. Definition at line 419 of file LogPlayer.cpp. References MessageQueue::copyMessage(), currentMessageNumber, SystemCall::getCurrentSystemTime(), getNumberOfMessages(), SystemCall::getTimeSince(), getTimeStamp(), playing, playSpeed, state, stop(), targetQueue, timeOfFirstPlayedMessage, and timeWhenFirstMessageWasPlayed.

Here is the call graph for this function:

int LogPlayer::getNumberOfMessages (   )  const

Returns the number of stored messages. Definition at line 462 of file LogPlayer.cpp. References MessageQueueBase::getNumberOfMessages(). Referenced by jumpFrame(), onIdle(), pause(), save(), saveAMV(), saveCSV(), saveImages(), and stepForward().

Here is the call graph for this function:

int LogPlayer::getCurrentMessageNumber (   )  const

Returns the number of the current message. Definition at line 467 of file LogPlayer.cpp. References currentMessageNumber.

MessageID LogPlayer::getCurrentMessageID (   )  const

Returns the type of the current message. Definition at line 472 of file LogPlayer.cpp. References currentMessageNumber, MessageQueueBase::getMessageID(), and MessageID. Referenced by saveAMV(), saveCSV(), and saveImages().

Here is the call graph for this function:

bool LogPlayer::isSmoothingEnabled (   )  const [inline]

Returns the status of the smoothing flag. Definition at line 151 of file LogPlayer.h. References smoothingEnabled.

void LogPlayer::convertIntString (  char *  str, int  value )  [private]

little routine to convert an integer into C style string Definition at line 116 of file LogPlayer.cpp. Referenced by saveAMV().

unsigned long LogPlayer::getTimeStamp (  int  message  )  [private]

Returns the time stamp of a given message. Parameters: message  The number of the message Returns: The time stamp Definition at line 457 of file LogPlayer.cpp. References MessageQueueBase::getTimeStamp(). Referenced by onIdle().

Here is the call graph for this function:

---

Member Data Documentation

LogPlayerState LogPlayer::state [private]

the state of the log player Definition at line 159 of file LogPlayer.h. Referenced by _new(), getState(), handleMessage(), jumpFrame(), onIdle(), pause(), play(), record(), stepBackward(), stepForward(), and stepRepeat().

MessageQueue& LogPlayer::targetQueue [private]

Definition at line 162 of file LogPlayer.h. Referenced by jumpFrame(), onIdle(), stepBackward(), stepForward(), and stepRepeat().

double LogPlayer::playSpeed [private]

A factor, how fast the messages are played. "2" playes the messages double as fast as they were recorded, "0.5" plays the messages with the half speed. Definition at line 172 of file LogPlayer.h. Referenced by onIdle(), and setPlaySpeed().

int LogPlayer::currentMessageNumber [protected]

The number of the current message. Definition at line 183 of file LogPlayer.h. Referenced by getCurrentMessageID(), getCurrentMessageNumber(), jumpFrame(), onIdle(), saveAMV(), saveCSV(), saveImages(), stepBackward(), stepForward(), stepRepeat(), and stop().

unsigned long LogPlayer::timeWhenFirstMessageWasPlayed [private]

The time when the first message was played. Definition at line 187 of file LogPlayer.h. Referenced by onIdle(), pause(), and setPlaySpeed().

unsigned long LogPlayer::timeOfFirstPlayedMessage [private]

The time stamp of the first played message. Definition at line 190 of file LogPlayer.h. Referenced by onIdle(), and pause().

bool LogPlayer::smoothingEnabled [private]

Flag which triggers smoothing of jpeg compressed images. Definition at line 193 of file LogPlayer.h. Referenced by isSmoothingEnabled(), and smooth().

---

The documentation for this class was generated from the following files:

• Tools/MessageQueue/LogPlayer.h
• Tools/MessageQueue/LogPlayer.cpp

---
