Xabsl2State Class Reference

Represents a single state written in Xabsl2. More...

#include <Xabsl2Option.h>

Inheritance diagram for Xabsl2State:

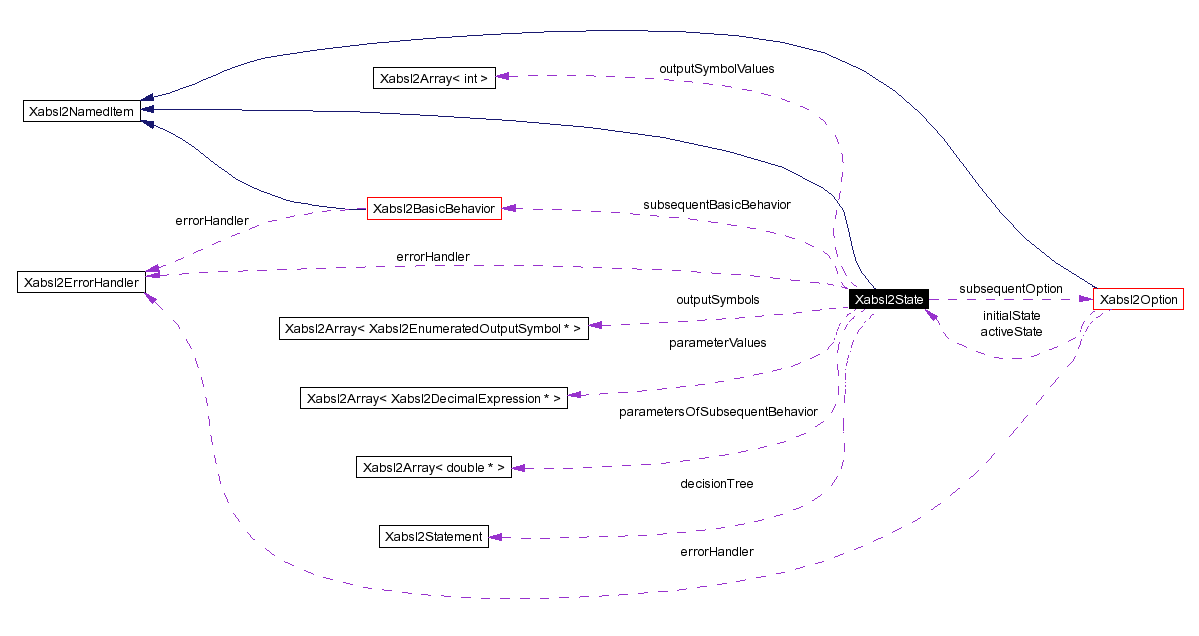

[legend]Collaboration diagram for Xabsl2State:

[legend]List of all members.

Public Member Functions
	Xabsl2State (const char *name, Xabsl2ErrorHandler &errorHandler, unsigned long(*pTimeFunction)())
	Constructor.
	~Xabsl2State ()
	Destructor.
void	create (Xabsl2InputSource &input, Xabsl2Array< Xabsl2Option * > &options, Xabsl2Array< Xabsl2BasicBehavior & > &basicBehaviors, Xabsl2Array< Xabsl2State * > &states, Xabsl2Array< double > &parameters, Xabsl2Symbols &symbols, unsigned long &timeOfOptionExecution)
	Creates the state and it's subelements from the intermediate code.
Xabsl2State *	getNextState ()
	Executes the decision tree and determines the next active state (can be the same).
void	setOutputSymbols ()
	Sets the output symbols of the state.
void	reset ()
	Sets the time when the state was activated to 0.
bool	isTargetState () const
	Returns wheter the state is a target state.
Public Attributes
Xabsl2Option *	subsequentOption
	The option that is executed after that option if the state is active.
Xabsl2BasicBehavior *	subsequentBasicBehavior
	The basic behavior that is executed after that option if the state is active.
unsigned long	timeOfStateExecution
	the time how long the state is already active
Xabsl2Array< double * >	parametersOfSubsequentBehavior
	Pointers to the parameters of a subsequent basic behavior or a subsequent option.
Xabsl2Array< Xabsl2DecimalExpression * >	parameterValues
	Decimal expressions for the parameters of a subsequent basic behavior or a subsequent option.
Private Attributes
unsigned long	timeWhenStateWasActivated
	The time, when the state was activated.
bool	targetState
	If true, the state is a target state.
Xabsl2ErrorHandler &	errorHandler
	Used for error handling.
Xabsl2Statement *	decisionTree
	The root element of the decision tree.
Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >	outputSymbols
	The output symbols that are set if the state is active.
Xabsl2Array< int >	outputSymbolValues
	The for the output symbols that are set if the state is active.
unsigned long(*	pTimeFunction )()
	A pointer to a function that returns the system time in ms.

---

Detailed Description

Represents a single state written in Xabsl2.

Author:

Martin Lötzsch

Definition at line 149 of file Xabsl2Option.h.

---

Constructor & Destructor Documentation

Xabsl2State::Xabsl2State (  const char *  name, Xabsl2ErrorHandler &  errorHandler, unsigned long(*  pTimeFunction)() )

Constructor. Does not create the state. Parameters: name  The name of the state. For debugging purposes. errorHandler  A reference to a Xabsl2ErrorHandler instance pTimeFunction  a pointer to a function that returns the system time in ms. Definition at line 151 of file Xabsl2Option.cpp.

Xabsl2State::~Xabsl2State (   )

Destructor. Definition at line 158 of file Xabsl2Option.cpp. References decisionTree, and Xabsl2Array< Xabsl2DecimalExpression * >::getSize().

Here is the call graph for this function:

---

Member Function Documentation

void Xabsl2State::create (  Xabsl2InputSource &  input, Xabsl2Array< Xabsl2Option * > &  options, Xabsl2Array< Xabsl2BasicBehavior & > &  basicBehaviors, Xabsl2Array< Xabsl2State * > &  states, Xabsl2Array< double > &  parameters, Xabsl2Symbols &  symbols, unsigned long &  timeOfOptionExecution )

Creates the state and it's subelements from the intermediate code. Parameters: input  An input source for the intermediate code. It must be opened and read until A position where a state starts. options  All available options basicBehaviors  All available basicBehaviors states  All states of the option parameters  The parameters of the option symbols  All available symbols timeOfOptionExecution  The time how long the option is already active Definition at line 166 of file Xabsl2Option.cpp. References Xabsl2Array< int >::append(), Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::append(), Xabsl2Array< Xabsl2DecimalExpression * >::append(), Xabsl2Array< double * >::append(), Xabsl2Statement::createStatement(), decisionTree, Xabsl2ArrayElement< double & >::e, Xabsl2ArrayElement< double >::e, Xabsl2ErrorHandler::error(), Xabsl2ErrorHandler::errorsOccurred, Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::exists(), Xabsl2Array< double & >::exists(), Xabsl2Array< double >::exists(), Xabsl2Array< T >::exists(), Xabsl2Symbols::existsEnumeratedOutputSymbol(), Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::getElement(), Xabsl2Array< T >::getElement(), Xabsl2Symbols::getEnumeratedOutputSymbol(), Xabsl2Array< double & >::getPElement(), Xabsl2Array< double >::getPElement(), Xabsl2ErrorHandler::message(), outputSymbols, outputSymbolValues, Xabsl2BasicBehavior::parameters, Xabsl2Option::parameters, parametersOfSubsequentBehavior, Xabsl2InputSource::readString(), Xabsl2InputSource::readValue(), subsequentBasicBehavior, targetState, timeOfStateExecution, and XABSL2_DEBUG_INIT.

Here is the call graph for this function:

Xabsl2State * Xabsl2State::getNextState (   )

Executes the decision tree and determines the next active state (can be the same). Definition at line 272 of file Xabsl2Option.cpp. References decisionTree, Xabsl2Statement::getNextState(), pTimeFunction, timeOfStateExecution, and timeWhenStateWasActivated. Referenced by Xabsl2Option::execute().

Here is the call graph for this function:

void Xabsl2State::setOutputSymbols (   )

Sets the output symbols of the state. Definition at line 281 of file Xabsl2Option.cpp. References Xabsl2Array< Xabsl2EnumeratedOutputSymbol * >::getSize(), Xabsl2Array< double * >::getSize(), Xabsl2Array< double >::getSize(), Xabsl2Array< double & >::getSize(), outputSymbols, outputSymbolValues, Xabsl2Option::parameters, Xabsl2BasicBehavior::parameters, parametersOfSubsequentBehavior, Xabsl2Array< double >::setElement(), and subsequentBasicBehavior. Referenced by Xabsl2Option::execute().

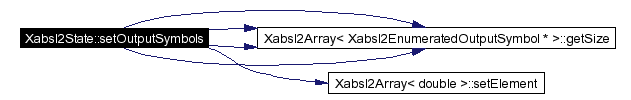

Here is the call graph for this function:

void Xabsl2State::reset (   )

Sets the time when the state was activated to 0. Definition at line 314 of file Xabsl2Option.cpp. References pTimeFunction, timeOfStateExecution, and timeWhenStateWasActivated. Referenced by Xabsl2Option::execute().

bool Xabsl2State::isTargetState (   )  const

Returns wheter the state is a target state. Definition at line 320 of file Xabsl2Option.cpp. References targetState. Referenced by Xabsl2Option::getOptionReachedATargetState().

---

Member Data Documentation

Xabsl2Option* Xabsl2State::subsequentOption

The option that is executed after that option if the state is active. If 0, a basic behavior is executed after that option. Definition at line 196 of file Xabsl2Option.h. Referenced by GTXabsl2Profiler::doProfiling(), Xabsl2Engine::execute(), and GTXabsl2EngineExecutor::sendDebugMessage().

Xabsl2BasicBehavior* Xabsl2State::subsequentBasicBehavior

The basic behavior that is executed after that option if the state is active. If 0, an option is executed after that option. Definition at line 202 of file Xabsl2Option.h. Referenced by create(), Xabsl2Engine::execute(), and setOutputSymbols().

unsigned long Xabsl2State::timeOfStateExecution

the time how long the state is already active Definition at line 205 of file Xabsl2Option.h. Referenced by create(), getNextState(), reset(), and GTXabsl2EngineExecutor::sendDebugMessage().

Xabsl2Array<double*> Xabsl2State::parametersOfSubsequentBehavior

Pointers to the parameters of a subsequent basic behavior or a subsequent option. Definition at line 211 of file Xabsl2Option.h. Referenced by create(), and setOutputSymbols().

Xabsl2Array<Xabsl2DecimalExpression*> Xabsl2State::parameterValues

Decimal expressions for the parameters of a subsequent basic behavior or a subsequent option. Definition at line 214 of file Xabsl2Option.h.

unsigned long Xabsl2State::timeWhenStateWasActivated [private]

The time, when the state was activated. Definition at line 222 of file Xabsl2Option.h. Referenced by getNextState(), and reset().

bool Xabsl2State::targetState [private]

If true, the state is a target state. Definition at line 225 of file Xabsl2Option.h. Referenced by create(), and isTargetState().

Xabsl2ErrorHandler& Xabsl2State::errorHandler [private]

Used for error handling. Definition at line 228 of file Xabsl2Option.h.

Xabsl2Statement* Xabsl2State::decisionTree [private]

The root element of the decision tree. Definition at line 231 of file Xabsl2Option.h. Referenced by create(), getNextState(), and ~Xabsl2State().

Xabsl2Array<Xabsl2EnumeratedOutputSymbol*> Xabsl2State::outputSymbols [private]

The output symbols that are set if the state is active. Definition at line 234 of file Xabsl2Option.h. Referenced by create(), and setOutputSymbols().

Xabsl2Array<int> Xabsl2State::outputSymbolValues [private]

The for the output symbols that are set if the state is active. Definition at line 237 of file Xabsl2Option.h. Referenced by create(), and setOutputSymbols().

unsigned long(* Xabsl2State::pTimeFunction)() [private]

A pointer to a function that returns the system time in ms. Referenced by getNextState(), and reset().

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2Option.h
• Tools/Xabsl2/Xabsl2Engine/Xabsl2Option.cpp

---
