Xabsl2Statement Class Reference

An element of a decision that that determines a transition to a state. More...

#include <Xabsl2Option.h>

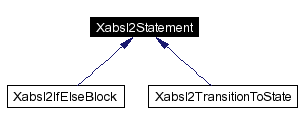

Inheritance diagram for Xabsl2Statement:

[legend]List of all members.

Public Member Functions
virtual Xabsl2State *	getNextState ()=0
	Executes the statement and determines the next active state (can be the same).
virtual	~Xabsl2Statement ()=0
	Destructor.
Static Public Member Functions
Xabsl2Statement *	createStatement (Xabsl2InputSource &input, Xabsl2Option *subsequentOption, Xabsl2ErrorHandler &errorHandler, Xabsl2Array< Xabsl2State * > &states, Xabsl2Array< double > &parameters, Xabsl2Symbols &symbols, unsigned long &timeOfOptionExecution, unsigned long &timeOfStateExecution)
	Creates a statement depending on the input.

---

Detailed Description

An element of a decision that that determines a transition to a state.

It can be either a transition to a state or a if/else-if/else block containing other statements.

Author:

Martin Lötzsch

Definition at line 27 of file Xabsl2Option.h.

---

Constructor & Destructor Documentation

Xabsl2Statement::~Xabsl2Statement (   )  [pure virtual]

Destructor. Definition at line 37 of file Xabsl2Option.cpp.

---

Member Function Documentation

virtual Xabsl2State* Xabsl2Statement::getNextState (   )  [pure virtual]

Executes the statement and determines the next active state (can be the same). Implemented in Xabsl2IfElseBlock, and Xabsl2TransitionToState. Referenced by Xabsl2State::getNextState(), and Xabsl2IfElseBlock::getNextState().

Xabsl2Statement * Xabsl2Statement::createStatement (  Xabsl2InputSource &  input, Xabsl2Option *  subsequentOption, Xabsl2ErrorHandler &  errorHandler, Xabsl2Array< Xabsl2State * > &  states, Xabsl2Array< double > &  parameters, Xabsl2Symbols &  symbols, unsigned long &  timeOfOptionExecution, unsigned long &  timeOfStateExecution )  [static]

Creates a statement depending on the input. Parameters: input  An input source for the intermediate code. It must be opened and read until A position where a statement starts. subsequentOption  The subsequent option of the state. 0 if the subsequent behavior is a basic behavior errorHandler  A reference to a Xabsl2ErrorHandler instance states  All states of the option parameters  The parameters of the option symbols  All available symbols timeOfOptionExecution  The time how long the option is already active timeOfStateExecution  The time how long the state is already active Definition at line 11 of file Xabsl2Option.cpp. References Xabsl2ErrorHandler::error(), and Xabsl2InputSource::readString(). Referenced by Xabsl2State::create(), and Xabsl2IfElseBlock::Xabsl2IfElseBlock().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2Option.h
• Tools/Xabsl2/Xabsl2Engine/Xabsl2Option.cpp

---
