Xabsl2TransitionToState Class Reference

Represents a transition to a state inside a decision tree. More...

#include <Xabsl2Option.h>

Inheritance diagram for Xabsl2TransitionToState:

[legend]Collaboration diagram for Xabsl2TransitionToState:

[legend]List of all members.

Public Member Functions
	Xabsl2TransitionToState (Xabsl2InputSource &input, Xabsl2ErrorHandler &errorHandler, Xabsl2Array< Xabsl2State * > &states)
	Constructor.
virtual Xabsl2State *	getNextState ()
	Executes the statement and determines the next active state (can be the same).
Private Attributes
Xabsl2State *	nextState
	The state where that transition points to.

---

Detailed Description

Represents a transition to a state inside a decision tree.

Definition at line 117 of file Xabsl2Option.h.

---

Constructor & Destructor Documentation

Xabsl2TransitionToState::Xabsl2TransitionToState (  Xabsl2InputSource &  input, Xabsl2ErrorHandler &  errorHandler, Xabsl2Array< Xabsl2State * > &  states )

Constructor. Creates the transition object Parameters: input  An input source for the intermediate code. It must be opened and read until A position where a transition starts. errorHandler  A reference to a Xabsl2ErrorHandler instance states  All states of the option Definition at line 134 of file Xabsl2Option.cpp. References Xabsl2Array< T >::getElement(), Xabsl2ErrorHandler::message(), Xabsl2NamedItem::n, nextState, Xabsl2InputSource::readString(), and XABSL2_DEBUG_INIT.

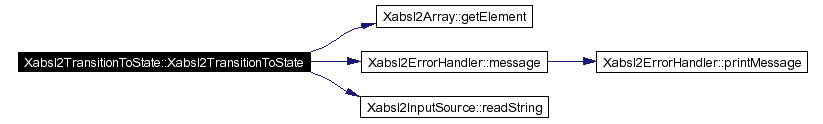

Here is the call graph for this function:

---

Member Function Documentation

Xabsl2State * Xabsl2TransitionToState::getNextState (   )  [virtual]

Executes the statement and determines the next active state (can be the same). Implements Xabsl2Statement. Definition at line 146 of file Xabsl2Option.cpp. References nextState.

---

Member Data Documentation

Xabsl2State* Xabsl2TransitionToState::nextState [private]

The state where that transition points to. Definition at line 136 of file Xabsl2Option.h. Referenced by getNextState(), and Xabsl2TransitionToState().

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2Option.h
• Tools/Xabsl2/Xabsl2Engine/Xabsl2Option.cpp

---
