Xabsl2DecimalExpression Class Reference

Base class for all decimal expressions inside an option graph. More...

#include <Xabsl2DecimalExpression.h>

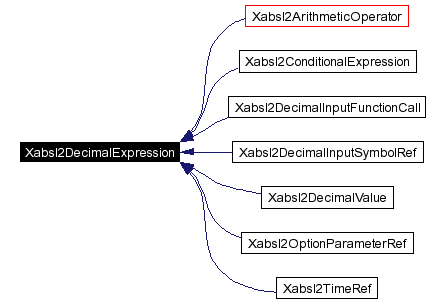

Inheritance diagram for Xabsl2DecimalExpression:

[legend]List of all members.

Public Member Functions
virtual double	getValue ()=0
	Calculates the value of the decimal expression.
virtual	~Xabsl2DecimalExpression ()=0
	Destructor.
Static Public Member Functions
Xabsl2DecimalExpression *	create (Xabsl2InputSource &input, Xabsl2Option *subsequentOption, Xabsl2ErrorHandler &errorHandler, Xabsl2Array< double > &parameters, Xabsl2Symbols &symbols, unsigned long &timeOfOptionExecution, unsigned long &timeOfStateExecution)
	Creates a decimal expression depending on the input.
bool	createOperand (Xabsl2DecimalExpression *&operand, Xabsl2InputSource &input, Xabsl2Option *subsequentOption, Xabsl2ErrorHandler &errorHandler, Xabsl2Array< double > &parameters, Xabsl2Symbols &symbols, unsigned long &timeOfOptionExecution, unsigned long &timeOfStateExecution)
	Creates a decimal expression depending on the input.

---

Detailed Description

Base class for all decimal expressions inside an option graph.

Author:

Martin Lötzsch

Definition at line 27 of file Xabsl2DecimalExpression.h.

---

Constructor & Destructor Documentation

Xabsl2DecimalExpression::~Xabsl2DecimalExpression (   )  [pure virtual]

Destructor. Definition at line 12 of file Xabsl2DecimalExpression.cpp.

---

Member Function Documentation

virtual double Xabsl2DecimalExpression::getValue (   )  [pure virtual]

Calculates the value of the decimal expression. Implemented in Xabsl2DecimalInputSymbolRef, Xabsl2DecimalValue, Xabsl2OptionParameterRef, Xabsl2ArithmeticOperator, Xabsl2PlusOperator, Xabsl2MinusOperator, Xabsl2MultiplyOperator, Xabsl2DivideOperator, Xabsl2ModOperator, Xabsl2TimeRef, Xabsl2DecimalInputFunctionCall, and Xabsl2ConditionalExpression. Referenced by Xabsl2ConditionalExpression::getValue(), Xabsl2ModOperator::getValue(), Xabsl2DivideOperator::getValue(), Xabsl2MultiplyOperator::getValue(), Xabsl2MinusOperator::getValue(), Xabsl2PlusOperator::getValue(), Xabsl2GreaterThanOrEqualToOperator::getValue(), Xabsl2GreaterThanOperator::getValue(), Xabsl2LessThanOrEqualToOperator::getValue(), Xabsl2LessThanOperator::getValue(), Xabsl2NotEqualToOperator::getValue(), and Xabsl2EqualToOperator::getValue().

Xabsl2DecimalExpression * Xabsl2DecimalExpression::create (  Xabsl2InputSource &  input, Xabsl2Option *  subsequentOption, Xabsl2ErrorHandler &  errorHandler, Xabsl2Array< double > &  parameters, Xabsl2Symbols &  symbols, unsigned long &  timeOfOptionExecution, unsigned long &  timeOfStateExecution )  [static]

Creates a decimal expression depending on the input. Parameters: input  An input source for the intermediate code. It must be opened and read until A position where a decimal expression starts. subsequentOption  The subsequent option of the state. 0 if the subsequent behavior is a basic behavior errorHandler  A reference to a Xabsl2ErrorHandler instance parameters  The parameters of the option symbols  All available symbols timeOfOptionExecution  The time how long the option is already active timeOfStateExecution  The time how long the state is already active Definition at line 16 of file Xabsl2DecimalExpression.cpp. References Xabsl2ArithmeticOperator::create(), createOperand(), Xabsl2ErrorHandler::error(), Xabsl2ErrorHandler::message(), Xabsl2InputSource::readString(), and XABSL2_DEBUG_INIT. Referenced by createOperand().

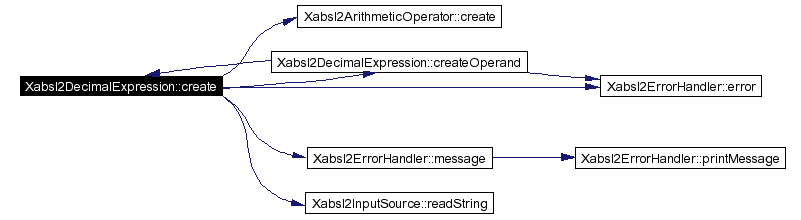

Here is the call graph for this function:

bool Xabsl2DecimalExpression::createOperand (  Xabsl2DecimalExpression *&  operand, Xabsl2InputSource &  input, Xabsl2Option *  subsequentOption, Xabsl2ErrorHandler &  errorHandler, Xabsl2Array< double > &  parameters, Xabsl2Symbols &  symbols, unsigned long &  timeOfOptionExecution, unsigned long &  timeOfStateExecution )  [static]

Creates a decimal expression depending on the input. Used by the create() function to create decimal operands. Parameters: operand  The expression to be created input  An input source for the intermediate code. It must be opened and read until A position where a decimal operand starts. subsequentOption  The subsequent option of the state. 0 if the subsequent behavior is a basic behavior errorHandler  A reference to a Xabsl2ErrorHandler instance parameters  The parameters of the option symbols  All available symbols timeOfOptionExecution  The time how long the option is already active timeOfStateExecution  The time how long the state is already active Returns: If the creation was successful Definition at line 105 of file Xabsl2DecimalExpression.cpp. References create(), Xabsl2ErrorHandler::error(), and Xabsl2ErrorHandler::errorsOccurred. Referenced by create(), Xabsl2BooleanExpression::create(), Xabsl2ConditionalExpression::Xabsl2ConditionalExpression(), and Xabsl2DecimalInputFunctionCall::Xabsl2DecimalInputFunctionCall().

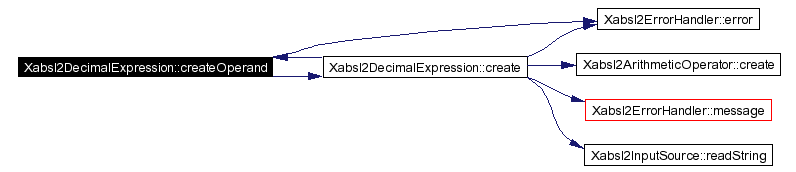

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2DecimalExpression.h
• Tools/Xabsl2/Xabsl2Engine/Xabsl2DecimalExpression.cpp

---
