Xabsl2DecimalInputFunctionCall Class Reference

Represents a reference to a decimal input function. More...

#include <Xabsl2DecimalExpression.h>

Inheritance diagram for Xabsl2DecimalInputFunctionCall:

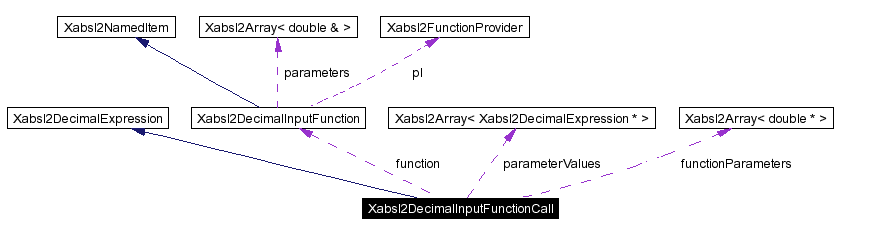

[legend]Collaboration diagram for Xabsl2DecimalInputFunctionCall:

[legend]List of all members.

Public Member Functions
virtual double	getValue ()
	Calculates the value of the decimal expression.
	Xabsl2DecimalInputFunctionCall (Xabsl2InputSource &input, Xabsl2Option *subsequentOption, Xabsl2ErrorHandler &errorHandler, Xabsl2Array< double > &parameters, Xabsl2Symbols &symbols, unsigned long &timeOfOptionExecution, unsigned long &timeOfStateExecution)
	Constructor.
	~Xabsl2DecimalInputFunctionCall ()
	Destructor.
Private Attributes
Xabsl2DecimalInputFunction *	function
	The referenced function.
Xabsl2Array< Xabsl2DecimalExpression * >	parameterValues
	Decimal expressions for the parameters.
Xabsl2Array< double * >	functionParameters
	Pointers to the function parameters.

---

Detailed Description

Represents a reference to a decimal input function.

Author:

Martin Lötzsch

Definition at line 302 of file Xabsl2DecimalExpression.h.

---

Constructor & Destructor Documentation

Xabsl2DecimalInputFunctionCall::Xabsl2DecimalInputFunctionCall (  Xabsl2InputSource &  input, Xabsl2Option *  subsequentOption, Xabsl2ErrorHandler &  errorHandler, Xabsl2Array< double > &  parameters, Xabsl2Symbols &  symbols, unsigned long &  timeOfOptionExecution, unsigned long &  timeOfStateExecution )

Constructor. Creates the function call depending on the input. Parameters: input  An input source for the intermediate code. It must be opened and read until A position where the function reference starts. subsequentOption  The subsequent option of the state. 0 if the subsequent behavior is a basic behavior errorHandler  A reference to a Xabsl2ErrorHandler instance parameters  The parameters of the option symbols  All available symbols timeOfOptionExecution  The time how long the option is already active timeOfStateExecution  The time how long the state is already active Definition at line 245 of file Xabsl2DecimalExpression.cpp. References Xabsl2Array< Xabsl2DecimalExpression * >::append(), Xabsl2Array< double * >::append(), Xabsl2DecimalExpression::createOperand(), Xabsl2ArrayElement< double & >::e, Xabsl2ErrorHandler::error(), Xabsl2Array< double & >::exists(), Xabsl2Symbols::existsDecimalInputFunction(), functionParameters, Xabsl2Symbols::getDecimalInputFunction(), Xabsl2Array< double & >::getPElement(), Xabsl2ErrorHandler::message(), Xabsl2NamedItem::n, Xabsl2DecimalInputFunction::parameters, parameterValues, Xabsl2InputSource::readString(), Xabsl2InputSource::readValue(), and XABSL2_DEBUG_INIT.

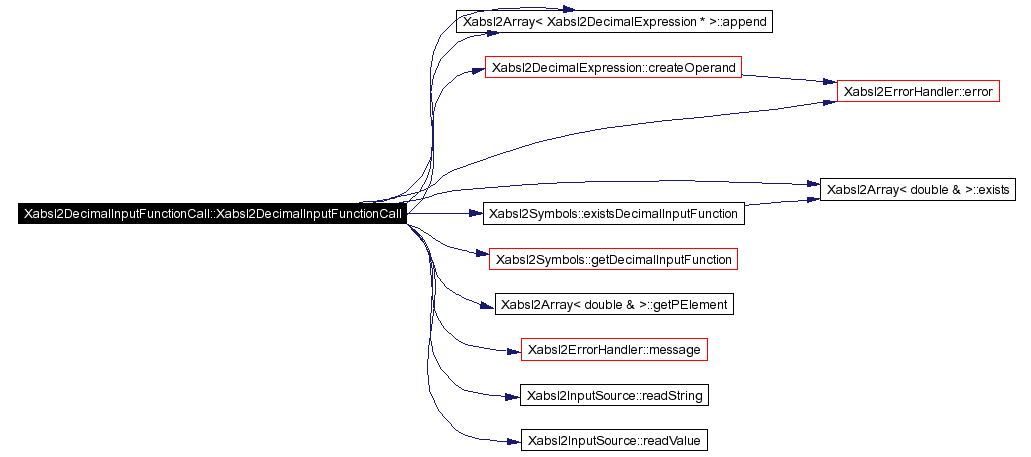

Here is the call graph for this function:

Xabsl2DecimalInputFunctionCall::~Xabsl2DecimalInputFunctionCall (   )

Destructor. Definition at line 290 of file Xabsl2DecimalExpression.cpp. References Xabsl2Array< Xabsl2DecimalExpression * >::getSize(), and parameterValues.

Here is the call graph for this function:

---

Member Function Documentation

double Xabsl2DecimalInputFunctionCall::getValue (   )  [virtual]

Calculates the value of the decimal expression. Implements Xabsl2DecimalExpression. Definition at line 297 of file Xabsl2DecimalExpression.cpp. References functionParameters, Xabsl2Array< double * >::getSize(), Xabsl2DecimalInputFunction::getValue(), and parameterValues.

Here is the call graph for this function:

---

Member Data Documentation

Xabsl2DecimalInputFunction* Xabsl2DecimalInputFunctionCall::function [private]

The referenced function. Definition at line 332 of file Xabsl2DecimalExpression.h.

Xabsl2Array<Xabsl2DecimalExpression*> Xabsl2DecimalInputFunctionCall::parameterValues [private]

Decimal expressions for the parameters. Definition at line 335 of file Xabsl2DecimalExpression.h. Referenced by getValue(), Xabsl2DecimalInputFunctionCall(), and ~Xabsl2DecimalInputFunctionCall().

Xabsl2Array<double*> Xabsl2DecimalInputFunctionCall::functionParameters [private]

Pointers to the function parameters. Definition at line 338 of file Xabsl2DecimalExpression.h. Referenced by getValue(), and Xabsl2DecimalInputFunctionCall().

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2DecimalExpression.h
• Tools/Xabsl2/Xabsl2Engine/Xabsl2DecimalExpression.cpp

---
