FieldDimensions Class Reference

Static class containing some useful functions regarding field dimensions. More...

#include <FieldDimensions.h>

List of all members.

Static Public Member Functions
bool	isInsideField (const Vector2< int > &p)
	Returns true when p is inside the field.
bool	isInsideField (int x, int y)
	Returns true when (x,y) is inside the field.
bool	isInsideGoal (const Vector2< int > &p)
	Returns true when p is inside one of the goals.
bool	isInsideGoal (int x, int y)
	Returns true when (x,y) is inside one of the goals.
bool	isInsideOwnGoal (const Vector2< int > &p)
	Returns true when p is inside the own goal.
bool	isInsideOpponentGoal (const Vector2< int > &p)
	Returns true when p is inside the opponent goal.
bool	isOnOwnGoalGroundline (const Vector2< int > &p)
	Returns true when p is on the groundline of the own goal.
bool	isOnOpponentGoalGroundline (const Vector2< int > &p)
	Returns true when p is on the groundline of the opponent goal.
double	distanceToOpponentPenaltyArea (const Vector2< double > &p)
	Returns the distance of p to opponents penalty area.
double	distanceToOwnPenaltyArea (const Vector2< double > &p)
	Returns the distance of p to own penalty area.
double	distanceToOwnPenaltyArea (const Pose2D &p)
double	distanceToBorder (const Vector2< double > &p)
	Returns the distance to the nearest field border.
void	vectorToBorder (const Vector2< double > &p, Vector2< double > &result)
	Returns the vector to the nearest field border.
void	vectorToBorderIncludingGoals (const Vector2< double > &p, Vector2< double > &result)
	Returns the vector to the nearest field border including the goals.
bool	clipLineWithField (Vector2< int > &point1, Vector2< int > &point2)
	Clips a line with the field.
bool	clipLineWithFieldAndGoalAreas (Vector2< int > &point1, Vector2< int > &point2)
	Clips a line with the field and the areas inside the goals.

---

Detailed Description

Static class containing some useful functions regarding field dimensions.

Author:

Max Risler

Definition at line 345 of file FieldDimensions.h.

---

Member Function Documentation

bool FieldDimensions::isInsideField (  const Vector2< int > &  p  )  [static]

Returns true when p is inside the field. Definition at line 101 of file FieldDimensions.cpp. References Geometry::getDistanceToLine(), Vector2< V >::x, and Vector2< V >::y. Referenced by distanceToBorder(), isInsideField(), vectorToBorder(), and vectorToBorderIncludingGoals().

Here is the call graph for this function:

bool FieldDimensions::isInsideField (  int  x, int  y )  [inline, static]

Returns true when (x,y) is inside the field. Definition at line 356 of file FieldDimensions.h. References isInsideField().

Here is the call graph for this function:

bool FieldDimensions::isInsideGoal (  const Vector2< int > &  p  )  [static]

Returns true when p is inside one of the goals. Definition at line 124 of file FieldDimensions.cpp. References Vector2< V >::x, and Vector2< V >::y. Referenced by isInsideGoal().

bool FieldDimensions::isInsideGoal (  int  x, int  y )  [inline, static]

Returns true when (x,y) is inside one of the goals. Definition at line 369 of file FieldDimensions.h. References isInsideGoal().

Here is the call graph for this function:

bool FieldDimensions::isInsideOwnGoal (  const Vector2< int > &  p  )  [static]

Returns true when p is inside the own goal. Definition at line 136 of file FieldDimensions.cpp. References Vector2< V >::x, and Vector2< V >::y. Referenced by vectorToBorderIncludingGoals().

bool FieldDimensions::isInsideOpponentGoal (  const Vector2< int > &  p  )  [static]

Returns true when p is inside the opponent goal. Definition at line 144 of file FieldDimensions.cpp. References Vector2< V >::x, and Vector2< V >::y. Referenced by vectorToBorderIncludingGoals().

bool FieldDimensions::isOnOwnGoalGroundline (  const Vector2< int > &  p  )  [static]

Returns true when p is on the groundline of the own goal. Definition at line 354 of file FieldDimensions.cpp. References Vector2< V >::x, and Vector2< V >::y.

bool FieldDimensions::isOnOpponentGoalGroundline (  const Vector2< int > &  p  )  [static]

Returns true when p is on the groundline of the opponent goal. Definition at line 363 of file FieldDimensions.cpp. References Vector2< V >::x, and Vector2< V >::y.

double FieldDimensions::distanceToOpponentPenaltyArea (  const Vector2< double > &  p  )  [static]

Returns the distance of p to opponents penalty area. Definition at line 11 of file FieldDimensions.cpp. References Vector2< V >::x, and Vector2< V >::y. Referenced by AngleSymbols::calculateCombinedAngles(), and GT2004StrategySymbols::computeRole().

double FieldDimensions::distanceToOwnPenaltyArea (  const Vector2< double > &  p  )  [static]

Returns the distance of p to own penalty area. Definition at line 51 of file FieldDimensions.cpp. Referenced by BallSymbols::getDistanceSeenBallToOwnPenaltyArea(), RobotPoseSymbols::getDistanceToOwnPenaltyArea(), and GT2004ObstaclesLocator::setObstaclesModel().

double FieldDimensions::distanceToOwnPenaltyArea (  const Pose2D &  p  )  [static]

Definition at line 57 of file FieldDimensions.cpp. References Pose2D::translation, Vector2< double >::x, and Vector2< double >::y.

double FieldDimensions::distanceToBorder (  const Vector2< double > &  p  )  [static]

Returns the distance to the nearest field border. Definition at line 153 of file FieldDimensions.cpp. References isInsideField(), min, Vector2< V >::x, and Vector2< V >::y.

Here is the call graph for this function:

void FieldDimensions::vectorToBorder (  const Vector2< double > &  p, Vector2< double > &  result )  [static]

Returns the vector to the nearest field border. Definition at line 169 of file FieldDimensions.cpp. References Geometry::Line::direction, Geometry::getDistanceToLine(), isInsideField(), Vector2< V >::normalize(), Vector2< double >::x, Vector2< V >::x, Vector2< double >::y, and Vector2< V >::y.

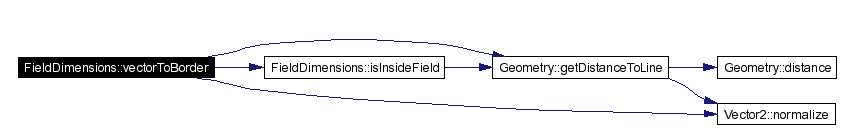

Here is the call graph for this function:

void FieldDimensions::vectorToBorderIncludingGoals (  const Vector2< double > &  p, Vector2< double > &  result )  [static]

Returns the vector to the nearest field border including the goals. Definition at line 237 of file FieldDimensions.cpp. References Geometry::Line::direction, Geometry::getDistanceToLine(), isInsideField(), isInsideOpponentGoal(), isInsideOwnGoal(), Vector2< V >::normalize(), Vector2< double >::x, Vector2< V >::x, Vector2< double >::y, and Vector2< V >::y.

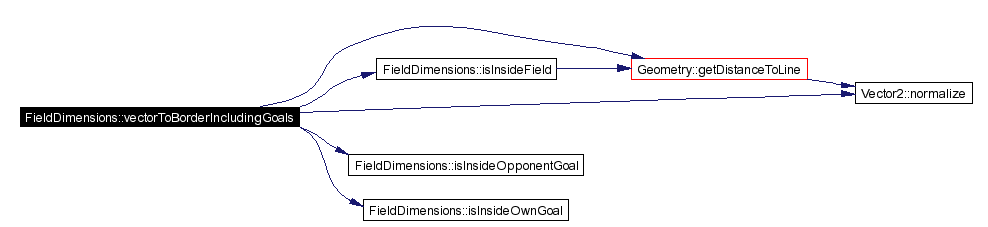

Here is the call graph for this function:

bool FieldDimensions::clipLineWithField (  Vector2< int > &  point1, Vector2< int > &  point2 )  [static]

Clips a line with the field. Parameters: point1  The starting point of the line point2  The end point of the line Returns: states whether clipping was necessary (and done) Definition at line 373 of file FieldDimensions.cpp. References Geometry::clipLineWithRectangleCohenSutherland(), Geometry::getDistanceToLine(), Geometry::getIntersectionOfLines(), Vector2< V >::x, and Vector2< V >::y.

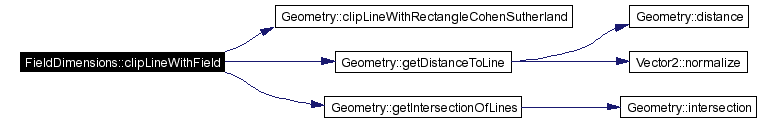

Here is the call graph for this function:

bool FieldDimensions::clipLineWithFieldAndGoalAreas (  Vector2< int > &  point1, Vector2< int > &  point2 )  [static]

Clips a line with the field and the areas inside the goals. Parameters: point1  The starting point of the line point2  The end point of the line Returns: states whether clipping was necessary (and done) Definition at line 455 of file FieldDimensions.cpp. References Geometry::clipLineWithRectangleCohenSutherland(), Vector2< V >::x, and Vector2< V >::y.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• Tools/FieldDimensions.h
• Tools/FieldDimensions.cpp

---
