Tools/RobotConfiguration.h File Reference

Definition of class RobotConfiguration. More...

#include "Tools/MessageQueue/InMessage.h"
#include "Platform/SystemCall.h"
#include "Tools/Actorics/RobotDimensions.h"

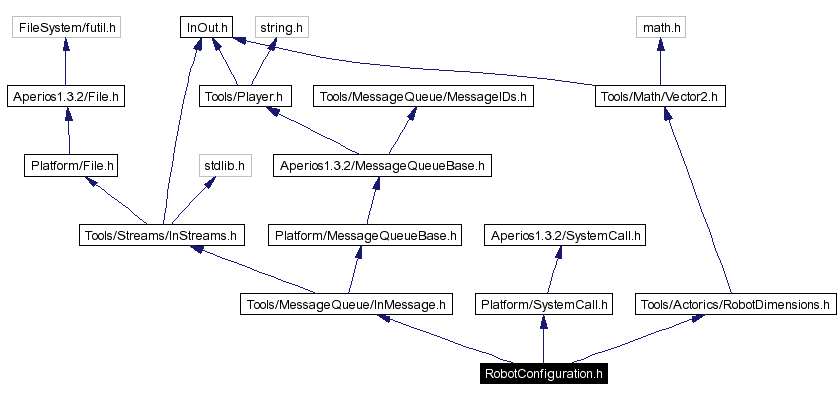

Include dependency graph for RobotConfiguration.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	RobotCalibration
	A class that represents the calibration of the robot. More...
class	RobotConfiguration
	A class that represents the configuration of the robot. More...
Functions
RobotConfiguration &	getRobotConfiguration ()
	Returns a reference to a process wide RobotConfiguration configuration.
In &	operator>> (In &stream, RobotConfiguration &robotConfiguration)
	Streaming operator that reads a RobotConfiguration from a stream.
Out &	operator<< (Out &stream, const RobotConfiguration &robotConfiguration)
	Streaming operator that writes a RobotConfiguration to a stream.

---

Detailed Description

Definition of class RobotConfiguration.

Author:

Thomas Röfer

Definition in file RobotConfiguration.h.

---

Function Documentation

RobotConfiguration& getRobotConfiguration (   )

Returns a reference to a process wide RobotConfiguration configuration. Definition at line 18 of file RobotConfiguration.cpp. References PlatformProcess::getRobotIndex(), and theRobotConfiguration. Referenced by Field::addPlayer(), BB2004InvKinWalkingEngine::BB2004InvKinWalkingEngine(), Kinematics::calcAbsRollJoints(), Kinematics::calcHeadHeight(), Kinematics::calcHighestPossibleTilt(), Kinematics::calcLowestPossibleTilt(), Kinematics::calcNeckAndLegPositions(), Kinematics::calcNoseHeight(), Kinematics::calcRelativeRobotVertices(), Kinematics::calculateCameraMatrix(), Geometry::calculateScaleFactor(), BallPercept::checkOffset(), GT2004SelfLocator::draw(), CheckerboardDetector::execute(), GT2004ImageProcessor::execute(), GT2004GetupEngine::executeParameterized(), GT2004WalkingEngine::executeParameterized(), InvKinWalkingEngine::executeParameterized(), Kinematics::getAbsoluteRobotVertices(), Kinematics::getRelativeRobotVertices(), GT2004HeadControl::GT2004HeadControl(), Cognition::handleMessage(), Motion::handleMessage(), GT2004BallLocator::handleSeenBall(), HeadControl::HeadControl(), GT2004HeadPathPlanner::init(), CalibrationIndividual::init(), InvKinWalkingParameters::init(), Cognition::init(), Kinematics::jointsFromLegPosition(), Kinematics::kneePositionFromJoints(), Kinematics::legPositionFromJoints(), GT2004ParametersSet::load(), BB2004InvKinWalkingEngine::loadParameters(), Debug::main(), Logger::main(), MotionControl::MotionControl(), Process::Process(), GT2003MotionNetSpecialActions::readOdometryTable(), RobotStateDetector::RobotStateDetector(), GT2004ParametersSet::save(), CalibrationIndividual::select(), SensorDataProcessor::SensorDataProcessor(), PIDData::setToDefaults(), Kinematics::transformToLegBase(), RobotPoseSymbols::updateGoalieDefendPosition(), and WalkingEngine::WalkingEngine().

Here is the call graph for this function:

In& operator>> (  In &  stream, RobotConfiguration &  robotConfiguration )

Streaming operator that reads a RobotConfiguration from a stream. Parameters: stream  The stream from which is read. robotConfiguration  The RobotConfiguration object. Returns: The stream. Definition at line 92 of file RobotConfiguration.cpp. References In::read().

Here is the call graph for this function:

Out& operator<< (  Out &  stream, const RobotConfiguration &  robotConfiguration )

Streaming operator that writes a RobotConfiguration to a stream. Parameters: stream  The stream to write on. robotConfiguration  The RobotConfiguration object. Returns: The stream. Definition at line 98 of file RobotConfiguration.cpp. References Out::write().

Here is the call graph for this function:

---
