Tools/Debugging/Debugging.h File Reference

Macros and functions for debugging. More...

#include "Tools/Debugging/DebugKeyTable.h"
#include "Tools/MessageQueue/OutMessage.h"

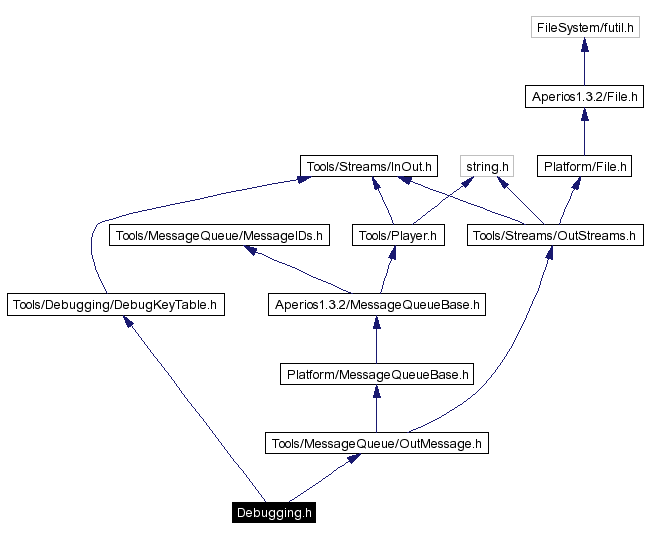

Include dependency graph for Debugging.h:

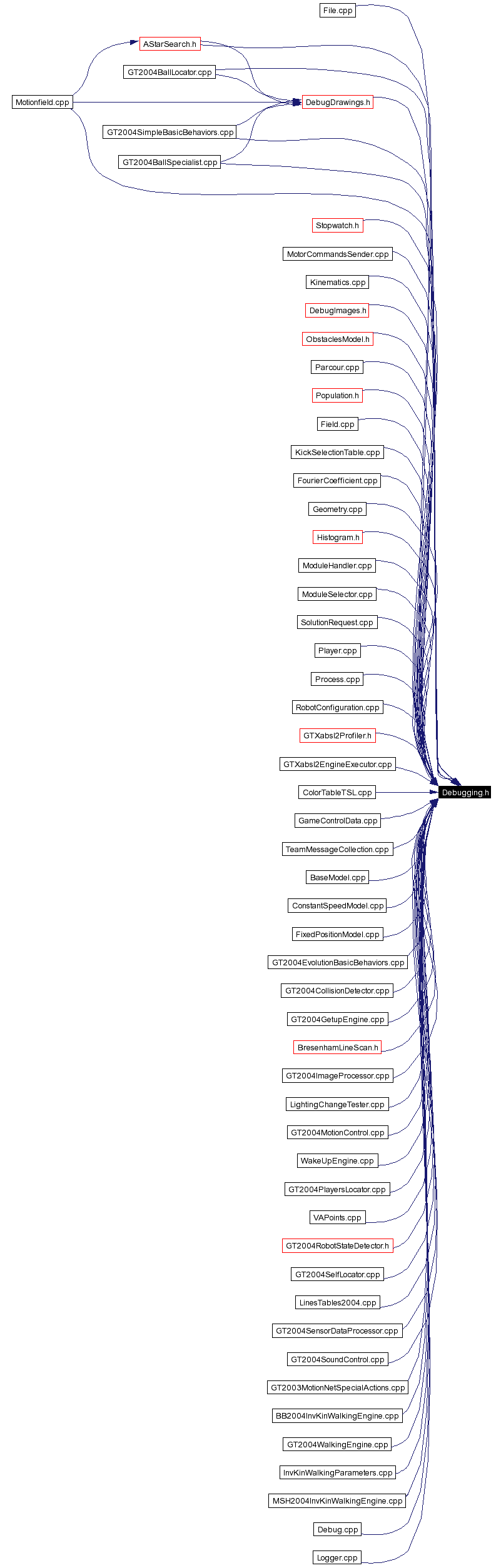

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	INFO(key, type, format, expression)
	A macro for sending debug messages depending on a debug key.
#define	OUTPUT(type, format, expression)
	A macro for sending debug messages.
#define	WATCH(key, type, format, expression)   INFO(key,type,format,expression);
	A macro for sending debug messages that differs between Windows and Aperios.
Functions
void	initDebugging (OutMessage *queue, DebugKeyTable *table)
	Sets a pointer to an OutMessage and to a DebugKeyTable to be used by the macros.
OutMessage &	getDebugOut ()
	Returns a reference to a process wide OutMessage.
DebugKeyTable &	getDebugKeyTable ()
	Returns a reference to a process wide debug key table.

---

Detailed Description

Macros and functions for debugging.

Author:

Martin Lötzsch

Definition in file Debugging.h.

---

Define Documentation

#define INFO (  key, type, format, expression   )

Value: if (getDebugKeyTable().isActive(DebugKeyTable::key)) {\ getDebugOut().format << expression;\ getDebugOut().finishMessage(type);\ }\ A macro for sending debug messages depending on a debug key. Parameters: key  A key from the DebugKeyTable::debugKeyID enum. type  The type of the message from the MessageID enum in MessageIDs.h format  The message format of the message (bin or text) expression  A streamable expression Examples: INFO(sendImages,idImage,bin,myImage); INFO(sendInterestingValue,idInterestingValue,text,"value: " << value); INFO(sendWorldState,idWorldState,bin,worldState); Definition at line 61 of file Debugging.h. Referenced by CollectedBeliefs::broadcast(), DefaultTacticChooser::chooseOption(), MSH2004InvKinWalkingEngine::executeParameterized(), Motion::main(), Logger::main(), Debug::main(), Cognition::main(), DDPHandler::onReceive(), TeamMessageCollection::processTimeStamps(), and KickLogger::record().

#define OUTPUT (  type, format, expression   )

Value: { getDebugOut().format << expression;\ getDebugOut().finishMessage(type); } A macro for sending debug messages. Parameters: type  The type of the message from the MessageID enum in MessageIDs.h format  The message format of the message (bin or text) expression  A streamable expression Examples: OUTPUT(idImage, bin, *pMyImage); OUTPUT(idText, text, "MyObject::myFunction() invoked"); OUTPUT(idText, text, "i: " << i << ", j:" << j); Definition at line 81 of file Debugging.h. Referenced by GT2004EdgeSpecialist::addCandidate(), GT2004ObstaclesLocator::addObstaclePoint(), GT2004ObstaclesLocator::addObstaclePoints(), RFieldSpecialist::analyzeLines(), BoxSpecialist::BoxSpecialist(), GT2004HeadControl::calibrateHeadSpeed(), RFieldSpecialist::checkRamp(), GT2004SoundControl::checkWaveHeader(), GT2004BallSpecialist::createBallPerceptLevenbergMarquardt(), RasterSpecialist::createSegmentsFromLines(), DefaultTacticChooser::DefaultTacticChooser(), RasterSpecialist::doColorSegmentation(), LandmarksPercept::estimateOffsetForGoals(), BB2004Calibrator::evolve(), ObstacleAvoiderOnGreenField::execute(), ImageSaver::execute(), NoOdometrySelfLocator::execute(), GT2004BasicBehaviorNextGT2004ParametersToBeMeasured::execute(), GT2004BasicBehaviorSendCurrentGT2004ParametersAndChooseNext::execute(), GT2004BasicBehaviorMeasureGT2004ParametersBlind::execute(), GT2004BasicBehaviorMeasureGT2004Parameters::execute(), GT2004BasicBehaviorEvolveOmniParameters::execute(), RBridgeSpecialist::findBridgeMark(), RBridgeSpecialist::getPosition(), Parcour::getUnifiedSpeed(), GTXabsl2EngineExecutor::handleMessage(), Process::handleMessage(), Cognition::handleMessage(), GT2004WalkingEngine::handleMessage(), ObstacleAvoiderOnGreenFieldERS7::handleMessage(), ObstacleAvoiderOnGreenField::handleMessage(), NoOdometrySelfLocator::handleMessage(), GT2004ObstaclesLocator::handleMessage(), GT2004MotionControl::handleMessage(), GT2004BehaviorControl::handleMessage(), GT2004BallLocator::handleSeenBall(), GT2004BallLocator::handleUnseenBall(), ModuleSelector::init(), Cognition::init(), BB2004InvKinWalkingEngine::learn(), LightingChangeTester::lightingHasChanged(), LinesTables2004::LinesTables2004(), GT2004SoundControl::loadWavefile(), Motion::main(), Cognition::main(), UDPHandlerEndpoint::onReceive(), KalmanProcessModelBase::OutputException(), Population< GT2004Parameters, 10 >::outputStatistics(), GTXabsl2ErrorHandler::printError(), GTXabsl2ErrorHandler::printMessage(), RBallSpecialist2::RBallSpecialist2(), RDefaultStrategy::RDefaultStrategy(), GT2003MotionNetSpecialActions::readOdometryTable(), InvKinWalkingParameters::readValues(), ModuleHandler::selectSolution(), KalmanFixedPositionModel::update(), and KalmanConstantSpeedModel::update().

#define WATCH (  key, type, format, expression   )     INFO(key,type,format,expression);

A macro for sending debug messages that differs between Windows and Aperios. The parameters equal to the parameters if the INFO macro. Different from INFO, the output is sent automatically on the WIN32 platform Definition at line 103 of file Debugging.h. Referenced by Logger::main(), and Cognition::main().

---

Function Documentation

void initDebugging (  OutMessage *  queue, DebugKeyTable *  table )

Sets a pointer to an OutMessage and to a DebugKeyTable to be used by the macros. Parameters: queue  A pointer to an OutMessage. table  A pointer to a DebugKeyTable. Definition at line 18 of file Debugging.cpp. References debugKeyTable, debugOut, and PlatformProcess::getIndex(). Referenced by Process::Process().

Here is the call graph for this function:

OutMessage& getDebugOut (   )

Returns a reference to a process wide OutMessage. Definition at line 25 of file Debugging.cpp. References debugOut, and PlatformProcess::getIndex(). Referenced by CalibrationIndividual::dump(), BBInvKinIndividual::dump(), BB2004Calibrator::evolve(), GT2004BallLocator::handleMessage(), BB2004InvKinWalkingEngine::learn(), GTXabsl2EngineExecutor::sendDebugMessage(), and GT2004BallLocator::sendProcessModelStates().

Here is the call graph for this function:

DebugKeyTable& getDebugKeyTable (   )

Returns a reference to a process wide debug key table. Definition at line 30 of file Debugging.cpp. References debugKeyTable, and PlatformProcess::getIndex(). Referenced by GTXabsl2EngineExecutor::executeEngine(), BB2004InvKinWalkingEngine::executeParameterized(), and BB2004InvKinWalkingEngine::updateOdometry().

Here is the call graph for this function:

---
