SenderBase< T > Class Template Reference

The class implements a the base class for senders. More...

#include <Sender.h>

Inheritance diagram for SenderBase< T >:

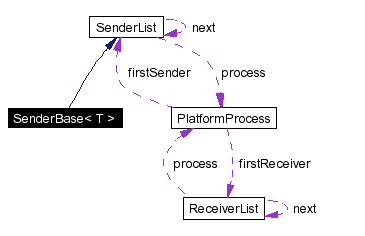

[legend]Collaboration diagram for SenderBase< T >:

[legend]List of all members.

Public Member Functions
	SenderBase (PlatformProcess *process, const char *senderName, bool blocking)
	The constructor.
int	fillEntryTable (ObjectEntry *entryTable, int id)
	Fills the Aperios entry table for global functions.
bool	requestedNew () const
	Returns whether a new package was requested from the sender.
void	send ()
	Marks the package for sending and transmits it to all receivers that already requested for it.
Protected Member Functions
virtual void	preparePackage ()
	The function prepares a package.
virtual void	setPackage (const ObserverID &receiver)
	The functions sets a package for a receiver.
virtual void	freePackage ()
	The function frees the package.
Private Member Functions
void	handleMessage (OReadyMessage &msg)
	The function is called when a receiver announces that it is ready to receive a package.
void	sendPackage ()
	The function sends a package to all receivers that requested it.
Static Private Member Functions
void	aperiosControl (OControlMessage *msg)
	The Aperios control handler.
void	aperiosReady (OReadyMessage *msg)
	The Aperios handler that is called when a receiver announces that it is ready to receive a package.
Private Attributes
ObserverID	receiver [RECEIVERS_MAX]
	A list of all receivers that are ready to receive a package.
ObserverID	alreadyReceived [RECEIVERS_MAX]
	A list of all receivers that have already received the current package.
int	numOfReceivers
	The number of entries in the receiver list.
int	numOfAlreadyReceived
	The number of entries in the alreadyReceived list.
Static Private Attributes
SenderBase< T > *	theInstance = 0
	The only instance of SenderBase<T>.

---

Detailed Description

template<class T>
class SenderBase< T >

The class implements a the base class for senders.

A sender is an object that sends packages to an Aperios queue. Note that the template parameter is required to force a different instantiation of the static members for each package type.

Definition at line 106 of file Sender.h.

---

Constructor & Destructor Documentation

template<class T> SenderBase< T >::SenderBase (  PlatformProcess *  process, const char *  senderName, bool  blocking )  [inline]

The constructor. Parameters: process  The process this sender is associated with. senderName  The Aperios connection name of the sender without the process name. blocking  Decides whether this sender blocks the execution of the next frame until all connected receivers have requested a new package. Definition at line 236 of file Sender.h.

---

Member Function Documentation

template<class T> void SenderBase< T >::handleMessage (  OReadyMessage &  msg  )  [inline, private]

The function is called when a receiver announces that it is ready to receive a package. Parameters: msg  An Open-R message that contains the object id of the receiver. Todo: Currently, assert fails in conjunction with wlan, so avoid crash! However, it may work correctly, because TCPGateway will be the only receiver. Definition at line 120 of file Sender.h.

template<class T> void SenderBase< T >::aperiosControl (  OControlMessage *  msg  )  [inline, static, private]

The Aperios control handler. Parameters: msg  A message provided by Aperios. Definition at line 143 of file Sender.h.

template<class T> void SenderBase< T >::aperiosReady (  OReadyMessage *  msg  )  [inline, static, private]

The Aperios handler that is called when a receiver announces that it is ready to receive a package. Parameters: msg  An Open-R message that contains the object id of the receiver. Definition at line 153 of file Sender.h.

template<class T> virtual void SenderBase< T >::preparePackage (   )  [inline, protected, virtual]

The function prepares a package. The function should be pure virtual, but GreenHills does not like that. Reimplemented in MotorCommandsSender, Sender< T >, SoundDataSender, and Sender< MessageQueue >. Definition at line 164 of file Sender.h. Referenced by SenderBase< MotorCommands >::sendPackage().

template<class T> virtual void SenderBase< T >::setPackage (  const ObserverID &  receiver  )  [inline, protected, virtual]

The functions sets a package for a receiver. The function should be pure virtual, but GreenHills does not like that. Parameters: receiver  The receive the package will be sent to. Reimplemented in MotorCommandsSender, Sender< T >, SoundDataSender, and Sender< MessageQueue >. Definition at line 171 of file Sender.h. Referenced by SenderBase< MotorCommands >::sendPackage().

template<class T> virtual void SenderBase< T >::freePackage (   )  [inline, protected, virtual]

The function frees the package. The function should be pure virtual, but GreenHills does not like that. Reimplemented in MotorCommandsSender, Sender< T >, SoundDataSender, and Sender< MessageQueue >. Definition at line 177 of file Sender.h. Referenced by SenderBase< MotorCommands >::sendPackage().

template<class T> void SenderBase< T >::sendPackage (   )  [inline, private, virtual]

The function sends a package to all receivers that requested it. Implements SenderList. Definition at line 183 of file Sender.h. Referenced by SenderBase< MotorCommands >::send().

template<class T> int SenderBase< T >::fillEntryTable (  ObjectEntry *  entryTable, int  id )  [inline, virtual]

Fills the Aperios entry table for global functions. The function will write two entries into the table. Parameters: entryTable  The Aperios entry table. id  The first empty id in the entry table. Returns: The new first empty id in the entry table. Implements SenderList. Definition at line 251 of file Sender.h.

template<class T> bool SenderBase< T >::requestedNew (   )  const [inline]

Returns whether a new package was requested from the sender. This is always true if this is a blocking sender. Returns: Has a new package been requested? Definition at line 268 of file Sender.h. Referenced by MultiDebugSender< MessageQueue >::send().

template<class T> void SenderBase< T >::send (  void   )  [inline]

Marks the package for sending and transmits it to all receivers that already requested for it. All other receiver may get it later if they request for it before the package is changed. Reimplemented in MultiDebugSender< T >, and MultiDebugSender< MessageQueue >. Definition at line 274 of file Sender.h. Referenced by MultiDebugSender< MessageQueue >::send().

---

Member Data Documentation

template<class T> SenderBase< T > * SenderBase< T >::theInstance = 0 [static, private]

The only instance of SenderBase<T>. Definition at line 282 of file Sender.h.

template<class T> ObserverID SenderBase< T >::receiver[RECEIVERS_MAX] [private]

A list of all receivers that are ready to receive a package. Definition at line 110 of file Sender.h.

template<class T> ObserverID SenderBase< T >::alreadyReceived[RECEIVERS_MAX] [private]

A list of all receivers that have already received the current package. Definition at line 110 of file Sender.h.

template<class T> int SenderBase< T >::numOfReceivers [private]

The number of entries in the receiver list. Definition at line 112 of file Sender.h.

template<class T> int SenderBase< T >::numOfAlreadyReceived [private]

The number of entries in the alreadyReceived list. Definition at line 112 of file Sender.h.

---

The documentation for this class was generated from the following file:

• Platform/Aperios1.3.2/Sender.h

---
