Tools/Process.h File Reference

Contains the definition of class Process and macros for receivers and senders. More...

#include "Tools/MessageQueue/MessageQueue.h"
#include "Tools/Debugging/DebugKeyTable.h"
#include "Tools/Module/ModuleHandler.h"
#include "Platform/ProcessFramework.h"

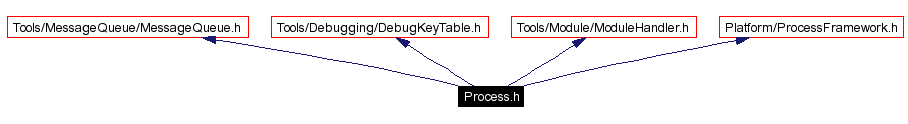

Include dependency graph for Process.h:

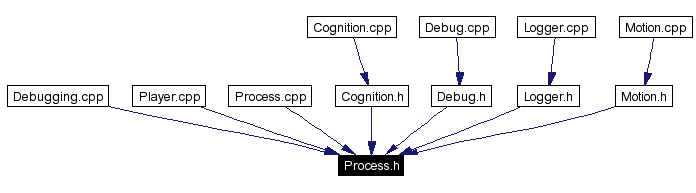

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Process
	System independent base class for Processes. More...
class	MultiDebugSender
	This template class implements a sender for debug packages. More...
class	DebugSender
	This class implements a sender for MessageQueues. More...
Defines
#define	DEBUGGING
	The macro declares two debugging queues.
#define	INIT_DEBUGGING
	The macro initializes the two debugging queues and the base class.
#define	RECEIVER(type)   Receiver<type> the##type##Receiver
	The macro declares a receiver.
#define	INIT_RECEIVER(type, blocking)   the##type##Receiver(this,"Receiver." #type ".O",blocking)
	The macro initializes a receiver for a certain type.
#define	SENDER(type)   Sender<type> the##type##Sender
	The macro declares a sender.
#define	INIT_SENDER(type, blocking)   the##type##Sender(this,"Sender." #type ".S",blocking)
	The macro initializes a sender for a certain type.
#define	DEBUG_RECEIVER(source)
	The macro declares a receiver for a MessageQueue.
#define	INIT_DEBUG_RECEIVER(source)   the##source##Receiver(this,#source "Receiver.MessageQueue.O",false) \
	The macro initializes a receiver for a MessageQueue.
#define	DEBUG_SENDER(target)
	The macro declares a sender for a MessageQueue.
#define	INIT_DEBUG_SENDER(target)   the##target##Sender(this,#target "Sender.MessageQueue.S",false)
	The macro initializes a sender for a MessageQueue.

---

Detailed Description

Contains the definition of class Process and macros for receivers and senders.

Definition in file Process.h.

---

Define Documentation

#define DEBUGGING

Value: Receiver<MessageQueue> theDebugReceiver; \ DebugSender theDebugSender The macro declares two debugging queues. The macro shall be the first entry in the declaration of a process. Definition at line 144 of file Process.h.

#define INIT_DEBUGGING

Value: Process(theDebugReceiver,theDebugSender), \ theDebugReceiver(this,"Receiver.MessageQueue.O",false), \ theDebugSender(this,"Sender.MessageQueue.S",false) The macro initializes the two debugging queues and the base class. The macro shall be the first entry after the colon in constructor of the process. Definition at line 153 of file Process.h. Referenced by Cognition::Cognition(), Logger::Logger(), and Motion::Motion().

#define RECEIVER (  type   )     Receiver<type> the##type##Receiver

The macro declares a receiver. It must be used inside a declaration of a process, after the macro DEBUGGING. Parameters: type  The type of the package. The variable actually declared has a type compatible to "type" and is called "thetypeReceiver". Definition at line 164 of file Process.h.

#define INIT_RECEIVER (  type, blocking   )     the##type##Receiver(this,"Receiver." #type ".O",blocking)

The macro initializes a receiver for a certain type. It must be part of the initializer list of the constructor of the process. Parameters: type  The type of the package. The variable actually declared has a type compatible to "type" and is called "thetypeReceiver". blocking  Decides whether this receiver blocks the execution of the next frame until it has received a package. Definition at line 175 of file Process.h. Referenced by Cognition::Cognition(), and Motion::Motion().

#define SENDER (  type   )     Sender<type> the##type##Sender

The macro declares a sender. It must be used inside a declaration of a process, after the macro DEBUGGING. Parameters: type  The type of the package. The variable actually declared has a type compatible to "type" and is called "thetypeSender". Definition at line 184 of file Process.h.

#define INIT_SENDER (  type, blocking   )     the##type##Sender(this,"Sender." #type ".S",blocking)

The macro initializes a sender for a certain type. It must be part of the initializer list of the constructor of the process. Parameters: type  The type of the package. The variable actually declared has a type compatible to "type" and is called "thetypeSender". blocking  Decides whether this sender blocks the execution of the next frame until all connected receivers have requested a new package. Definition at line 195 of file Process.h. Referenced by Cognition::Cognition(), and Motion::Motion().

#define DEBUG_RECEIVER (  source   )

Value: class Receive##source##MessageQueue : public MessageQueue {}; \ Receiver<Receive##source##MessageQueue> the##source##Receiver The macro declares a receiver for a MessageQueue. It must be used inside a declaration of a process, after the macro DEBUGGING. It shall only be used in the Debug process. Parameters: source  The source process of the package. The variable actually declared is of type MessageQueue and is called "thesourceReceiver". Definition at line 205 of file Process.h.

#define INIT_DEBUG_RECEIVER (  source   )     the##source##Receiver(this,#source "Receiver.MessageQueue.O",false) \

The macro initializes a receiver for a MessageQueue. It must be part of the initializer list of the constructor of the process. Parameters: source  The source process of the package. The variable actually declared is of type MessageQueue and is called "thesourceReceiver". Definition at line 215 of file Process.h. Referenced by Debug::Debug().

#define DEBUG_SENDER (  target   )

Value: class Send##target##MessageQueue : public MessageQueue {}; \ MultiDebugSender<Send##target##MessageQueue> the##target##Sender The macro declares a sender for a MessageQueue. It must be used inside a declaration of a process, after the macro DEBUGGING. It shall only be used in the Debug process. Parameters: target  The target process of the package. The variable actually declared is of type MessageQueue and is called "thetargetReceiver". Definition at line 225 of file Process.h.

#define INIT_DEBUG_SENDER (  target   )     the##target##Sender(this,#target "Sender.MessageQueue.S",false)

The macro initializes a sender for a MessageQueue. It must be part of the initializer list of the constructor of the process. Parameters: target  The target process of the package. The variable actually declared is of type MessageQueue and is called "thetargetSender". Definition at line 235 of file Process.h. Referenced by Debug::Debug().

---
