Receiver< T > Class Template Reference

The class implements a receiver. More...

#include <Receiver.h>

Inheritance diagram for Receiver< T >:

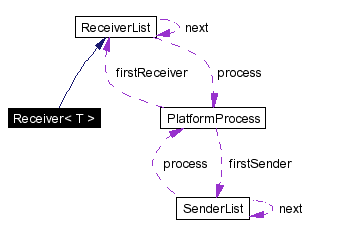

[legend]Collaboration diagram for Receiver< T >:

[legend]List of all members.

Public Member Functions
	Receiver (PlatformProcess *process, const char *receiverName, bool blocking)
	The constructor.
virtual int	fillEntryTable (ObjectEntry *entryTable, int id)
	Fills the Aperios entry table for global functions.
Protected Member Functions
virtual void	handleMessage (ONotifyMessage &msg)
	The function is called when a new package arrived.
Static Protected Member Functions
void	aperiosConnect (OConnectMessage *msg)
	The Aperios connection handler.
void	aperiosNotify (ONotifyMessage *msg)
	The Aperios handler that is called when a package is received.
Static Protected Attributes
Receiver< T > *	theInstance = 0
	The only instance of Receiver<T>.

---

Detailed Description

template<class T>
class Receiver< T >

The class implements a receiver.

A receiver is an object that reads packages from an Aperios queue.

Definition at line 104 of file Receiver.h.

---

Constructor & Destructor Documentation

template<class T> Receiver< T >::Receiver (  PlatformProcess *  process, const char *  receiverName, bool  blocking )  [inline]

The constructor. Parameters: process  The process this receiver is associated with. receiverName  The Aperios connection name of the receiver without the process name. blocking  Decides whether this receiver blocks the execution of the next frame until it has received a package. Definition at line 153 of file Receiver.h.

---

Member Function Documentation

template<class T> virtual void Receiver< T >::handleMessage (  ONotifyMessage &  msg  )  [inline, protected, virtual]

The function is called when a new package arrived. Parameters: msg  An Open-R message that contains the package. Definition at line 113 of file Receiver.h. References ASSERT, InStream< InMemory, InBinary >::eof(), and ReceiverList::setEventId().

Here is the call graph for this function:

template<class T> void Receiver< T >::aperiosConnect (  OConnectMessage *  msg  )  [inline, static, protected]

The Aperios connection handler. Parameters: msg  A message provided by Aperios. Definition at line 129 of file Receiver.h.

template<class T> void Receiver< T >::aperiosNotify (  ONotifyMessage *  msg  )  [inline, static, protected]

The Aperios handler that is called when a package is received. Parameters: msg  A message provided by Aperios that contains the package. Definition at line 139 of file Receiver.h.

template<class T> virtual int Receiver< T >::fillEntryTable (  ObjectEntry *  entryTable, int  id )  [inline, virtual]

Fills the Aperios entry table for global functions. The function will write two entries into the table. Parameters: entryTable  The Aperios entry table. id  The first empty id in the entry table. Returns: The new first empty id in the entry table. Implements ReceiverList. Definition at line 166 of file Receiver.h. References ASSERT, ENTRY_TABLE_MIN, and ReceiverList::setBlockingId().

Here is the call graph for this function:

---

Member Data Documentation

template<class T> Receiver< T > * Receiver< T >::theInstance = 0 [static, protected]

The only instance of Receiver<T>. Definition at line 180 of file Receiver.h.

---

The documentation for this class was generated from the following file:

• Platform/Aperios1.3.2/Receiver.h

---
