ReceiverList Class Reference

The class is the base class for receivers. More...

#include <Receiver.h>

Inheritance diagram for ReceiverList:

[legend]Collaboration diagram for ReceiverList:

[legend]List of all members.

Public Member Functions
	ReceiverList (PlatformProcess *process, const char *receiverName, bool blocking)
	The constructor.
ReceiverList *&	getFirst ()
	Returns the begin of the list of all receivers.
ReceiverList *	getNext () const
	Returns the next receiver in the list.
const char *	getName () const
	Returns the Aperios connection name of the receiver.
virtual int	fillEntryTable (ObjectEntry *entryTable, int id)=0
	Fills the Aperios entry table for global functions.
bool	receivedNew () const
	Returns whether a new package was received in the current frame.
void	finishFrame ()
	The function must be called to finish the current frame.
Static Public Member Functions
void	setBlockingId (int id, bool block=true)
	The functions sets or resets a bit in the blocking mask.
void	setEventId (int id)
	The function is called when an event was received.
Protected Attributes
int	eventId
	The id of the current receiver in the range [0..30].
bool	blocking
	Stores whether this is a blocking receiver.
Private Attributes
PlatformProcess *	process
	The process this receiver is associated with.
ReceiverList *	next
	The successor of the current receiver.
char	name [NAME_LENGTH_MAX]
	The name of a receiver without the module's name.

---

Detailed Description

The class is the base class for receivers.

A receiver is an object that reads packages from Aperios queues. The class manages a global list of all receivers in an Aperios process.

Definition at line 21 of file Receiver.h.

---

Constructor & Destructor Documentation

ReceiverList::ReceiverList (  PlatformProcess *  process, const char *  receiverName, bool  blocking )

The constructor. Parameters: process  The process this receiver is associated with. receiverName  The Aperios connection name of the receiver without the process name. blocking  Decides whether this receiver blocks the execution of the next frame until it has received a package. Definition at line 7 of file Receiver.cpp. References getFirst(), and next.

Here is the call graph for this function:

---

Member Function Documentation

ReceiverList *& ReceiverList::getFirst (   )

Returns the begin of the list of all receivers. Returns: The first receiver in the list, or 0 if the list ist empty. Definition at line 25 of file Receiver.cpp. References PlatformProcess::getFirstReceiver(). Referenced by finishFrame(), and ReceiverList().

Here is the call graph for this function:

ReceiverList* ReceiverList::getNext (   )  const [inline]

Returns the next receiver in the list. Returns: The next receiver in the list, or 0 if this receiver is the last one. Definition at line 52 of file Receiver.h. References next. Referenced by ProcessCreator< T >::DoInit(), ProcessCreator< T >::DoStart(), ProcessCreator< T >::DoStop(), finishFrame(), and ProcessBase::init().

const char* ReceiverList::getName (   )  const [inline]

Returns the Aperios connection name of the receiver. Returns: The Aperios connection name without the process name ("Receiver.type.O") Definition at line 58 of file Receiver.h. Referenced by ProcessCreator< T >::DoInit().

virtual int ReceiverList::fillEntryTable (  ObjectEntry *  entryTable, int  id )  [pure virtual]

Fills the Aperios entry table for global functions. The function will write two entries into the table. Parameters: entryTable  The Aperios entry table. id  The first empty id in the entry table. Returns: The new first empty id in the entry table. Implemented in Receiver< T >. Referenced by ProcessBase::init().

bool ReceiverList::receivedNew (   )  const

Returns whether a new package was received in the current frame. This is always true if this is a blocking receiver. Returns: Has a new package been received? Definition at line 30 of file Receiver.cpp. References eventId, and ProcessBase::getEventMask(). Referenced by finishFrame().

Here is the call graph for this function:

void ReceiverList::finishFrame (   )

The function must be called to finish the current frame. Definition at line 35 of file Receiver.cpp. References blocking, eventId, getFirst(), getNext(), receivedNew(), and ProcessBase::setBlockingId().

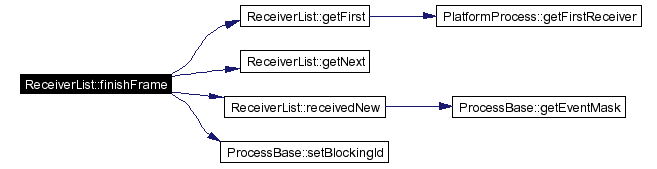

Here is the call graph for this function:

void ReceiverList::setBlockingId (  int  id, bool  block = true )  [static]

The functions sets or resets a bit in the blocking mask. After a bit is set in the blocking mask for a certain sender or receiver, a new frame will not be started before this sender or receiver received an event. Parameters: id  The id of the sender or receiver. block  Should it block or not? Definition at line 45 of file Receiver.cpp. References ProcessBase::setBlockingId(). Referenced by Receiver< T >::fillEntryTable().

Here is the call graph for this function:

void ReceiverList::setEventId (  int  id  )  [static]

The function is called when an event was received. If this was the last event the process was waiting for, the next frame is started, i.e. NextFrame() is called. Parameters: id  The id of the sender or receiver that received an event. Definition at line 50 of file Receiver.cpp. References ProcessBase::setEventId(). Referenced by Receiver< T >::handleMessage().

Here is the call graph for this function:

---

Member Data Documentation

PlatformProcess* ReceiverList::process [private]

The process this receiver is associated with. Definition at line 24 of file Receiver.h.

ReceiverList* ReceiverList::next [private]

The successor of the current receiver. Definition at line 25 of file Receiver.h. Referenced by getNext(), and ReceiverList().

char ReceiverList::name[NAME_LENGTH_MAX] [private]

The name of a receiver without the module's name. Definition at line 26 of file Receiver.h.

int ReceiverList::eventId [protected]

The id of the current receiver in the range [0..30]. Definition at line 29 of file Receiver.h. Referenced by finishFrame(), and receivedNew().

bool ReceiverList::blocking [protected]

Stores whether this is a blocking receiver. Definition at line 30 of file Receiver.h. Referenced by finishFrame().

---

The documentation for this class was generated from the following files:

• Platform/Aperios1.3.2/Receiver.h
• Platform/Aperios1.3.2/Receiver.cpp

---
