Tools/PotentialFields/PotentialFunctions.h File Reference

Definition of several functions used by potential fields. More...

#include <cmath>
#include <cassert>

Include dependency graph for PotentialFunctions.h:

Include dependency graph

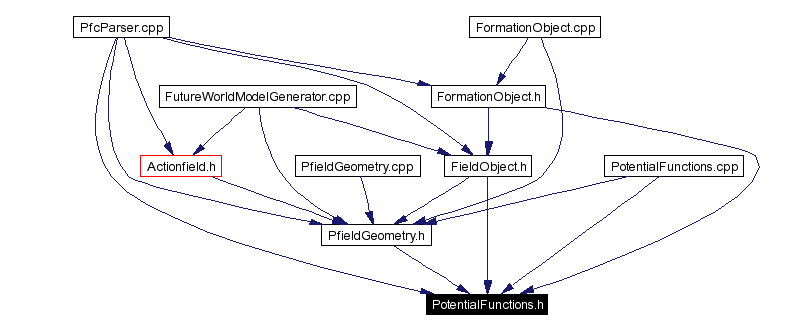

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Go to the source code of this file.

Classes

class  PotentialfieldFunction
 An abstract class representing a function in a potential field. More...

class  LinearFunction
 A class representing a linear function in a potential field f(x) = a*x +b. More...

class  ParabolicFunction
 A class representing a parabolic function in a potential field f(x) = a*x*x +b. More...

class  AsymptoticFunction
 A class representing an asymptotic function in a potential field f(x) = a/x +b. More...

class  SocialFunction
 A class representing a social function in a potential field. More...

class  NoFunction
 A class representing an empty function. More...


Enumerations

enum  ObjectType { ATTRACTIVE, REPULSIVE }
 The object types. More...

enum  FunctionType {
  NO_FUNCTION, LINEAR_FUNCTION, PARABOLIC_FUNCTION,
  ASYMPTOTIC_FUNCTION
}
 The function types. More...

enum  FieldType { POINT_FIELD, SHAPE_FIELD, SECTOR_FIELD }
 The field types. More...


Functions

double computeChargeForPointfield (const PfPose &objectPose, const PfPose &testedPose, PotentialfieldFunction *function)
 Computes the charge at a position in a Pointfield.

double computeChargeForShapefield (const PfPose &objectPose, const PfPose &testedPose, PotentialfieldFunction *function, PfieldGeometricObject *geometry)
 Computes the charge at a position in a Shapefield.

double computeChargeForSectorfield (const PfPose &objectPose, const PfPose &testedPose, PotentialfieldFunction *function, const Sector &sector)
 Computes the charge at a position in a Sectorfield.

PfVec computeGradientForPointfield (const PfPose &objectPose, const PfPose &testedPose, PotentialfieldFunction *function)
 Computes the gradient at a position in a Pointfield.

PfVec computeGradientForShapefield (const PfPose &objectPose, const PfPose &testedPose, PotentialfieldFunction *function, PfieldGeometricObject *geometry, ObjectType objectType)
 Computes the gradient at a position in a Shapefield.

PfVec computeGradientForSectorfield (const PfPose &objectPose, const PfPose &testedPose, PotentialfieldFunction *function, const Sector &sector)
 Computes the gradient at a position in a Sectorfield.

Detailed Description

Definition of several functions used by potential fields.

Author:
Tim Laue

Definition in file PotentialFunctions.h.

Enumeration Type Documentation

enum ObjectType


The object types.

Enumeration values:
ATTRACTIVE
REPULSIVE

Definition at line 24 of file PotentialFunctions.h.

Referenced by Object::getType(), and Parser::parseObject().

enum FunctionType


The function types.

Enumeration values:
NO_FUNCTION
LINEAR_FUNCTION
PARABOLIC_FUNCTION
ASYMPTOTIC_FUNCTION

Definition at line 27 of file PotentialFunctions.h.

enum FieldType


The field types.

Enumeration values:
POINT_FIELD
SHAPE_FIELD
SECTOR_FIELD

Definition at line 30 of file PotentialFunctions.h.

Function Documentation

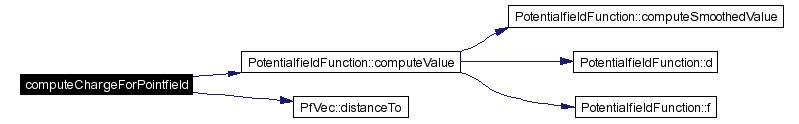

double computeChargeForPointfield (  const PfPose &  objectPose,
const PfPose &  testedPose,
PotentialfieldFunction *  function
)


Computes the charge at a position in a Pointfield.

Parameters:
objectPose The pose of the object to which the field belongs
testedPose The pose for which the charge is computed
function The function
Returns:
The charge

Definition at line 77 of file PotentialFunctions.cpp.

References PotentialfieldFunction::computeValue(), PfVec::distanceTo(), and PfPose::pos.

Referenced by Object::computeChargeForSinglePose().

Here is the call graph for this function:

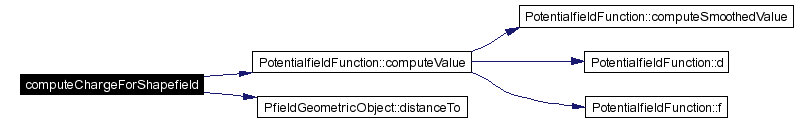

double computeChargeForShapefield (  const PfPose &  objectPose,
const PfPose &  testedPose,
PotentialfieldFunction *  function,
PfieldGeometricObject *  geometry
)


Computes the charge at a position in a Shapefield.

Parameters:
objectPose The pose of the object to which the field belongs
testedPose The pose for which the charge is computed
function The function
geometry The geometric shape of the object
Returns:
The charge

Definition at line 85 of file PotentialFunctions.cpp.

References PotentialfieldFunction::computeValue(), PfieldGeometricObject::distanceTo(), and PfPose::pos.

Referenced by Object::computeChargeForSinglePose().

Here is the call graph for this function:

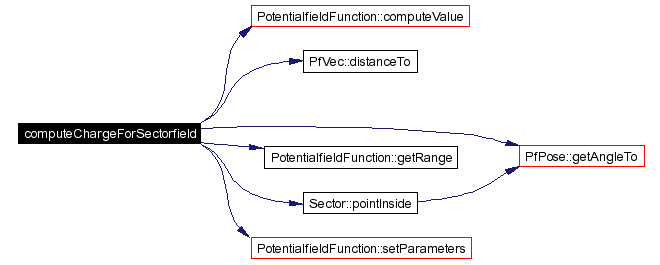

double computeChargeForSectorfield (  const PfPose &  objectPose,
const PfPose &  testedPose,
PotentialfieldFunction *  function,
const Sector &  sector
)


Computes the charge at a position in a Sectorfield.

Parameters:
objectPose The pose of the object to which the field belongs
testedPose The pose for which the charge is computed
function The function
sector The sector of the field
Returns:
The charge

Definition at line 102 of file PotentialFunctions.cpp.

References PotentialfieldFunction::computeValue(), Sector::crossFunction, PfVec::distanceTo(), PfPose::getAngleTo(), PotentialfieldFunction::getRange(), Sector::openingAngle, Sector::pointInside(), PfPose::pos, and PotentialfieldFunction::setParameters().

Referenced by Object::computeChargeForSinglePose().

Here is the call graph for this function:

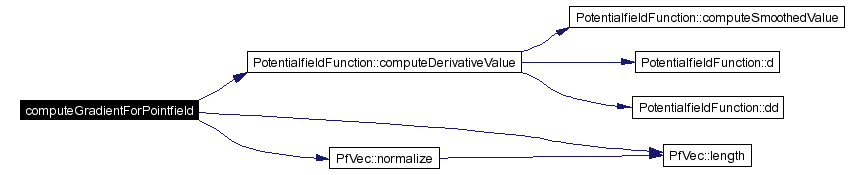

PfVec computeGradientForPointfield (  const PfPose &  objectPose,
const PfPose &  testedPose,
PotentialfieldFunction *  function
)


Computes the gradient at a position in a Pointfield.

Parameters:
objectPose The pose of the object to which the field belongs
testedPose The pose for which the charge is computed
function The function
Returns:
The gradient

Definition at line 119 of file PotentialFunctions.cpp.

References PotentialfieldFunction::computeDerivativeValue(), PfVec::length(), PfVec::normalize(), and PfPose::pos.

Referenced by Object::computeGradientVecForSinglePose().

Here is the call graph for this function:

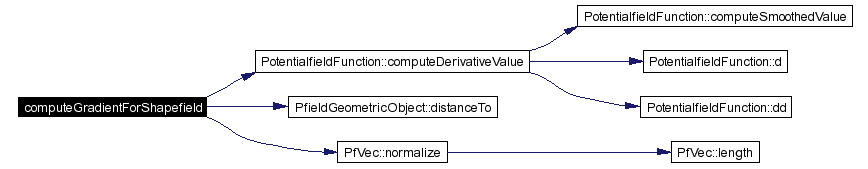

PfVec computeGradientForShapefield (  const PfPose &  objectPose,
const PfPose &  testedPose,
PotentialfieldFunction *  function,
PfieldGeometricObject *  geometry,
ObjectType  objectType
)


Computes the gradient at a position in a Shapefield.

Parameters:
objectPose The pose of the object to which the field belongs
testedPose The pose for which the charge is computed
function The function
geometry The geometric shape of the object
objectType The type of the object
Returns:
The gradient

Definition at line 132 of file PotentialFunctions.cpp.

References ATTRACTIVE, PotentialfieldFunction::computeDerivativeValue(), PfieldGeometricObject::distanceTo(), PfVec::normalize(), and PfPose::pos.

Referenced by Object::computeGradientVecForSinglePose().

Here is the call graph for this function:

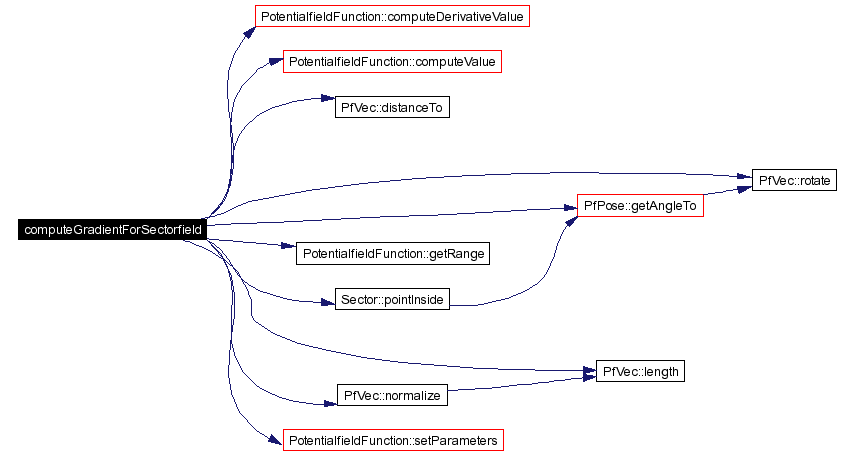

PfVec computeGradientForSectorfield (  const PfPose &  objectPose,
const PfPose &  testedPose,
PotentialfieldFunction *  function,
const Sector &  sector
)


Computes the gradient at a position in a Sectorfield.

Parameters:
objectPose The pose of the object to which the field belongs
testedPose The pose for which the charge is computed
function The function
sector The sector of the field
Returns:
The gradient

Definition at line 165 of file PotentialFunctions.cpp.

References PotentialfieldFunction::computeDerivativeValue(), PotentialfieldFunction::computeValue(), Sector::crossFunction, PfVec::distanceTo(), PfPose::getAngleTo(), PotentialfieldFunction::getRange(), PfVec::length(), PfVec::normalize(), Sector::openingAngle, Sector::pointInside(), PfPose::pos, PfVec::rotate(), PfPose::rotation, and PotentialfieldFunction::setParameters().

Referenced by Object::computeGradientVecForSinglePose().

Here is the call graph for this function:
