PotentialfieldFunction Class Reference

An abstract class representing a function in a potential field. More...

#include <PotentialFunctions.h>

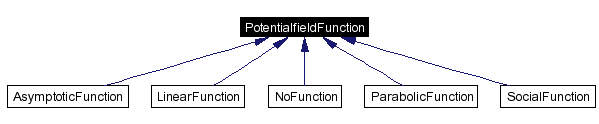

Inheritance diagram for PotentialfieldFunction:

[legend]List of all members.

Public Member Functions
virtual double	computeValue (double x, bool smooth=true)
	Computes the value of the function for a given x including range checking and smoothing.
virtual double	computeDerivativeValue (double x, bool smooth=false)
	Computes the value of the derivative of the function for a given x including range checking and smoothing.
virtual PotentialfieldFunction *	clone ()=0
	Clones a function object.
double	getRange ()
	Returns the range of the function.
void	setParameters (double atZero, double range)
	Sets the two main parameters, recomputes smoothing parameters.
void	setSmoothingParameters (double smoothingAtObject, double smoothingAtBorder, double gradientAtObject, double gradientAtBorder)
	Sets parameters for smoothing at the end of the function's interval Both values have a range from 0.0 to 1.0.
Protected Member Functions
double	computeSmoothedValue (double x1, double fx1, double dx1, double x2, double fx2, double dx2, double x)
	Generates a smooth curve between two points and computes function value of a given x.
virtual double	f (double x) const
	Computes the value of the function for a given x.
virtual double	d (double x) const
	Computes the value of the derivative of the function for a given x.
virtual double	dd (double x) const
	Computes the value of the second derivative of the function for a given x.
virtual void	init ()
	Computes the values of a and b.
void	getStandardParameters (PotentialfieldFunction *other)
	Sets standard parameters from other function.
Protected Attributes
double	smoothingAtObjectPosition
	Last position of smoothing near object.
double	smoothingAtBorderPosition
	First position of smoothing near the end of the range.
double	gradientAtObject
	The gradient at the object (used together with smoothing).
double	gradientAtBorder
	The gradient at (range,0) (used together with smoothing).
double	smoothingAtObjectPercentage
	Smoothing near object [0.0, .., 1.0].
double	smoothingAtBorderPercentage
	Smoothing near the end of the range [0.0, .., 1.0].
double	atZero
	The value of f(0).
double	range
	f(range) = 0
double	a
	Internal variable for faster computation set by init().
double	b
	Internal variable for faster computation set by init().

---

Detailed Description

An abstract class representing a function in a potential field.

Definition at line 38 of file PotentialFunctions.h.

---

Member Function Documentation

double PotentialfieldFunction::computeValue (  double  x, bool  smooth = true )  [virtual]

Computes the value of the function for a given x including range checking and smoothing. Parameters: x  The distance for which to compute the value of the function smooth  Flag: Use smoothing, if true Returns: The value of the function Reimplemented in SocialFunction, and NoFunction. Definition at line 15 of file PotentialFunctions.cpp. References atZero, computeSmoothedValue(), d(), f(), gradientAtBorder, gradientAtObject, range, smoothingAtBorderPosition, and smoothingAtObjectPosition. Referenced by computeChargeForPointfield(), computeChargeForSectorfield(), computeChargeForShapefield(), and computeGradientForSectorfield().

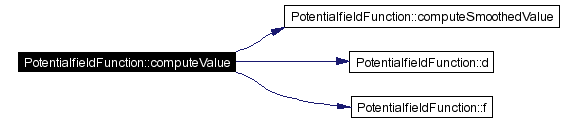

Here is the call graph for this function:

double PotentialfieldFunction::computeDerivativeValue (  double  x, bool  smooth = false )  [virtual]

Computes the value of the derivative of the function for a given x including range checking and smoothing. Parameters: x  The distance for which to compute the value of the function smooth  Flag: Use smoothing, if true Returns: The value of the function Reimplemented in SocialFunction, and NoFunction. Definition at line 39 of file PotentialFunctions.cpp. References atZero, computeSmoothedValue(), d(), dd(), range, smoothingAtBorderPosition, and smoothingAtObjectPosition. Referenced by computeGradientForPointfield(), computeGradientForSectorfield(), and computeGradientForShapefield().

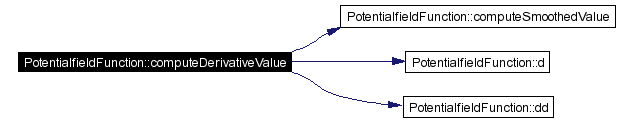

Here is the call graph for this function:

virtual PotentialfieldFunction* PotentialfieldFunction::clone (   )  [pure virtual]

Clones a function object. Returns: A pointer to a copy of the object Implemented in LinearFunction, ParabolicFunction, AsymptoticFunction, SocialFunction, and NoFunction. Referenced by Object::setField(), and Object::setFunction().

double PotentialfieldFunction::getRange (   )  [inline]

Returns the range of the function. Returns: The range Definition at line 65 of file PotentialFunctions.h. References range. Referenced by computeChargeForSectorfield(), and computeGradientForSectorfield().

void PotentialfieldFunction::setParameters (  double  atZero, double  range )  [inline]

Sets the two main parameters, recomputes smoothing parameters. Parameters: atZero  The value of f(0) range  At range, f(range) is 0 Definition at line 72 of file PotentialFunctions.h. References init(), smoothingAtBorderPercentage, smoothingAtBorderPosition, smoothingAtObjectPercentage, and smoothingAtObjectPosition. Referenced by computeChargeForSectorfield(), and computeGradientForSectorfield().

Here is the call graph for this function:

void PotentialfieldFunction::setSmoothingParameters (  double  smoothingAtObject, double  smoothingAtBorder, double  gradientAtObject, double  gradientAtBorder )  [inline]

Sets parameters for smoothing at the end of the function's interval Both values have a range from 0.0 to 1.0. Parameters: smoothingAtObject  Smoothing near the object smoothingAtBorder  Smoothing near the end of the range gradientAtObject  The gradient at the object gradientAtBorder  The gradient at (range,0) Definition at line 88 of file PotentialFunctions.h. References range, smoothingAtBorderPercentage, smoothingAtBorderPosition, smoothingAtObjectPercentage, and smoothingAtObjectPosition. Referenced by Parser::parseFunction(), and Parser::parseObject().

double PotentialfieldFunction::computeSmoothedValue (  double  x1, double  fx1, double  dx1, double  x2, double  fx2, double  dx2, double  x )  [protected]

Generates a smooth curve between two points and computes function value of a given x. Parameters: x1  x component of the left end of the curve fx1  y component of the left end of the curve dx1  Gradient at (x1,fx1) x2  x component of the right end of the curve fx2  y component of the right end of the curve dx2  Gradient at (x2,fx22) x  The position for which f(x) is computed Returns: A smoothed f(x) Definition at line 64 of file PotentialFunctions.cpp. Referenced by computeDerivativeValue(), and computeValue().

virtual double PotentialfieldFunction::f (  double  x  )  const [inline, protected, virtual]

Computes the value of the function for a given x. Parameters: x  The distance for which to compute the value of the function Returns: The value of the function Reimplemented in LinearFunction, ParabolicFunction, and AsymptoticFunction. Definition at line 142 of file PotentialFunctions.h. Referenced by computeValue().

virtual double PotentialfieldFunction::d (  double  x  )  const [inline, protected, virtual]

Computes the value of the derivative of the function for a given x. Parameters: x  The distance for which to compute the value of the function Returns: The value of the function Reimplemented in LinearFunction, ParabolicFunction, and AsymptoticFunction. Definition at line 149 of file PotentialFunctions.h. Referenced by computeDerivativeValue(), and computeValue().

virtual double PotentialfieldFunction::dd (  double  x  )  const [inline, protected, virtual]

Computes the value of the second derivative of the function for a given x. Parameters: x  The distance for which to compute the value of the function Returns: The value of the function Reimplemented in LinearFunction, ParabolicFunction, and AsymptoticFunction. Definition at line 156 of file PotentialFunctions.h. Referenced by computeDerivativeValue().

virtual void PotentialfieldFunction::init (   )  [inline, protected, virtual]

Computes the values of a and b. Reimplemented in LinearFunction, ParabolicFunction, and AsymptoticFunction. Definition at line 160 of file PotentialFunctions.h. Referenced by setParameters().

void PotentialfieldFunction::getStandardParameters (  PotentialfieldFunction *  other  )  [inline, protected]

Sets standard parameters from other function. Parameters: other  The other function Definition at line 165 of file PotentialFunctions.h. References gradientAtBorder, gradientAtObject, smoothingAtBorderPercentage, smoothingAtBorderPosition, smoothingAtObjectPercentage, and smoothingAtObjectPosition. Referenced by SocialFunction::clone(), AsymptoticFunction::clone(), ParabolicFunction::clone(), and LinearFunction::clone().

---

Member Data Documentation

double PotentialfieldFunction::smoothingAtObjectPosition [protected]

Last position of smoothing near object. Definition at line 103 of file PotentialFunctions.h. Referenced by computeDerivativeValue(), computeValue(), getStandardParameters(), setParameters(), and setSmoothingParameters().

double PotentialfieldFunction::smoothingAtBorderPosition [protected]

First position of smoothing near the end of the range. Definition at line 105 of file PotentialFunctions.h. Referenced by computeDerivativeValue(), computeValue(), getStandardParameters(), setParameters(), and setSmoothingParameters().

double PotentialfieldFunction::gradientAtObject [protected]

The gradient at the object (used together with smoothing). Definition at line 107 of file PotentialFunctions.h. Referenced by computeValue(), and getStandardParameters().

double PotentialfieldFunction::gradientAtBorder [protected]

The gradient at (range,0) (used together with smoothing). Definition at line 109 of file PotentialFunctions.h. Referenced by computeValue(), and getStandardParameters().

double PotentialfieldFunction::smoothingAtObjectPercentage [protected]

Smoothing near object [0.0, .., 1.0]. Definition at line 111 of file PotentialFunctions.h. Referenced by getStandardParameters(), setParameters(), and setSmoothingParameters().

double PotentialfieldFunction::smoothingAtBorderPercentage [protected]

Smoothing near the end of the range [0.0, .., 1.0]. Definition at line 113 of file PotentialFunctions.h. Referenced by getStandardParameters(), setParameters(), and setSmoothingParameters().

double PotentialfieldFunction::atZero [protected]

The value of f(0). Definition at line 115 of file PotentialFunctions.h. Referenced by computeDerivativeValue(), and computeValue().

double PotentialfieldFunction::range [protected]

f(range) = 0 Definition at line 117 of file PotentialFunctions.h. Referenced by computeDerivativeValue(), computeValue(), getRange(), and setSmoothingParameters().

double PotentialfieldFunction::a [protected]

Internal variable for faster computation set by init(). Definition at line 119 of file PotentialFunctions.h.

double PotentialfieldFunction::b [protected]

Internal variable for faster computation set by init(). Definition at line 121 of file PotentialFunctions.h.

---

The documentation for this class was generated from the following files:

• Tools/PotentialFields/PotentialFunctions.h
• Tools/PotentialFields/PotentialFunctions.cpp

---
