Xabsl2EnumeratedInputSymbolComparison Class Reference

Represents an 'enumerated-input-symbol-comparison' element of the option graph. More...

#include <Xabsl2BooleanExpression.h>

Inheritance diagram for Xabsl2EnumeratedInputSymbolComparison:

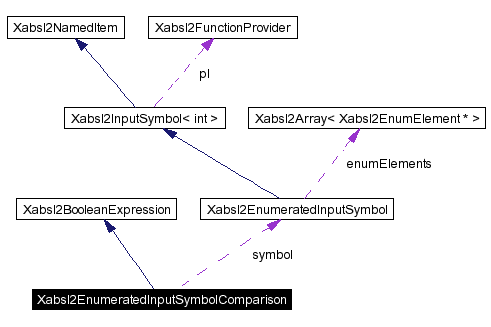

[legend]Collaboration diagram for Xabsl2EnumeratedInputSymbolComparison:

[legend]List of all members.

Public Member Functions
	Xabsl2EnumeratedInputSymbolComparison (Xabsl2InputSource &input, Xabsl2ErrorHandler &errorHandler, Xabsl2Symbols &symbols)
	Constructor.
virtual bool	getValue ()
	Evaluates the boolean expression.
Private Attributes
Xabsl2EnumeratedInputSymbol *	symbol
	The referenced symbol.
int	value
	The value to compare.

---

Detailed Description

Represents an 'enumerated-input-symbol-comparison' element of the option graph.

Author:

Martin Lötzsch

Definition at line 221 of file Xabsl2BooleanExpression.h.

---

Constructor & Destructor Documentation

Xabsl2EnumeratedInputSymbolComparison::Xabsl2EnumeratedInputSymbolComparison (  Xabsl2InputSource &  input, Xabsl2ErrorHandler &  errorHandler, Xabsl2Symbols &  symbols )

Constructor. Creates the element. Parameters: input  An input source for the intermediate code. It must be opened and read until A position where the element starts. errorHandler  A reference to a Xabsl2ErrorHandler instance symbols  All available symbols Definition at line 305 of file Xabsl2BooleanExpression.cpp. References Xabsl2EnumeratedInputSymbol::enumElements, Xabsl2ErrorHandler::error(), Xabsl2Array< Xabsl2EnumElement * >::exists(), Xabsl2Symbols::existsEnumeratedInputSymbol(), Xabsl2Array< Xabsl2EnumElement * >::getElement(), Xabsl2Symbols::getEnumeratedInputSymbol(), Xabsl2ErrorHandler::message(), Xabsl2NamedItem::n, Xabsl2InputSource::readString(), Xabsl2EnumElement::v, and XABSL2_DEBUG_INIT.

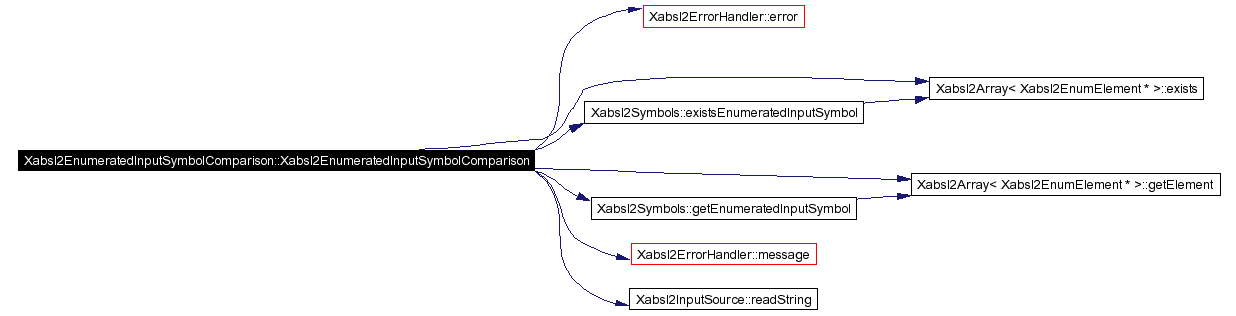

Here is the call graph for this function:

---

Member Function Documentation

bool Xabsl2EnumeratedInputSymbolComparison::getValue (   )  [virtual]

Evaluates the boolean expression. Implements Xabsl2BooleanExpression. Definition at line 331 of file Xabsl2BooleanExpression.cpp. References Xabsl2InputSymbol< int >::getValue().

Here is the call graph for this function:

---

Member Data Documentation

Xabsl2EnumeratedInputSymbol* Xabsl2EnumeratedInputSymbolComparison::symbol [private]

The referenced symbol. Definition at line 239 of file Xabsl2BooleanExpression.h.

int Xabsl2EnumeratedInputSymbolComparison::value [private]

The value to compare. Definition at line 242 of file Xabsl2BooleanExpression.h.

---

The documentation for this class was generated from the following files:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2BooleanExpression.h
• Tools/Xabsl2/Xabsl2Engine/Xabsl2BooleanExpression.cpp

---
