OutMessageQueue Class Reference

A PhysicalOutStream that writes the data to a MessageQueue. More...

#include <OutMessage.h>

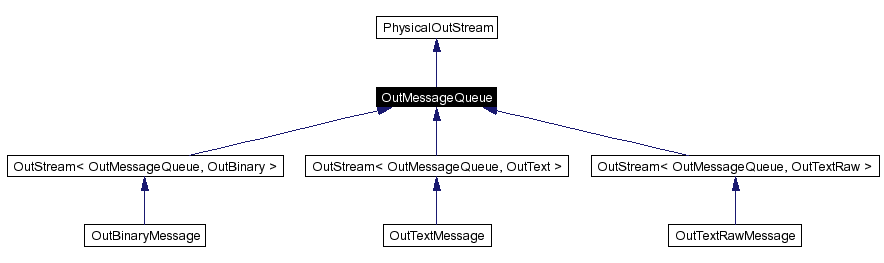

Inheritance diagram for OutMessageQueue:

[legend]Collaboration diagram for OutMessageQueue:

[legend]List of all members.

Public Member Functions
	OutMessageQueue ()
	Default constructor.
Protected Member Functions
void	open (MessageQueueBase *q)
	opens the stream.
virtual void	writeToStream (const void *p, int size)
	The function writes a number of bytes into a physical stream.
Private Attributes
MessageQueueBase *	queue
	The queue where the data is written to.

---

Detailed Description

A PhysicalOutStream that writes the data to a MessageQueue.

Definition at line 23 of file OutMessage.h.

---

Constructor & Destructor Documentation

OutMessageQueue::OutMessageQueue (   )

Default constructor. Definition at line 13 of file OutMessage.cpp.

---

Member Function Documentation

void OutMessageQueue::open (  MessageQueueBase *  q  )  [protected]

opens the stream. Parameters: q  A pointer to the message queue base Definition at line 18 of file OutMessage.cpp. Referenced by OutBinaryMessage::OutBinaryMessage(), OutTextMessage::OutTextMessage(), and OutTextRawMessage::OutTextRawMessage().

void OutMessageQueue::writeToStream (  const void *  p, int  size )  [protected, virtual]

The function writes a number of bytes into a physical stream. Parameters: p  The address the data is located at. size  The number of bytes to be written. Implements PhysicalOutStream. Definition at line 23 of file OutMessage.cpp. References MessageQueueBase::write().

Here is the call graph for this function:

---

Member Data Documentation

MessageQueueBase* OutMessageQueue::queue [private]

The queue where the data is written to. Definition at line 27 of file OutMessage.h.

---

The documentation for this class was generated from the following files:

• Tools/MessageQueue/OutMessage.h
• Tools/MessageQueue/OutMessage.cpp

---
