Tools/PotentialFields/PfieldGeometry.h File Reference

Definition of several geometric functions and objects used by potential fields. More...

#include "PfieldDatatypes.h"
#include "PotentialFunctions.h"

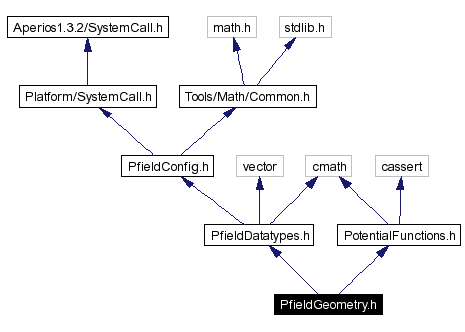

Include dependency graph for PfieldGeometry.h:

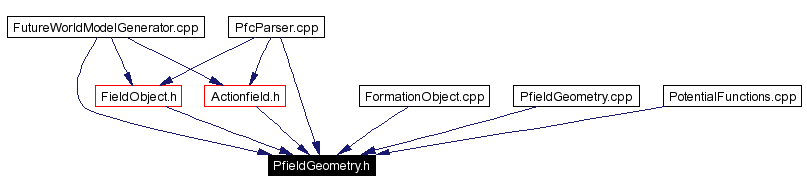

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	PfieldGeometricObject
	Abstract base class for geometric objects used by potentialfields. More...
class	Polygon
	A class representing a convex polygon. More...
class	Line
	A class representing a line. More...
class	Circle
	A class representing a circle. More...
class	NoGeometry
	A class representing an empty geometric object. More...
class	Sector
	A class representing a sector. More...
Enumerations
enum	GeometryType {   POLYGON, LINE, CIRCLE,   NONE }
	Definition of the different types of geometric objects. More...
Functions
bool	pointPerpendicularToLine (const PfVec &l1, const PfVec &l2, const PfVec &p, double &distance, PfVec &perpendicularPoint)
	Determines if a point is perpendicular to a line.
void	reduceToConvexHullByWrapping (Polygon &p)
	Reduces the points of a polygon to its convex hull.
void	intersectGeometricObjects (PfieldGeometricObject *g1, PfieldGeometricObject *g2, std::vector< PfVec > &intersections)
	Intersects two geometric objects and returns the intersection points as well as significant points of the second object inside the intersection.
void	intersectLineAndLine (const Line &l1, const Line &l2, std::vector< PfVec > &intersections)
	Intersects a line with another line (basic intersection checking has to be done before).
void	intersectLineAndCircle (const Line &line, const Circle &circle, std::vector< PfVec > &intersections)
	Intersects a line with a circle (basic intersection checking has to be done before).
void	intersectPolygonAndCircle (const Polygon &polygon, const Circle &circle, std::vector< PfVec > &intersections)
	Intersects a polygon with a circle (basic intersection checking has to be done before).
void	intersectCircleAndCircle (const Circle &circle1, const Circle &circle2, std::vector< PfVec > &intersections)
	Intersects a circle with a circle (basic intersection checking has to be done before).

---

Detailed Description

Definition of several geometric functions and objects used by potential fields.

Author:

Tim Laue

Definition in file PfieldGeometry.h.

---

Enumeration Type Documentation

enum GeometryType

Definition of the different types of geometric objects. Enumeration values: POLYGON  LINE  CIRCLE  NONE  Definition at line 23 of file PfieldGeometry.h. Referenced by NoGeometry::getType(), Circle::getType(), Line::getType(), and Polygon::getType().

---

Function Documentation

bool pointPerpendicularToLine (  const PfVec &  l1, const PfVec &  l2, const PfVec &  p, double &  distance, PfVec &  perpendicularPoint )  [inline]

Determines if a point is perpendicular to a line. Parameters: l1  One end of the line l2  The other end of the line p  The point distance  The distance to the line, if perpendicular perpendicularPoint  The point on the line, if perpendicular Returns: true, if point is perpendicular. Definition at line 14 of file PfieldGeometry.cpp. References PfVec::distanceTo(), EPSILON, PfVec::scalarProduct(), PfVec::x, and PfVec::y. Referenced by Polygon::distanceTo(), and Line::distanceTo().

Here is the call graph for this function:

void reduceToConvexHullByWrapping (  Polygon &  p  )

Reduces the points of a polygon to its convex hull. Parameters: p  The polygon Definition at line 61 of file PfieldGeometry.cpp. References pi2, Polygon::pts, and theta(). Referenced by AmongFormation::updateGeometry(), and BetweenFormation::updateGeometry().

Here is the call graph for this function:

void intersectGeometricObjects (  PfieldGeometricObject *  g1, PfieldGeometricObject *  g2, std::vector< PfVec > &  intersections )

Intersects two geometric objects and returns the intersection points as well as significant points of the second object inside the intersection. Parameters: g1  The first geometric object g2  The second geometric object intersections  The intersections Definition at line 297 of file PfieldGeometry.cpp. References CIRCLE, PfieldGeometricObject::getType(), PfieldGeometricObject::intersectable, intersectCircleAndCircle(), intersectLineAndCircle(), intersectLineAndLine(), intersectLineAndPolygon(), intersectPolygonAndCircle(), PfVec::length(), LINE, POLYGON, PfieldGeometricObject::position, and PfieldGeometricObject::radiusOfCollisionCircle. Referenced by FutureWorldModelGenerator::getMaxRotationForObject(), and FutureWorldModelGenerator::getMaxTranslationForObject().

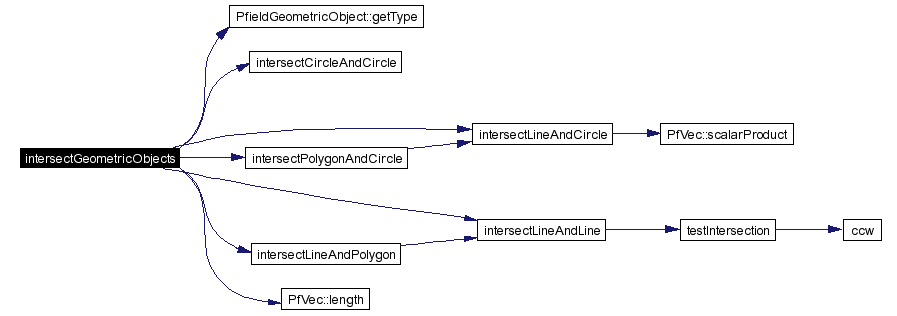

Here is the call graph for this function:

void intersectLineAndLine (  const Line &  l1, const Line &  l2, std::vector< PfVec > &  intersections )

Intersects a line with another line (basic intersection checking has to be done before). Parameters: l1  A line l2  Another line intersections  The intersections found Definition at line 139 of file PfieldGeometry.cpp. References Line::p1, Line::p2, testIntersection(), PfVec::x, and PfVec::y. Referenced by intersectGeometricObjects(), and intersectLineAndPolygon().

Here is the call graph for this function:

void intersectLineAndCircle (  const Line &  line, const Circle &  circle, std::vector< PfVec > &  intersections )

Intersects a line with a circle (basic intersection checking has to be done before). Parameters: line  A line circle  A circle intersections  The intersections found Definition at line 175 of file PfieldGeometry.cpp. References Line::p1, Line::p2, PfieldGeometricObject::position, PfieldGeometricObject::radiusOfCollisionCircle, and PfVec::scalarProduct(). Referenced by intersectGeometricObjects(), and intersectPolygonAndCircle().

Here is the call graph for this function:

void intersectPolygonAndCircle (  const Polygon &  polygon, const Circle &  circle, std::vector< PfVec > &  intersections )

Intersects a polygon with a circle (basic intersection checking has to be done before). Parameters: polygon  A polygon circle  A circle intersections  The intersections found Definition at line 215 of file PfieldGeometry.cpp. References intersectLineAndCircle(), Line::p1, Line::p2, and Polygon::pts. Referenced by intersectGeometricObjects().

Here is the call graph for this function:

void intersectCircleAndCircle (  const Circle &  circle1, const Circle &  circle2, std::vector< PfVec > &  intersections )

Intersects a circle with a circle (basic intersection checking has to be done before). Parameters: circle1  A circle circle2  Another circle intersections  The intersections found Definition at line 229 of file PfieldGeometry.cpp. References EPSILON, pi, PfieldGeometricObject::position, Circle::radius, PfVec::x, and PfVec::y. Referenced by intersectGeometricObjects().

---
