Xabsl2InputSymbol< T > Class Template Reference

A Template for the input symbol classes. More...

#include <Xabsl2Symbols.h>

Inheritance diagram for Xabsl2InputSymbol< T >:

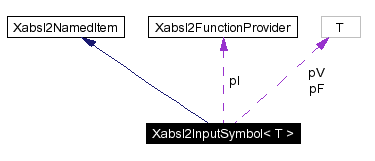

[legend]Collaboration diagram for Xabsl2InputSymbol< T >:

[legend]List of all members.

Public Member Functions
	Xabsl2InputSymbol (const char *name, const T *pVariable)
	Constructor.
	Xabsl2InputSymbol (const char *name, Xabsl2FunctionProvider *pInstance, T(Xabsl2FunctionProvider::*pFunction)())
	Constructor.
T	getValue () const
	returns the value of the symbol
Private Attributes
const T *	pV
	A pointer to a variable in the software environment.
Xabsl2FunctionProvider *	pI
	A pointer to the instance object that contains the function.
T(Xabsl2FunctionProvider::*	pF )()
	A pointer to a T returning function in the software environment.

---

Detailed Description

template<class T>
class Xabsl2InputSymbol< T >

A Template for the input symbol classes.

Author:

Martin Lötzsch

Definition at line 31 of file Xabsl2Symbols.h.

---

Constructor & Destructor Documentation

template<class T> Xabsl2InputSymbol< T >::Xabsl2InputSymbol (  const char *  name, const T *  pVariable )  [inline]

Constructor. Parameters: name  The name of the symbol, for debugging purposes pVariable  A pointer to the variable that the symbol stands for Definition at line 39 of file Xabsl2Symbols.h.

template<class T> Xabsl2InputSymbol< T >::Xabsl2InputSymbol (  const char *  name, Xabsl2FunctionProvider *  pInstance, T(Xabsl2FunctionProvider::*  pFunction)() )  [inline]

Constructor. Parameters: name  The name of the symbol, for debugging purposes pFunction  A pointer to a boolean returning function in the software environment pInstance  A pointer to the instance that contains the function Definition at line 49 of file Xabsl2Symbols.h.

---

Member Function Documentation

template<class T> T Xabsl2InputSymbol< T >::getValue (   )  const [inline]

returns the value of the symbol Definition at line 55 of file Xabsl2Symbols.h.

---

Member Data Documentation

template<class T> const T* Xabsl2InputSymbol< T >::pV [private]

A pointer to a variable in the software environment. Definition at line 60 of file Xabsl2Symbols.h.

template<class T> Xabsl2FunctionProvider* Xabsl2InputSymbol< T >::pI [private]

A pointer to the instance object that contains the function. Definition at line 63 of file Xabsl2Symbols.h.

template<class T> T(Xabsl2FunctionProvider::* Xabsl2InputSymbol< T >::pF)() [private]

A pointer to a T returning function in the software environment.

---

The documentation for this class was generated from the following file:

• Tools/Xabsl2/Xabsl2Engine/Xabsl2Symbols.h

---
