TCPEndpoint Class Reference

handels a TCP-Connection More...

#include <TCPEndpoint.h>

Inheritance diagram for TCPEndpoint:

[legend]Collaboration diagram for TCPEndpoint:

[legend]List of all members.

Public Types
enum	statusID {   closed, connecting, connected,   listening, sending, receiving,   closing }
Public Member Functions
	TCPEndpoint (int sendBufferSize=8192, int receiveBufferSize=8192)
	constructor with standard buffer size of 8192 bytes
	TCPEndpoint (char *address, int port)
	constructor which opens a connection to address:port *
	~TCPEndpoint ()
int	listen (int port)
	listens for incomming connection
int	connect (char *address, int port)
	connects to another host
int	send (void *Data, int size)
	sends data (data should not be changed until onSendingDone is called) if the data is bigger than sendBufferSize its splittet up and after all data is send onSendingDone is called
int	close ()
	close the connection
virtual void	onConnect (void)
	called by the framwork if the connection is established
virtual void	onReceive (void *Data, int size)
	called when data is received
virtual void	onClose (int reason)
	called when the connection ist closed by the other host
virtual void	onSendingDone (void)
	called after all data from send() ist successfully send
const char *	getErrorString (TCPEndpointError error)
	gets a cleartext error string
virtual void	listenCont (antEnvMsg *msg)
	called by the processFramework if someone connects to a listen port
virtual void	sendCont (antEnvMsg *msg)
	called by the processFramework if data was send.
virtual void	receiveCont (antEnvMsg *msg)
	called by the processFramework if new data arrives
virtual void	closeCont (antEnvMsg *msg)
	called by the processFreamwork after a close
virtual void	connectCont (antEnvMsg *msg)
	called by the processFramework after connecting
statusID	getStatus (void)
Protected Member Functions
void	startReceiving ()
	internal method which calls the ANT-Library to start receiving
Protected Attributes
IPAddress	address
	IP-address to connect to.
Port	port
	Port to connect to.
statusID	status
	status of the connection
bool	wasListening
	if true the socket goes back to listening state after disconnection
int	sizeOfDataToSend
	size of internal send-buffer
void *	sendDataBuffer
	internal send-buffer
Private Member Functions
void	sendSendMessage (int size)

---

Detailed Description

handels a TCP-Connection

Definition at line 17 of file TCPEndpoint.h.

---

Member Enumeration Documentation

enum TCPEndpoint::statusID

Enumeration values: closed  connecting  connected  listening  sending  receiving  closing  Definition at line 20 of file TCPEndpoint.h. Referenced by getStatus().

---

Constructor & Destructor Documentation

TCPEndpoint::TCPEndpoint (  int  sendBufferSize = 8192, int  receiveBufferSize = 8192 )

constructor with standard buffer size of 8192 bytes Definition at line 18 of file TCPEndpoint.cpp. References address, closed, status, and wasListening.

TCPEndpoint::TCPEndpoint (  char *  address, int  port )

constructor which opens a connection to address:port * Definition at line 27 of file TCPEndpoint.cpp. References connect().

Here is the call graph for this function:

TCPEndpoint::~TCPEndpoint (   )

Definition at line 33 of file TCPEndpoint.cpp. References close().

Here is the call graph for this function:

---

Member Function Documentation

int TCPEndpoint::listen (  int  port  )

listens for incomming connection onConnect is called if the connection is established Definition at line 99 of file TCPEndpoint.cpp. References listening, status, and VERIFY. Referenced by closeCont().

int TCPEndpoint::connect (  char *  address, int  port )

connects to another host Definition at line 44 of file TCPEndpoint.cpp. References connecting, and status. Referenced by TCPEndpoint().

int TCPEndpoint::send (  void *  Data, int  size )

sends data (data should not be changed until onSendingDone is called) if the data is bigger than sendBufferSize its splittet up and after all data is send onSendingDone is called Definition at line 151 of file TCPEndpoint.cpp. References connected, sendDataBuffer, sendSendMessage(), sizeOfDataToSend, and status. Referenced by TestServer::onConnect(), TestServer::onReceive(), and TCPHandler::sendPackage().

Here is the call graph for this function:

int TCPEndpoint::close (   )

close the connection Definition at line 281 of file TCPEndpoint.cpp. References closed, closing, and status. Referenced by TestServer::onReceive(), receiveCont(), sendCont(), and ~TCPEndpoint().

void TCPEndpoint::onConnect (  void   )  [virtual]

called by the framwork if the connection is established Reimplemented in TestServer, and TCPHandler. Definition at line 94 of file TCPEndpoint.cpp. Referenced by connectCont(), and listenCont().

void TCPEndpoint::onReceive (  void *  Data, int  size )  [virtual]

called when data is received Reimplemented in TestServer, and TCPHandler. Definition at line 272 of file TCPEndpoint.cpp. Referenced by receiveCont().

void TCPEndpoint::onClose (  int  reason  )  [virtual]

called when the connection ist closed by the other host Reimplemented in TCPHandler. Definition at line 295 of file TCPEndpoint.cpp. Referenced by receiveCont().

void TCPEndpoint::onSendingDone (  void   )  [virtual]

called after all data from send() ist successfully send Reimplemented in TCPHandler. Definition at line 228 of file TCPEndpoint.cpp. Referenced by sendCont().

const char * TCPEndpoint::getErrorString (  TCPEndpointError  error  )

gets a cleartext error string Definition at line 318 of file TCPEndpoint.cpp. Referenced by closeCont(), connectCont(), listenCont(), receiveCont(), and sendCont().

void TCPEndpoint::listenCont (  antEnvMsg *  msg  )  [virtual]

called by the processFramework if someone connects to a listen port Reimplemented from IPEndpoint. Definition at line 129 of file TCPEndpoint.cpp. References connected, getErrorString(), onConnect(), startReceiving(), status, and wasListening.

Here is the call graph for this function:

void TCPEndpoint::sendCont (  antEnvMsg *  msg  )  [virtual]

called by the processFramework if data was send. Reimplemented from IPEndpoint. Definition at line 185 of file TCPEndpoint.cpp. References close(), connected, getErrorString(), onSendingDone(), sendDataBuffer, sendSendMessage(), sizeOfDataToSend, and status.

Here is the call graph for this function:

void TCPEndpoint::receiveCont (  antEnvMsg *  msg  )  [virtual]

called by the processFramework if new data arrives Reimplemented from IPEndpoint. Definition at line 244 of file TCPEndpoint.cpp. References close(), connected, getErrorString(), onClose(), onReceive(), startReceiving(), and status.

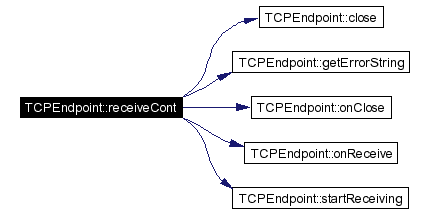

Here is the call graph for this function:

void TCPEndpoint::closeCont (  antEnvMsg *  msg  )  [virtual]

called by the processFreamwork after a close Reimplemented from IPEndpoint. Definition at line 300 of file TCPEndpoint.cpp. References closed, getErrorString(), listen(), status, and wasListening.

Here is the call graph for this function:

void TCPEndpoint::connectCont (  antEnvMsg *  msg  )  [virtual]

called by the processFramework after connecting Reimplemented from IPEndpoint. Definition at line 70 of file TCPEndpoint.cpp. References closed, connected, getErrorString(), onConnect(), startReceiving(), and status.

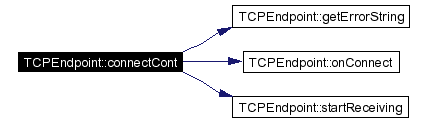

Here is the call graph for this function:

statusID TCPEndpoint::getStatus (  void   )  [inline]

Definition at line 55 of file TCPEndpoint.h. References status, and statusID.

void TCPEndpoint::startReceiving (   )  [protected]

internal method which calls the ANT-Library to start receiving Definition at line 234 of file TCPEndpoint.cpp. References connected, and status. Referenced by connectCont(), listenCont(), and receiveCont().

void TCPEndpoint::sendSendMessage (  int  size  )  [private]

Definition at line 220 of file TCPEndpoint.cpp. References status. Referenced by send(), and sendCont().

---

Member Data Documentation

IPAddress TCPEndpoint::address [protected]

IP-address to connect to. Definition at line 60 of file TCPEndpoint.h. Referenced by TCPEndpoint().

Port TCPEndpoint::port [protected]

Port to connect to. Definition at line 61 of file TCPEndpoint.h.

statusID TCPEndpoint::status [protected]

status of the connection Definition at line 62 of file TCPEndpoint.h. Referenced by close(), closeCont(), connect(), connectCont(), getStatus(), listen(), listenCont(), receiveCont(), send(), sendCont(), sendSendMessage(), startReceiving(), and TCPEndpoint().

bool TCPEndpoint::wasListening [protected]

if true the socket goes back to listening state after disconnection Definition at line 64 of file TCPEndpoint.h. Referenced by closeCont(), listenCont(), and TCPEndpoint().

int TCPEndpoint::sizeOfDataToSend [protected]

size of internal send-buffer Definition at line 65 of file TCPEndpoint.h. Referenced by send(), and sendCont().

void* TCPEndpoint::sendDataBuffer [protected]

internal send-buffer Definition at line 66 of file TCPEndpoint.h. Referenced by send(), and sendCont().

---

The documentation for this class was generated from the following files:

• Platform/Aperios1.3.2/TCPEndpoint.h
• Platform/Aperios1.3.2/TCPEndpoint.cpp

---
