RobotDimensions Class Reference

#include <RobotDimensions.h>

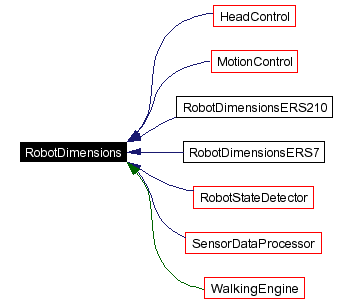

Inheritance diagram for RobotDimensions:

Inheritance graph
[legend]
List of all members.

Public Member Functions

 RobotDimensions (const double distancePanCenterToCameraX, const double distancePanCenterToCameraZ, const double distanceCameraToPSDSensor, const double distanceNeckToPanCenter, const double shoulderWidth, const double bodyWidth, const double overallBodyWidth, const double upperLegLengthX, const double upperLegLengthZ, const double lowerForeLegLengthX, const double lowerForeLegLengthZ, const double lowerHindLegLengthX, const double lowerHindLegLengthZ, const double lengthBetweenLegs, const double neckToLegsLengthX, const double neckToLegsLengthZ, const double specsKneeArc, const double bodyLength, const double lowerBodyWidth, const double shoulderRadius, const double kneeRadius, const double footRadius, const double jointLimitLeg1FN, const double jointLimitLeg1FP, const double jointLimitLeg1HN, const double jointLimitLeg1HP, const double jointLimitLeg2N, const double jointLimitLeg2P, const double jointLimitLeg3N, const double jointLimitLeg3P, const double jointLimitNeckTiltN, const double jointLimitNeckTiltP, const double jointLimitHeadPanN, const double jointLimitHeadPanP, const double jointLimitHeadTiltN, const double jointLimitHeadTiltP, const double jointLimitTailTiltN, const double jointLimitTailTiltP, const double jointLimitTailPanN, const double jointLimitTailPanP, const double motionCycleTime, const double imagesPerSecond)
 image frame rate of the camera in Hz.


Public Attributes

const double distancePanCenterToCameraX
 x-distance camera to center of head (specs)

const double distancePanCenterToCameraZ
 z-distance camera to center of head (specs)

const double distanceCameraToPSDSensor
 z-distanse camera to PSDsensor (estimated?)

const double distanceNeckToPanCenter
 distance center of head to neck (specs)

const double shoulderWidth
 width between shoulder joints (specs)

const double bodyWidth
 width between knee joints (specs)

const double overallBodyWidth
 overall width of the body including legs (specs)

const double upperLegLengthX
 length upper leg joint to joint in x-direction (specs)

const double upperLegLengthY
 length upper leg joint to joint in y-direction (calculated)

const double upperLegLengthZ
 length upper leg joint to joint in z-direction (specs)

const double upperLegLength
 length upper leg joint to joint (calculated)

const double lowerForeLegLengthX
 length lower front leg joint to footbase in x-direction (specs)

const double lowerForeLegLengthZ
 length lower front leg joint to footbase in z-direction (specs)

const double lowerForeLegLength
 length lower front leg joint to footbase (calculated)

const double lowerHindLegLengthX
 length lower rear leg joint to footbase in x-direction (specs)

const double lowerHindLegLengthZ
 length lower rear leg joint to footbase in z-direction (specs)

const double lowerHindLegLength
 length lower rear leg joint to footbase (calculated)

const double lengthBetweenLegs
 length from front to rear legs (specs)

const double neckToLegsLengthZ
 height from neck to front legs (specs)

const double neckToLegsLengthX
 length from front legs to neck projected on x-axis (specs)

const double lengthNeckToBodyCenter
 length from center of Robot to neck projected on x-axis (calculated)

const double zeroShoulderArc
 arc resulting from upperLegLengthX and -Z (calculated)

const double specsKneeArc
 knee arc lower leg lengths are based on (specs)

const double zeroFrontKneeArc
 arc resulting from lowerForeLegLengthX and -Z (calculated)

const double zeroHindKneeArc
 arc resulting from lowerHindLegLengthX and -Z (calculated)

const double zeroBodyTilt
 body tilt when all joints are 0 (calculated)

const double bodyLength
 length of robot body (estimated)

const double lowerBodyWidth
 width of body core at bottom (estimated),

const double shoulderRadius
 thickness of the body around the shoulder (estimated)

const double kneeRadius
 thickness of the leg at the knee (estimated)

const double footRadius
 thickness of the leg at the foot (estimated)

const double motionCycleTime
const double imagesPerSecond
 Length of one motion cycle in seconds.

joint limits in rad (estimated)
const double jointLimitLeg1FN
const double jointLimitLeg1FP
const double jointLimitLeg1HN
const double jointLimitLeg1HP
const double jointLimitLeg2N
const double jointLimitLeg2P
const double jointLimitLeg3N
const double jointLimitLeg3P
const double jointLimitNeckTiltN
const double jointLimitNeckTiltP
const double jointLimitHeadPanN
const double jointLimitHeadPanP
const double jointLimitHeadTiltN
const double jointLimitHeadTiltP
const double jointLimitTailTiltN
const double jointLimitTailTiltP
const double jointLimitTailPanN
const double jointLimitTailPanP

Constructor & Destructor Documentation

RobotDimensions::RobotDimensions (  const double  distancePanCenterToCameraX,
const double  distancePanCenterToCameraZ,
const double  distanceCameraToPSDSensor,
const double  distanceNeckToPanCenter,
const double  shoulderWidth,
const double  bodyWidth,
const double  overallBodyWidth,
const double  upperLegLengthX,
const double  upperLegLengthZ,
const double  lowerForeLegLengthX,
const double  lowerForeLegLengthZ,
const double  lowerHindLegLengthX,
const double  lowerHindLegLengthZ,
const double  lengthBetweenLegs,
const double  neckToLegsLengthX,
const double  neckToLegsLengthZ,
const double  specsKneeArc,
const double  bodyLength,
const double  lowerBodyWidth,
const double  shoulderRadius,
const double  kneeRadius,
const double  footRadius,
const double  jointLimitLeg1FN,
const double  jointLimitLeg1FP,
const double  jointLimitLeg1HN,
const double  jointLimitLeg1HP,
const double  jointLimitLeg2N,
const double  jointLimitLeg2P,
const double  jointLimitLeg3N,
const double  jointLimitLeg3P,
const double  jointLimitNeckTiltN,
const double  jointLimitNeckTiltP,
const double  jointLimitHeadPanN,
const double  jointLimitHeadPanP,
const double  jointLimitHeadTiltN,
const double  jointLimitHeadTiltP,
const double  jointLimitTailTiltN,
const double  jointLimitTailTiltP,
const double  jointLimitTailPanN,
const double  jointLimitTailPanP,
const double  motionCycleTime,
const double  imagesPerSecond
)  [inline]


image frame rate of the camera in Hz.

Definition at line 80 of file RobotDimensions.h.

References lengthNeckToBodyCenter, lowerForeLegLength, lowerHindLegLength, upperLegLength, upperLegLengthY, zeroBodyTilt, zeroFrontKneeArc, zeroHindKneeArc, and zeroShoulderArc.

Member Data Documentation

const double RobotDimensions::distancePanCenterToCameraX


x-distance camera to center of head (specs)

Definition at line 17 of file RobotDimensions.h.

Referenced by Kinematics::calcNoseHeight(), Kinematics::calculateCameraMatrix(), and CheckerboardDetector::execute().

const double RobotDimensions::distancePanCenterToCameraZ


z-distance camera to center of head (specs)

Definition at line 18 of file RobotDimensions.h.

Referenced by Kinematics::calculateCameraMatrix().

const double RobotDimensions::distanceCameraToPSDSensor


z-distanse camera to PSDsensor (estimated?)

Definition at line 19 of file RobotDimensions.h.

const double RobotDimensions::distanceNeckToPanCenter


distance center of head to neck (specs)

Definition at line 20 of file RobotDimensions.h.

Referenced by Kinematics::calcHeadHeight(), and Kinematics::calculateCameraMatrix().

const double RobotDimensions::shoulderWidth


width between shoulder joints (specs)

Definition at line 22 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), RobotPoseSymbols::computeGoalieDefendMinPos(), and RobotPoseSymbols::updateGoalieDefendPosition().

const double RobotDimensions::bodyWidth


width between knee joints (specs)

Definition at line 23 of file RobotDimensions.h.

Referenced by RobotPoseSymbols::computeGoalieDefendMinPos(), RobotVertices::RobotVertices(), and Kinematics::transformToLegBase().

const double RobotDimensions::overallBodyWidth


overall width of the body including legs (specs)

Definition at line 24 of file RobotDimensions.h.

Referenced by Field::addPlayer().

const double RobotDimensions::upperLegLengthX


length upper leg joint to joint in x-direction (specs)

Definition at line 26 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), and RobotVertices::RobotVertices().

const double RobotDimensions::upperLegLengthY


length upper leg joint to joint in y-direction (calculated)

Definition at line 27 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), and RobotDimensions().

const double RobotDimensions::upperLegLengthZ


length upper leg joint to joint in z-direction (specs)

Definition at line 28 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::upperLegLength


length upper leg joint to joint (calculated)

Definition at line 29 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition(), Kinematics::kneePositionFromJoints(), Kinematics::legPositionFromJoints(), RobotDimensions(), and RobotVertices::RobotVertices().

const double RobotDimensions::lowerForeLegLengthX


length lower front leg joint to footbase in x-direction (specs)

Definition at line 30 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::lowerForeLegLengthZ


length lower front leg joint to footbase in z-direction (specs)

Definition at line 31 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::lowerForeLegLength


length lower front leg joint to footbase (calculated)

Definition at line 32 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), Kinematics::legPositionFromJoints(), RobotDimensions(), RobotVertices::RobotVertices(), and Kinematics::transformToLegBase().

const double RobotDimensions::lowerHindLegLengthX


length lower rear leg joint to footbase in x-direction (specs)

Definition at line 33 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::lowerHindLegLengthZ


length lower rear leg joint to footbase in z-direction (specs)

Definition at line 34 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::lowerHindLegLength


length lower rear leg joint to footbase (calculated)

Definition at line 35 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), Kinematics::legPositionFromJoints(), RobotDimensions(), RobotVertices::RobotVertices(), and Kinematics::transformToLegBase().

const double RobotDimensions::lengthBetweenLegs


length from front to rear legs (specs)

Definition at line 36 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), and RobotVertices::RobotVertices().

const double RobotDimensions::neckToLegsLengthZ


height from neck to front legs (specs)

Definition at line 37 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), and RobotVertices::RobotVertices().

const double RobotDimensions::neckToLegsLengthX


length from front legs to neck projected on x-axis (specs)

Definition at line 38 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices(), and RobotVertices::RobotVertices().

const double RobotDimensions::lengthNeckToBodyCenter


length from center of Robot to neck projected on x-axis (calculated)

Definition at line 39 of file RobotDimensions.h.

Referenced by Field::addPlayer(), and RobotDimensions().

const double RobotDimensions::zeroShoulderArc


arc resulting from upperLegLengthX and -Z (calculated)

Definition at line 41 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition(), Kinematics::kneePositionFromJoints(), Kinematics::legPositionFromJoints(), RobotDimensions(), and RobotVertices::RobotVertices().

const double RobotDimensions::specsKneeArc


knee arc lower leg lengths are based on (specs)

Definition at line 42 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::zeroFrontKneeArc


arc resulting from lowerForeLegLengthX and -Z (calculated)

Definition at line 43 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition(), Kinematics::legPositionFromJoints(), RobotDimensions(), and RobotVertices::RobotVertices().

const double RobotDimensions::zeroHindKneeArc


arc resulting from lowerHindLegLengthX and -Z (calculated)

Definition at line 44 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition(), Kinematics::legPositionFromJoints(), RobotDimensions(), and RobotVertices::RobotVertices().

const double RobotDimensions::zeroBodyTilt


body tilt when all joints are 0 (calculated)

Definition at line 45 of file RobotDimensions.h.

Referenced by Kinematics::getAbsoluteRobotVertices(), and RobotDimensions().

const double RobotDimensions::bodyLength


length of robot body (estimated)

Definition at line 47 of file RobotDimensions.h.

Referenced by Field::addPlayer().

const double RobotDimensions::lowerBodyWidth


width of body core at bottom (estimated),

Definition at line 48 of file RobotDimensions.h.

Referenced by BallPercept::checkOffset().

const double RobotDimensions::shoulderRadius


thickness of the body around the shoulder (estimated)

Definition at line 49 of file RobotDimensions.h.

Referenced by Kinematics::calcNeckAndLegPositions().

const double RobotDimensions::kneeRadius


thickness of the leg at the knee (estimated)

Definition at line 50 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::footRadius


thickness of the leg at the foot (estimated)

Definition at line 51 of file RobotDimensions.h.

Referenced by Kinematics::calcRelativeRobotVertices().

const double RobotDimensions::jointLimitLeg1FN


Definition at line 55 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitLeg1FP


Definition at line 56 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitLeg1HN


Definition at line 57 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitLeg1HP


Definition at line 58 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitLeg2N


Definition at line 59 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitLeg2P


Definition at line 60 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitLeg3N


Definition at line 61 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitLeg3P


Definition at line 62 of file RobotDimensions.h.

Referenced by Kinematics::jointsFromLegPosition().

const double RobotDimensions::jointLimitNeckTiltN


Definition at line 64 of file RobotDimensions.h.

Referenced by Kinematics::calcLowestPossibleTilt(), GT2004HeadControl::GT2004HeadControl(), and GT2004HeadPathPlanner::init().

const double RobotDimensions::jointLimitNeckTiltP


Definition at line 65 of file RobotDimensions.h.

Referenced by Kinematics::calcHighestPossibleTilt(), GT2004HeadControl::GT2004HeadControl(), and GT2004HeadPathPlanner::init().

const double RobotDimensions::jointLimitHeadPanN


Definition at line 66 of file RobotDimensions.h.

Referenced by GT2004HeadControl::GT2004HeadControl(), and GT2004HeadPathPlanner::init().

const double RobotDimensions::jointLimitHeadPanP


Definition at line 67 of file RobotDimensions.h.

Referenced by GT2004BasicBehaviorDirectedScanForLandmarks::execute(), GT2004HeadControl::GT2004HeadControl(), and GT2004HeadPathPlanner::init().

const double RobotDimensions::jointLimitHeadTiltN


Definition at line 68 of file RobotDimensions.h.

Referenced by Kinematics::calcAbsRollJoints(), Kinematics::calcHighestPossibleTilt(), GT2004HeadControl::GT2004HeadControl(), and GT2004HeadPathPlanner::init().

const double RobotDimensions::jointLimitHeadTiltP


Definition at line 69 of file RobotDimensions.h.

Referenced by Kinematics::calcAbsRollJoints(), Kinematics::calcLowestPossibleTilt(), GT2004HeadControl::GT2004HeadControl(), and GT2004HeadPathPlanner::init().

const double RobotDimensions::jointLimitTailTiltN


Definition at line 71 of file RobotDimensions.h.

const double RobotDimensions::jointLimitTailTiltP


Definition at line 72 of file RobotDimensions.h.

const double RobotDimensions::jointLimitTailPanN


Definition at line 73 of file RobotDimensions.h.

const double RobotDimensions::jointLimitTailPanP


Definition at line 74 of file RobotDimensions.h.

const double RobotDimensions::motionCycleTime


Definition at line 77 of file RobotDimensions.h.

Referenced by Geometry::calculateScaleFactor(), GT2004ImageProcessor::execute(), GT2004BallLocator::handleSeenBall(), and GT2003MotionNetSpecialActions::readOdometryTable().

const double RobotDimensions::imagesPerSecond


Length of one motion cycle in seconds.

Definition at line 78 of file RobotDimensions.h.

Referenced by Geometry::calculateScaleFactor().

The documentation for this class was generated from the following file:
Generated on Thu Sep 23 20:11:26 2004 for GT2004 by doxygen 1.3.6
