OutBinary Class Reference

Formats data binary to be used in streams. More...

#include <OutStreams.h>

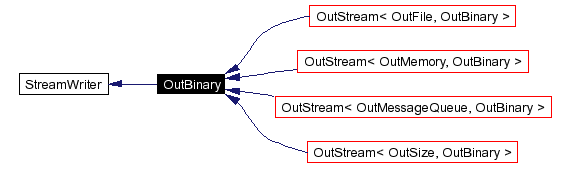

Inheritance diagram for OutBinary:

[legend]Collaboration diagram for OutBinary:

[legend]List of all members.

Protected Member Functions
virtual void	writeChar (char d, PhysicalOutStream &stream)
	Writes a character to a stream.
virtual void	writeUChar (unsigned char d, PhysicalOutStream &stream)
	Writes a unsigned character to a stream.
virtual void	writeShort (short d, PhysicalOutStream &stream)
	Writes a short to a stream.
virtual void	writeUShort (unsigned short d, PhysicalOutStream &stream)
	Writes a unsigned short to a stream.
virtual void	writeInt (int d, PhysicalOutStream &stream)
	Writes a int to a stream.
virtual void	writeUInt (unsigned int d, PhysicalOutStream &stream)
	Writes a unsigned int to a stream.
virtual void	writeLong (long d, PhysicalOutStream &stream)
	Writes a long to a stream.
virtual void	writeULong (unsigned long d, PhysicalOutStream &stream)
	Writes a unsigned long to a stream.
virtual void	writeFloat (float d, PhysicalOutStream &stream)
	Writes a float to a stream.
virtual void	writeDouble (double d, PhysicalOutStream &stream)
	Writes a double to a stream.
virtual void	writeString (const char *d, PhysicalOutStream &stream)
	Writes a string to a stream.
virtual void	writeEndL (PhysicalOutStream &stream)
	Writes a 'end of line' to a stream.
virtual void	writeData (const void *p, int size, PhysicalOutStream &stream)
	The function writes a number of bytes into the stream.

---

Detailed Description

Formats data binary to be used in streams.

The physical writing is then done by OutStream derivates.

Definition at line 239 of file OutStreams.h.

---

Member Function Documentation

virtual void OutBinary::writeChar (  char  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a character to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 247 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeUChar (  unsigned char  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a unsigned character to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 255 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeShort (  short  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a short to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 263 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeUShort (  unsigned short  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a unsigned short to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 271 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeInt (  int  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a int to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 279 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeUInt (  unsigned int  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a unsigned int to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 287 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeLong (  long  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a long to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 295 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeULong (  unsigned long  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a unsigned long to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 303 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeFloat (  float  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a float to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 311 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeDouble (  double  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a double to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 319 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeString (  const char *  d, PhysicalOutStream &  stream )  [inline, protected, virtual]

Writes a string to a stream. Parameters: d  the data to write. stream  the stream to write on. Implements StreamWriter. Definition at line 327 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

virtual void OutBinary::writeEndL (  PhysicalOutStream &  stream  )  [inline, protected, virtual]

Writes a 'end of line' to a stream. Parameters: stream  the stream to write on. Implements StreamWriter. Definition at line 334 of file OutStreams.h.

virtual void OutBinary::writeData (  const void *  p, int  size, PhysicalOutStream &  stream )  [inline, protected, virtual]

The function writes a number of bytes into the stream. Parameters: p  The address the data is located at. size  The number of bytes to be written. stream  the stream to write on. Implements StreamWriter. Definition at line 342 of file OutStreams.h. References PhysicalOutStream::writeToStream().

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• Tools/Streams/OutStreams.h

---
