Tools/Debugging/DebugImages.h File Reference

Macros to manipulate and send debug images. More...

#include "Tools/Debugging/Debugging.h"

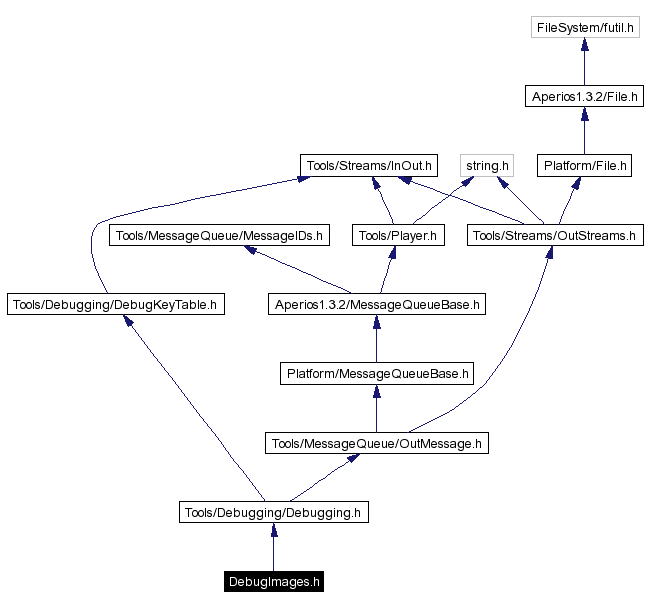

Include dependency graph for DebugImages.h:

Include dependency graph

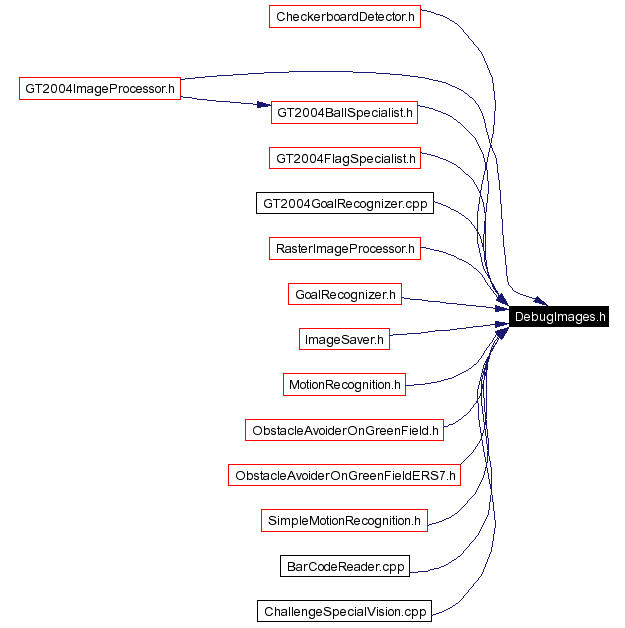

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Go to the source code of this file.

Classes

class  Images
 Contains IDs for different (debug) image types as well as a method to output their names. More...


Defines

#define DECLARE_DEBUG_COLOR_CLASS_IMAGE(id)   ColorClassImage id##ColorClassImage
 Declares a debug image.

#define SEND_DEBUG_COLOR_CLASS_IMAGE(id)   INFO(send_##id##_image, idDebugColorClassImage, bin, Images::id << id##ColorClassImage)
 Sends the debug image with the specified id (Images::ImageID).

#define DECLARE_DEBUG_IMAGE(id)   static bool id##Dummy
#define INIT_DEBUG_IMAGE(id, image)   /**/
#define GENERATE_DEBUG_IMAGE(id, expression)   /**/
#define SEND_DEBUG_IMAGE(id)   /**/
#define DEBUG_IMAGE_SET_PIXEL_Y(id, xx, yy, y)   /**/
#define DEBUG_IMAGE_SET_PIXEL_YUV(id, xx, yy, y, u, v)   /**/
#define DEBUG_IMAGE_SET_PIXEL_BLACK(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_WHITE(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_GREEN(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_GRAY(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_LIGHT_GRAY(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_DARK_GRAY(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_DARK_GREEN(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_ORANGE(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_YELLOW(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_RED(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_MAUVE(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_BLUE(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_PINK(id, xx, yy)   /**/
#define DEBUG_IMAGE_SET_PIXEL_DARK_BLUE(id, xx, yy)   /**/
#define DEBUG_IMAGE_GET_PIXEL_Y(id, xx, yy)   0
#define DEBUG_IMAGE_GET_PIXEL_U(id, xx, yy)   0
#define DEBUG_IMAGE_GET_PIXEL_V(id, xx, yy)   0

Detailed Description

Macros to manipulate and send debug images.

Author:
Matthias Jüngel

Definition in file DebugImages.h.

Define Documentation

#define DECLARE_DEBUG_COLOR_CLASS_IMAGE (  id   )     ColorClassImage id##ColorClassImage


Declares a debug image.

Parameters:
id An image id (Images::ImageID)

Definition at line 28 of file DebugImages.h.

#define SEND_DEBUG_COLOR_CLASS_IMAGE (  id   )     INFO(send_##id##_image, idDebugColorClassImage, bin, Images::id << id##ColorClassImage)


Sends the debug image with the specified id (Images::ImageID).

Definition at line 31 of file DebugImages.h.

Referenced by GT2004ImageProcessor::execute(), and RasterImageProcessor::init().

#define DECLARE_DEBUG_IMAGE (  id   )     static bool id##Dummy


Definition at line 135 of file DebugImages.h.

Referenced by BarCodeReader::execute().

#define INIT_DEBUG_IMAGE (  id,
image   )     /**/


Definition at line 137 of file DebugImages.h.

Referenced by MotionRecognition::drawDynamicDiff(), BarCodeReader::execute(), RasterImageProcessor::execute(), GT2004ImageProcessor::execute(), GT2004GoalRecognizer::execute(), CheckerboardDetector::execute(), GoalRecognizer::getGoalPercept(), and GT2004FlagSpecialist::init().

#define GENERATE_DEBUG_IMAGE (  id,
expression   )     /**/


Definition at line 139 of file DebugImages.h.

Referenced by GT2004ImageProcessor::execute(), and RasterImageProcessor::init().

#define SEND_DEBUG_IMAGE (  id   )     /**/


Definition at line 141 of file DebugImages.h.

Referenced by MotionRecognition::drawDynamicDiff(), BarCodeReader::execute(), GT2004ImageProcessor::execute(), GT2004GoalRecognizer::execute(), CheckerboardDetector::execute(), GT2004FlagSpecialist::getFlagPercept(), and GoalRecognizer::getGoalPercept().

#define DEBUG_IMAGE_SET_PIXEL_Y (  id,
xx,
yy,
y   )     /**/


Definition at line 143 of file DebugImages.h.

Referenced by CheckerboardDetector::execute(), and GT2004FlagSpecialist::findEndOfFlag().

#define DEBUG_IMAGE_SET_PIXEL_YUV (  id,
xx,
yy,
y,
u,
v   )     /**/


Definition at line 145 of file DebugImages.h.

#define DEBUG_IMAGE_SET_PIXEL_BLACK (  id,
xx,
yy   )     /**/


Definition at line 147 of file DebugImages.h.

Referenced by CheckerboardDetector::execute(), GT2004ImageProcessor::scan(), GoalRecognizer::scanHorizontalForGoals(), GT2004GoalRecognizer::scanHorizontalForGoals(), GoalRecognizer::scanLinesForGoals(), and GT2004GoalRecognizer::scanLinesForGoals().

#define DEBUG_IMAGE_SET_PIXEL_WHITE (  id,
xx,
yy   )     /**/


Definition at line 149 of file DebugImages.h.

Referenced by CheckerboardDetector::execute(), GoalRecognizer::scanHorizontalForGoals(), GT2004GoalRecognizer::scanHorizontalForGoals(), GoalRecognizer::scanLinesForGoals(), and GT2004GoalRecognizer::scanLinesForGoals().

#define DEBUG_IMAGE_SET_PIXEL_GREEN (  id,
xx,
yy   )     /**/


Definition at line 151 of file DebugImages.h.

Referenced by BarCodeReader::execute(), CheckerboardDetector::execute(), GT2004ImageProcessor::scan(), GoalRecognizer::scanLinesForGoals(), GT2004GoalRecognizer::scanLinesForGoals(), and GT2004FlagSpecialist::searchFlags().

#define DEBUG_IMAGE_SET_PIXEL_GRAY (  id,
xx,
yy   )     /**/


Definition at line 153 of file DebugImages.h.

Referenced by GoalRecognizer::scanHorizontalForGoals(), GT2004GoalRecognizer::scanHorizontalForGoals(), GoalRecognizer::scanLinesForGoals(), and GT2004GoalRecognizer::scanLinesForGoals().

#define DEBUG_IMAGE_SET_PIXEL_LIGHT_GRAY (  id,
xx,
yy   )     /**/


Definition at line 155 of file DebugImages.h.

#define DEBUG_IMAGE_SET_PIXEL_DARK_GRAY (  id,
xx,
yy   )     /**/


Definition at line 157 of file DebugImages.h.

#define DEBUG_IMAGE_SET_PIXEL_DARK_GREEN (  id,
xx,
yy   )     /**/


Definition at line 159 of file DebugImages.h.

#define DEBUG_IMAGE_SET_PIXEL_ORANGE (  id,
xx,
yy   )     /**/


Definition at line 161 of file DebugImages.h.

#define DEBUG_IMAGE_SET_PIXEL_YELLOW (  id,
xx,
yy   )     /**/


Definition at line 163 of file DebugImages.h.

Referenced by CheckerboardDetector::execute(), GT2004ImageProcessor::scan(), and GT2004FlagSpecialist::searchFlags().

#define DEBUG_IMAGE_SET_PIXEL_RED (  id,
xx,
yy   )     /**/


Definition at line 165 of file DebugImages.h.

Referenced by CheckerboardDetector::execute(), GT2004FlagSpecialist::findEndOfFlag(), CheckerboardDetector::getTransitionsOnLine(), GT2004ImageProcessor::scan(), GoalRecognizer::scanLinesForGoals(), GT2004GoalRecognizer::scanLinesForGoals(), and GT2004FlagSpecialist::searchFlags().

#define DEBUG_IMAGE_SET_PIXEL_MAUVE (  id,
xx,
yy   )     /**/


Definition at line 167 of file DebugImages.h.

#define DEBUG_IMAGE_SET_PIXEL_BLUE (  id,
xx,
yy   )     /**/


Definition at line 169 of file DebugImages.h.

Referenced by CheckerboardDetector::execute(), CheckerboardDetector::getTransitionsOnLine(), GoalRecognizer::scanLinesForGoals(), GT2004GoalRecognizer::scanLinesForGoals(), and GT2004FlagSpecialist::searchFlags().

#define DEBUG_IMAGE_SET_PIXEL_PINK (  id,
xx,
yy   )     /**/


Definition at line 171 of file DebugImages.h.

Referenced by GT2004ImageProcessor::scan(), GoalRecognizer::scanLinesForGoals(), and GT2004GoalRecognizer::scanLinesForGoals().

#define DEBUG_IMAGE_SET_PIXEL_DARK_BLUE (  id,
xx,
yy   )     /**/


Definition at line 173 of file DebugImages.h.

#define DEBUG_IMAGE_GET_PIXEL_Y (  id,
xx,
yy   )     0


Definition at line 175 of file DebugImages.h.

#define DEBUG_IMAGE_GET_PIXEL_U (  id,
xx,
yy   )     0


Definition at line 176 of file DebugImages.h.

#define DEBUG_IMAGE_GET_PIXEL_V (  id,
xx,
yy   )     0


Definition at line 177 of file DebugImages.h.
