The Instructions

In the following sections, a detailed description of all LLAMA instructions is given. The instructions are defined via a simple and uniform graphical representation which allows an easy re-implementation in any (functional or imperative) language.

Alternatively, the definitions could have been given using an imperative pseudo language as in

Even for slightly more complex instructions, this representation becomes unreadable. Therefore, diagrams of the following form are used:

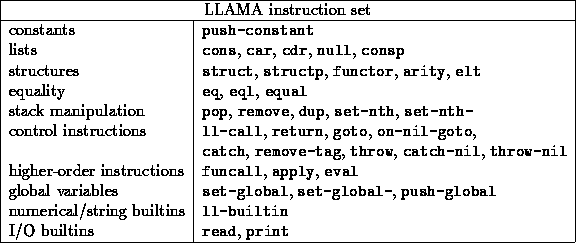

The LLAMA instruction set contains the following instructions:
